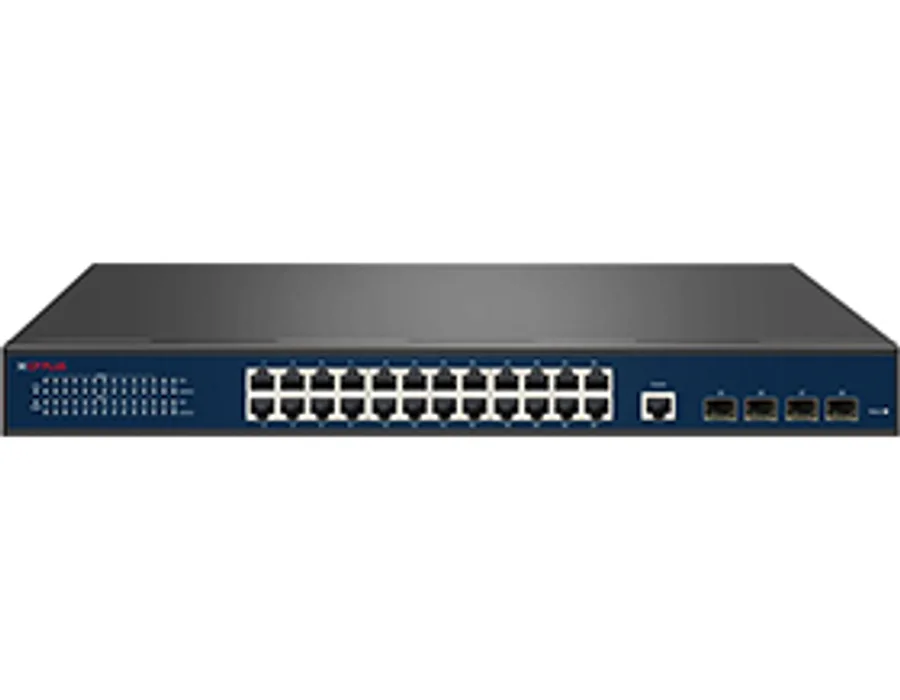

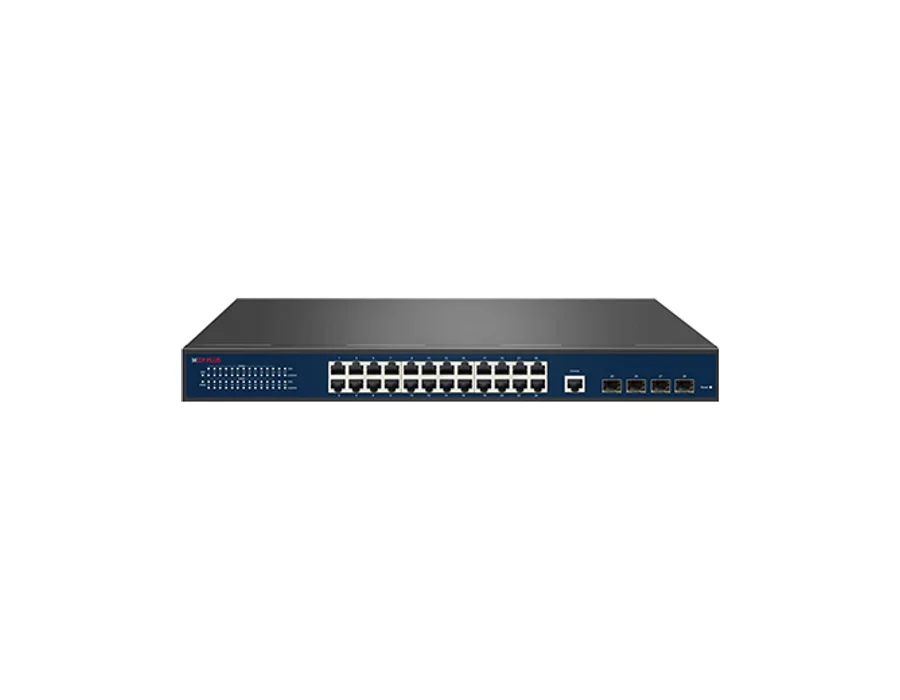

CP Plus CP-ANW-GPM24F4-N40-L3 – 24 Ports Gigabit Managed PoE Switch with 4 SFP Ports

24 Ports Gigabit Managed PoE Switch with 4 SFP Ports Features Supports IEEE 802.3i, 802.3u, 802.3ab, 802.3z, 802.3x , 802.3az, 802.3at, 802.3af. 24 × Gigabit PoE+ ports and 4 × SFP uplink ports for high-speed connectivity. Provides PoE output up to 30W per port with a total PoE power budget of 370W. Layer-3 managed switch with static routing (IPv4/1Pv6), support DHCP Server, Qos, ACL control, support SNMP V1/V2/V3, support IGMP Snooping v1/v2 128Gbps switching capacity with 95.232Mpps forwarding rate. Store-and-forward switching with 16K MAC table. Supports VLAN (802.1Q), QoS (8 queues), ACL (L2/L3/L4) and LACP (Link Aggregation Control Protocol). Equipped Advanced security including 802.1X, DHCP Snooping, IP Source Guard, DAI and DoS protection. Supports STP/RSTP/MSTP and ERPS for loop protection and redundancy. LED indicators available for power, PoE status, link and activity monitoring. 19-inch metal rack-mount design with internal AC power supply. Specifications Network Port: 24 x 10/100/1000Mbps RJ45 PoE Ports ; 4 x 10000Mbps SFP Ports ; 1x Console Port Network Medium: 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) ; 100Base-Tx: UTP category 5, 5e cable (maximum 100m) ; 1000Base-T: UTP category 5e, 6 cable (maximum 100m) ; 10GBase-R:MMF,SMF Switching Capacity: 128Gbps Packet Forwarding Rate: 95.232Mpps Packet Buffer Memory: 12Mbit MAC Address: 16K Jumbo Frame: 10K Bytes LEDs Indicator: Electrical port indicator, optical port indicator, power input indicator, System running ; indicator Transfer Method: Store-and-Forward Network Standard: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, ; IEEE 802.3ae (10G) PoE Standard: 802.3af/at PoE Pin Definition: 1/2(+), 3/6(-) Power Supply: AC100~240V 50/60Hz PoE Power: 370W Total power: 400W Operating Temperature: 0°C ~45°C (0°F~113°F) Operating Humidity: 10%~90% non-condensing Storage Temperature: 40°C ~70°C (-40°F ~158°F) Storage Humidity: 5%~95% non-condensing Dimension: 440 mm x 290 mm x 44.5 mm L2 Switching Features: 8K MAC Address Table ; 10K (10000) Jumbo Frame ; Flow Control - 802.3x (Full-duplex), Back-Pressure (Half-duplex) ; Spanning Tree - IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP)/16 instances, Auto ; Edge Port, BPDU Filtering, ERPS ; Link Aggregation- IEEE 802.3ad LACP, Static Trunk, Max 8 Group, Max 8 Ports/Group, Traffic ; Load Balancing L3 Switching Features: Static Routing - IPv4/IPv6, Address Resolution Protocol (ARP) - Static ARP VLAN: Surveillance VLAN - 16 OUI Mode (Auto/Manual) ; Voice VLAN - 16 OUI Mode (Auto/Manual) ; QinQ (IEEE 802.1ad) - Basic ; GARP VLAN Registration Protocol (GVRP) ; 4096 Static VLAN/Port-based ; IEEE 802.1Q Tagged-based , ; 8 groups Protocol-based, 256 MAC-based, Private VLAN Multicast: Common - 256 Multicast Groups, Immediate Leave, Static/ Forbidden Router Port, Static/ ; Forbidden Forward Port, 128 profiles Filtering, Throttling ; IGMP Snooping - IGMP v1/v2 ,IGMP v3 Basic (BISS) ,IGMP v2/v3 Querier ; MLD Snooping - MLD v1/v2 ; Multicast VLAN Registration (MVR) - IPv4 QoS: Trusted QoS/Priority 8 Queue ; Queue Scheduling - WRR, WFQ , Strict Pripority, Hybrid (WRR+SP or WFQ+SP) ; Class of Service - Port-based , 802.1p , IP TOS Precedence , IP DSCP ; Rate Limit - Port-based (Ingress/Egress) Access Control List (ACL): ACL Type - L2/L3/L4, 512 MAC-based, 512 IPv4-based, 512 IPv6-based ; PoE Function - Power, Current, Voltage, PoE Watch Dog, Access Rules - 1024 Security: AAA Authentication, 8 TACACS+, 8 RADIUS ; Authentication Manager- IEEE 802.1X, MAC Auth, Web Auth, Guest VLAN, Port-based, Host ; based ; Account Manager - Local Authentication, 8 Multiple User Account, Multi-Level Security ; (Manager/Operator), Password Recovery Procedures ; Management Access - Management VLAN, 256Management ACL ; SSL - SSLv2, SSLv3, TLSv1 ; WebUI - HTTPS ; CLI - SSH v1/v2 ; Port Security - 256 Dynamic Lock ; Storm Control - Broadcast, Unknown Multicast, Unknown Unicast ; Spanning Tree - BPDU Guard, Surge Protection ; Protected Port (Port Isolation), Black Hole MAC, CPU Defence Engine, DoS Prevention, DHCP ; Snooping (with Option 82), Dynamic ARP Inspection, 256 IP Source Guard, IP/MAC/Port ; Binding (IMPB), Dynamic VLAN Assignment IPv6: IPv6 Host - Auto Configuration, Static IPv6 Address and Prefix Length, Static IPv6 Default ; Gateway, IPv6 Neighbor Discovery (ND), IPv6 Duplicate Address Detection, ICMPv6 ; IPv6 Application - HTTP/HTTPS -, TELNET, SSH, SNMP, TFTP, Syslog, PING, DHCPv6 Management: CLI - 3 sessions Console , 3 sessions Telnet (RFC854) ; WebUI - HTTPS ; SNMP(v1,v2c,v3) ; File Management - Firmware Upgrade/Backup , Dual Images , Configuration Download/ Backup ,Multiple Configurations ; Upload/Download - TFTP (RFC783) ,HTTP , UART ; Time Management - Local - SNTP ; Port Management - Friendly Port Name (Port Description) ,Error Disabled Recovery ; Line Management - Console , Telnet (RFC854) , SSH v1/v2 ; DHCP - Client , ; DNS - Client, ; Software Reset Button, ; IEEE (802.3az), ; 32 entries/ Type RMON Management, ; RMON Discovery: IEEE 802.1AB Link Layer Discovery Protocol (LLDP), ; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED) Diagnostics: UDLD, ; Mirroring - 4 sessions port-based (Many to One), ; Syslog (RFC3164) - Local RAM - Local Flash - 8 Remote Server, ; System Diagnostics-CPU Utilization-Memory Utilization-Port Utilization-Technical Support Log, ; Port Diagnostics - Cable Test - Fiber Module Status, ; Network Diagnostics - Ping Test - Tracerout, ; Loop Detection, ; Cable Diagnostics MIB: RFC1213 MIBII (System & Interface groups), ; RFC2819 RMON I (1,2,3, & 9 groups), ; RFC1215 Generic Traps, ; RFC1493 Bridge, ; RFC2674 Bridge MIB Extensions, ; RFC2737 Entity , ; RFC3635 Ethernet-Like, ; RFC2863 Interface Group, ; SNMP-Community-MIB, ; SNMPv3-MIB Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE
