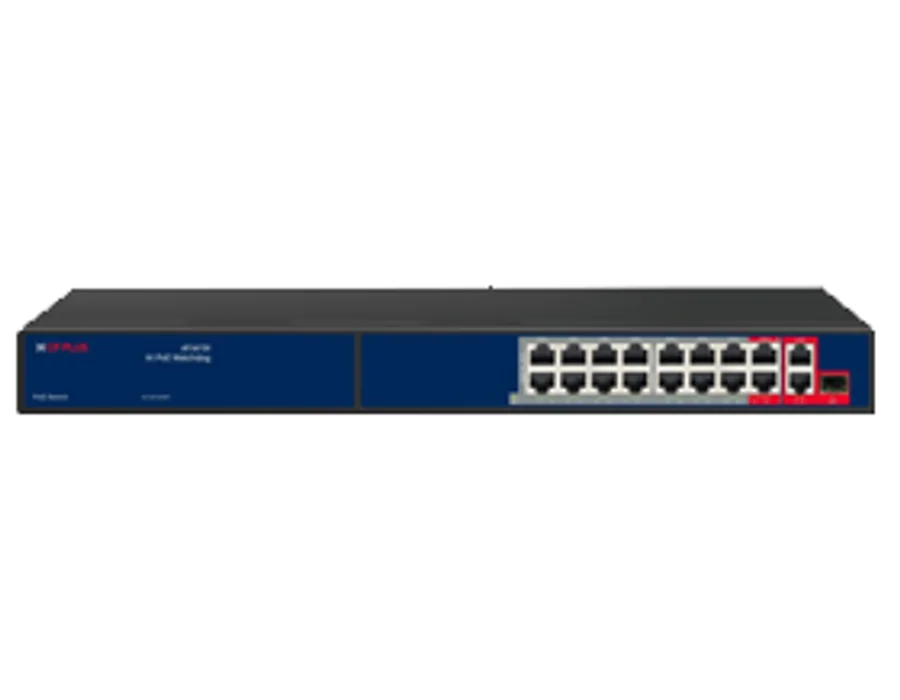

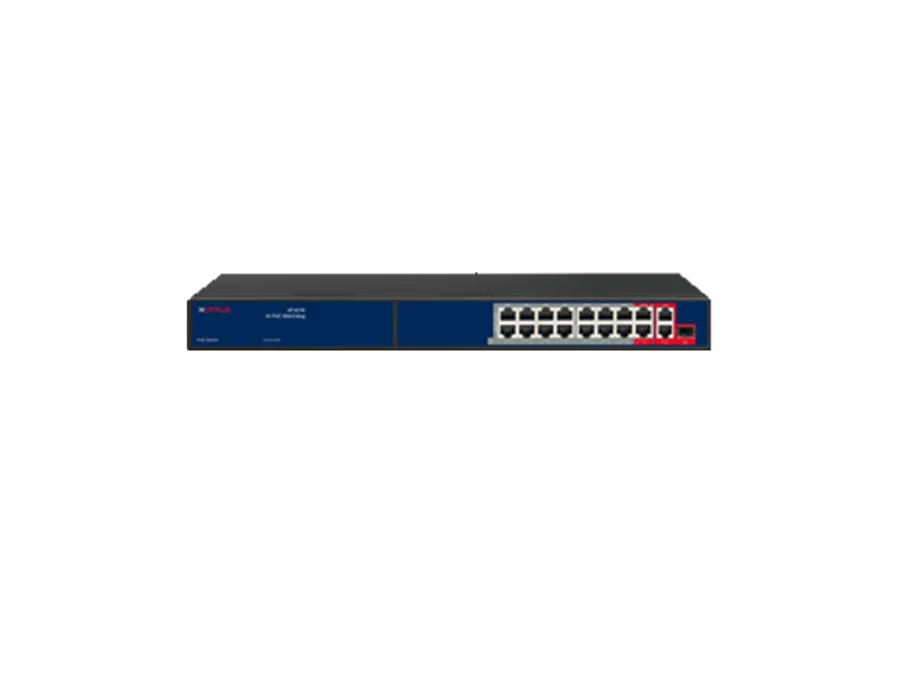

CP Plus CP-ANW-HP16G2F1-N30 – 16 Ports Unmanaged PoE Switch with 2 Gigabit Uplink & SPF Ports

16 Ports Unmanaged PoE Switch with 2 Gigabit Uplink & SPF Ports Features 16× RJ45 (10/100 Mbps) ports, 1–14 PoE, 15–16 high-power PoE (60W support), 2× Uplink RJ45 ports (10/100/1000 Mbps), 1 SFP ports. Extended transmission mode up to 250m at 10 Mbps (1-15 Ports). Networking standard: IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x (Flow control), IEEE 802.3af/at/bt (PoE support). PoE Power Budget: 300W (Max 30W/60W per port). Easy and safe installation: plug-and-play, desktop design. Specifications Network Port: 19 Ports PoE Ports: 1-14 Ports: 10/100Mbps PoE ports (RJ45), ; 15 Ports: 10/100Mbps PoE ports Support bt 60W High Power, ; 16 Ports: 10/100/1000Mbps PoE port (RJ45), Support bt 60W High Power Uplink Ports: 2, 10/100/1000Mbps uplink ports (RJ45); 1, 10/100/1000Mbps SFP port Network Standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow ; Control, IEEE 802.3af/at/bt Power over Ethernet Bandwidth: 11.0Gbps Network Latency: ≤16μs (use the 64byte package size) Packet Forwarding Rate: 8.2Mbps MAC Address Table: 8K AI Watchdog: Support Transmission Rate: 1000Mbps: Full Duplex Only; 10/100Mbps: Full Duplex / Half Duplex Transmission Distance: Port1~15: 10/100Mbps 130meters; 10Mbps Auto-adaption 250meters, ; Port16: 10/100/1000Mbps 130meters Power Source: Built-in Power Supply ; Input: AC 100~240V Total≤300W ; Output: PoE 1~14 Port:1/2(+52V),3/6(GND)≤30W ; PoE 15~16 Port:1245(+52V), 3678(GND) Compatible1/2(+52V),3/6(GND)≤60W Protection: ESD Protection:8KV Lightning Protection:6KV Operating Temperature: -30°C ~60°C Operating Humidity: 10%~90% Non-condensing Storage Temperature: -40°C~70°C Storage Humidity: 5%~90% Non-condensing Dimensions: 440mm x 180mm x 45mm Weight: 2650g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
