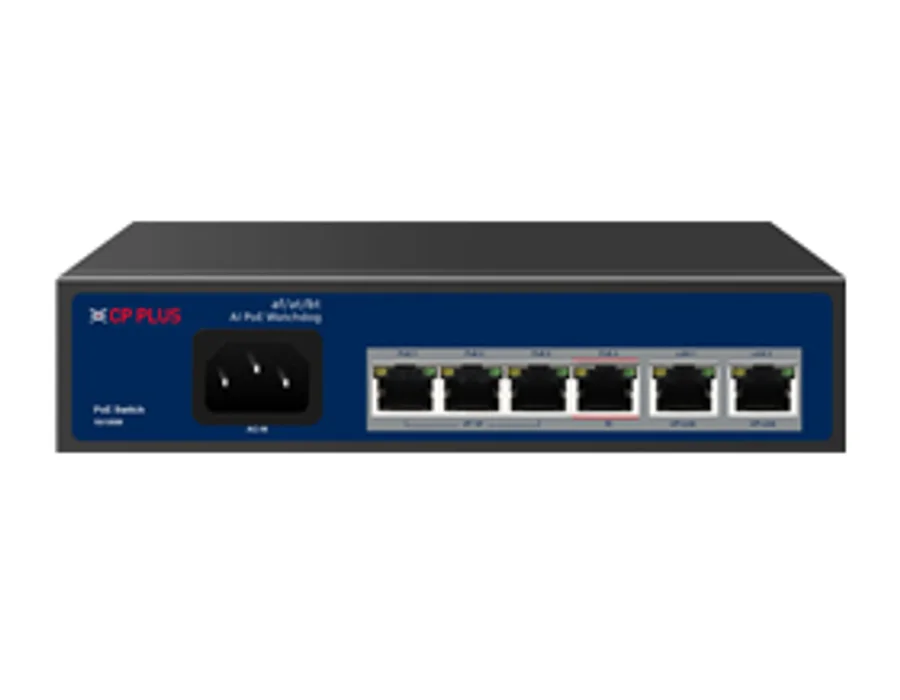

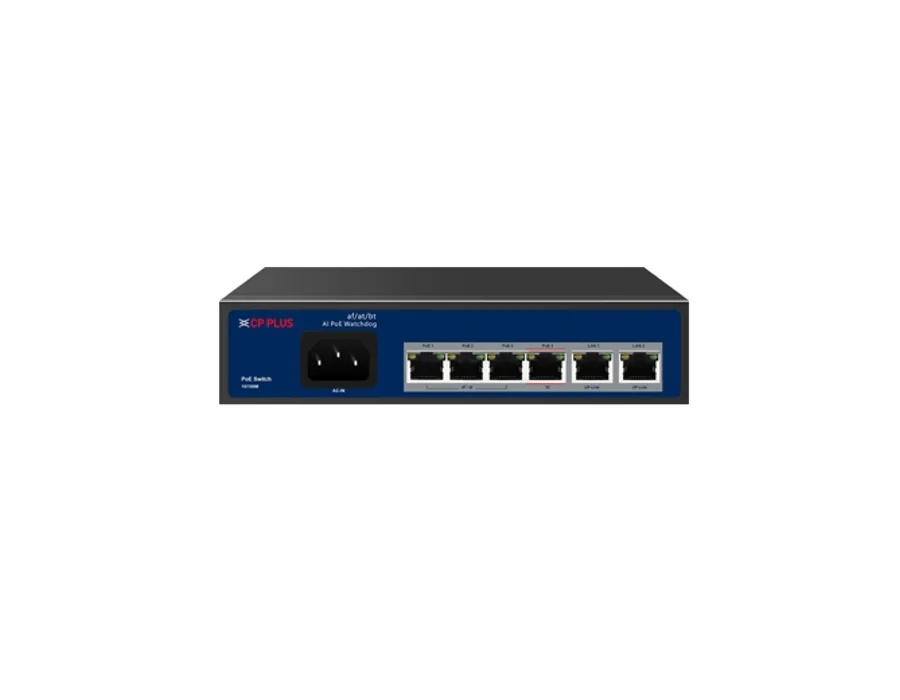

CP Plus CP-ANW-HP4H2-N65 – 4 Ports Unmanaged PoE Switch with 2 Uplink Ports

4 Ports Unmanaged PoE Switch with 2 Uplink Ports Features 4× RJ45 (10/100 Mbps) PoE ports (1–3 up to 30W, 4 up to 60W), 2× Uplink RJ45 ports (10/100 Mbps). Extended transmission mode up to 250m at 10 Mbps. Networking standard: IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3x (Flow control), IEEE 802.3af/at/bt (PoE support). PoE Power Budget: 65W (Max 30W/60W per port). Easy and safe installation: plug-and-play, desktop design. Specifications Network Port: 6 Ports PoE Ports: 1-3 Ports: 10/100Mbps PoE ports (RJ45); ; 4 Port: 10/100Mbps PoE ports (RJ45), Support bt 60W High Power Uplink Ports: 2, 10/100Mbps uplink ports (RJ45) Network Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt ; Power over Ethernet Bandwidth: 1.2Gbps Network Latency: ≤16μs (use the 64byte package size) Packet Forwarding Rate: 0.9Mpps MAC Address Table: 2K AI Watchdog: Support Transmission Rate: 10/100Mbps: Full Duplex / Half Duplex Transmission Distance: 250m Power Source: Built-in Power Supply ; Input: AC 90~240V Total≤65W ; Output: PoE 1~3 Port:1/2(+52V),3/6(GND)≤30W ; PoE 4 Port: 1245(+52V), 3678(GND) Compatible1/2(+52V),3/6(GND)≤60W Protection: ESD Protection: 8KV ; Lightning Protection: 6KV Operating Temperature: -30°C ~60°C Operating Humidity: 10%~90% non-condensing Storage Temperature: -40°C~70°C Storage Humidity: 5%~90% Non-condensing Dimension: 190mm x 140mm x 43mm Weight: 1000g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
