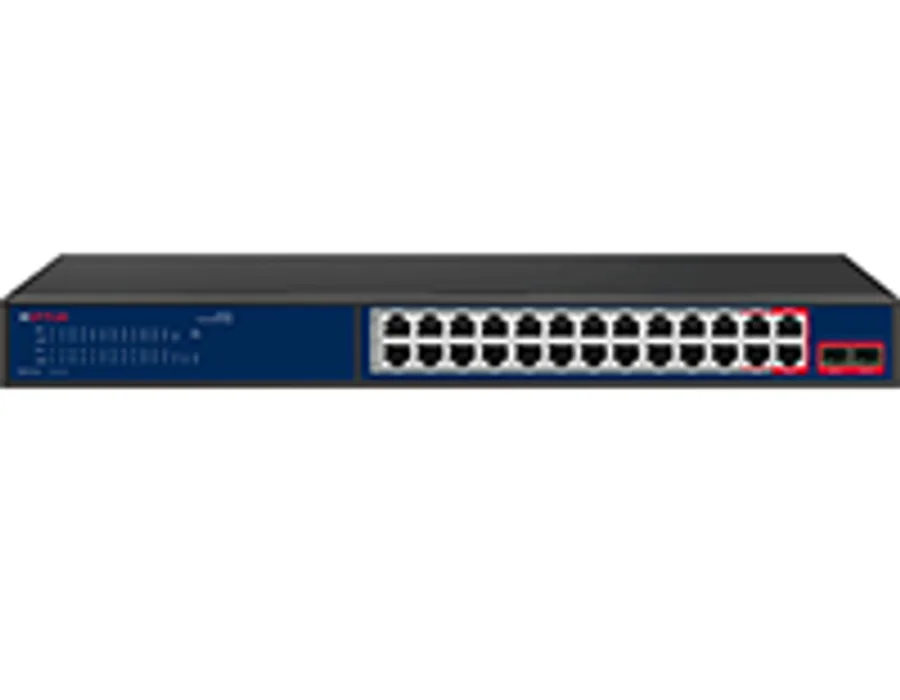

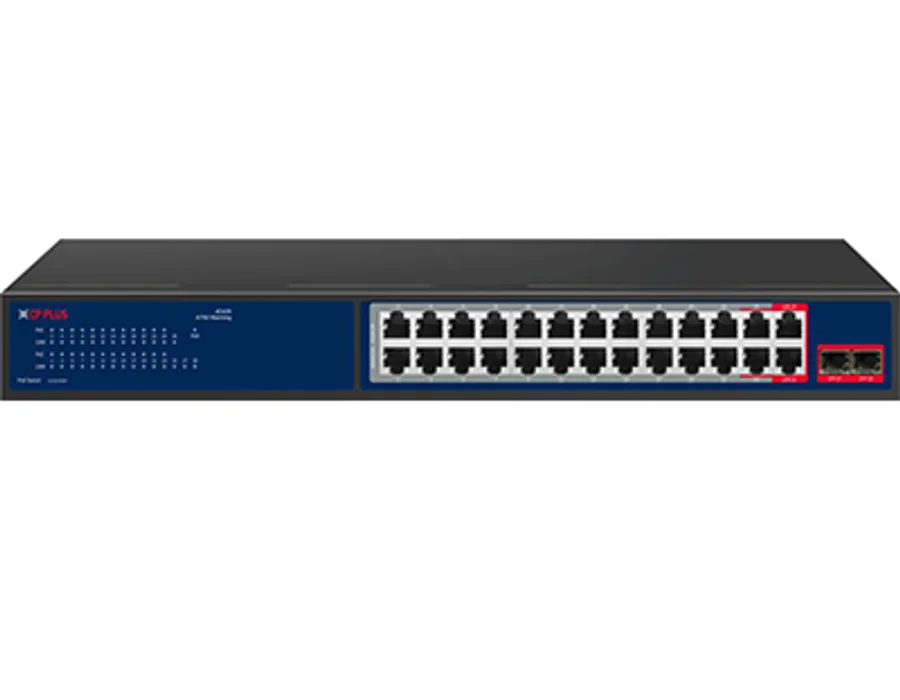

CP Plus CP-ANW-HPU24G2F2-N30 – 24 Ports Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SPF Ports

24 Ports Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SPF Ports Features 24 × RJ-45 10/100 Mbps (PoE) Ports, 2 × RJ-45 Gigabit (Uplink) Ports, 2 × SFP Uplink Ports. Extended transmission mode up to 250m at 10 Mbps . Networking standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet. PoE Power Budget: 300W (Max 30W/60W per port). Switching Capacity: 12.8 Gbps. Easy and safe installation: plug-and-play, desktop design. Specifications Network Port: 28 Ports PoE Ports: 1-22 Ports: 10/100Mbps PoE ports (RJ45); ; 23-24 Ports: 10/100Mbps PoE ports, Support bt 60W High Power Uplink Ports: 2, 10/100/1000Mbps, RJ45 uplink Ports; 2, 10/100/1000Mbps SFP uplink Ports Network Standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow ; Control, IEEE 802.3af/at/bt Power over Ethernet Bandwidth: 12.8Gbps Network Latency: ≤16μs (use the 64byte package size) MAC Address Table: 8K VLAN: Support AI Watchdog: Support Transmission Rate: 2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half Duplex ; The Frame Filter & Transmission Rate: 14800pps the most ; for 10M port, 148800pps the most for 100M port;1488000pps the most for 1000M port Transmission Distance: 100Mbps /10Mbps, Auto-Adaption 250m Power Source: Built-in Power Supply ; Input: AC 90~240V Total≤300W ; Output: PoE 1~22 Port:1/2(+52V), 3/6(GND)≤30W, ; PoE 23~24 Port:1245(+52V), 3678(GND) Compatible1/2(+52V), 3/6(GND)≤60W Protection: ESD Protection:8KV ; Lightning Protection:6KV Operating Temperature: -30°C ~60°C Operating Humidity: 10%~90% Non-condensing Storage Temperature: -40°C~70°C Storage Humidity: 5%~90% Non-condensing Dimension: 440mm x 180mm x 45mm Weight: 2650g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE
