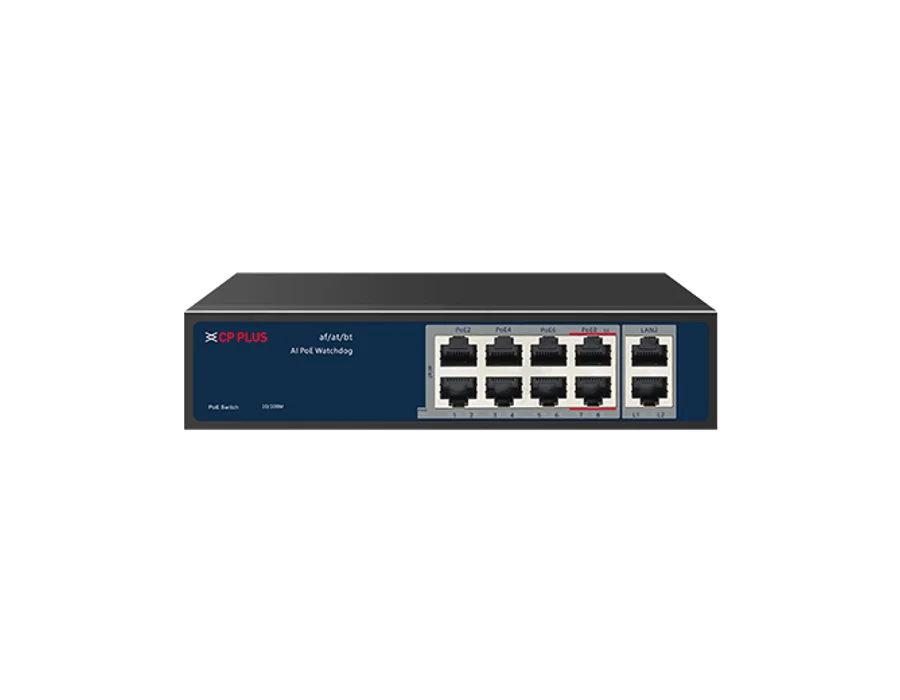

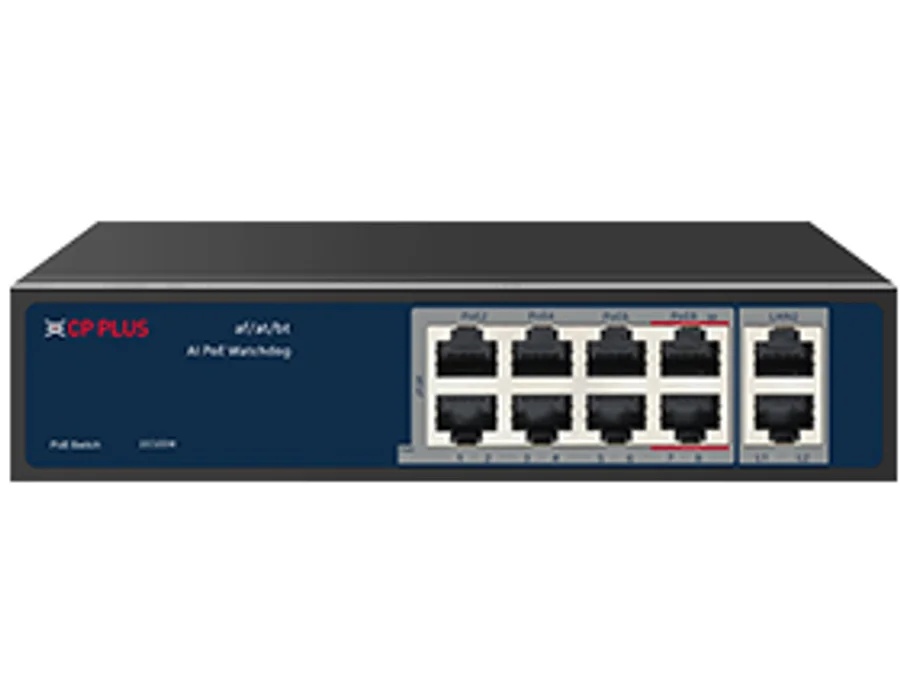

CP Plus CP-ANW-HPU8H2-N12 – 8 Ports Unmanaged PoE Switch with 2 Uplink Ports

8 Ports Unmanaged PoE Switch with 2 Uplink Ports Features 8× RJ45 (10/100 Mbps) ports, 1–6 PoE/ 7–8 high-power PoE (60W support), 2× Uplink RJ45 ports (10/100 Mbps) Transmission up to 130m Networking standard: IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3x (Flow control), IEEE 802.3af/at/bt (PoE support). PoE Power Budget: 120W (Max 30W/60W per port). Easy and safe installation: plug-and-play, desktop design. Specifications Network Port: 10 Ports PoE Ports: 1-6 Ports: 10/100Mbps PoE ports (RJ45); ; 7-8 Ports: 10/100Mbps PoE ports (RJ45),Support bt 60W High Power Uplink Ports: 2, 10/100Mbps uplink ports (RJ45) Network Standard: IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt ; Power over Ethernet Bandwidth: 2.0Gbps Network Latency: ≤16μs (use the 64byte package size) Packet Forwarding Rate: 1.5Mbps MAC Address Table: 2K AI Watchdog: Support Transmission Rate: 10/100Mbps: Full Duplex / Half Duplex Transmission Distance: 130m Power Source: Built-in Power Supply ; Input: AC 90~240V Total≤120W ; Output: PoE 1~6 Port:1/2(+52V),3/6(GND)≤30W ; PoE 7~8 Port:1245(+52V), 3678(GND) Compatible1/2(+52V),3/6(GND)≤60W Protection: ESD Protection:8KV ; Lightning Protection:6KV Operating Temperature: -30°C ~60°C Operating Humidity: 10%~90% Non-condensing Storage Temperature: -40°C~70°C Storage Humidity: 5%~90% Non-condensing Dimension: 190mm x 140mm x 43mm Weight: 1000g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
