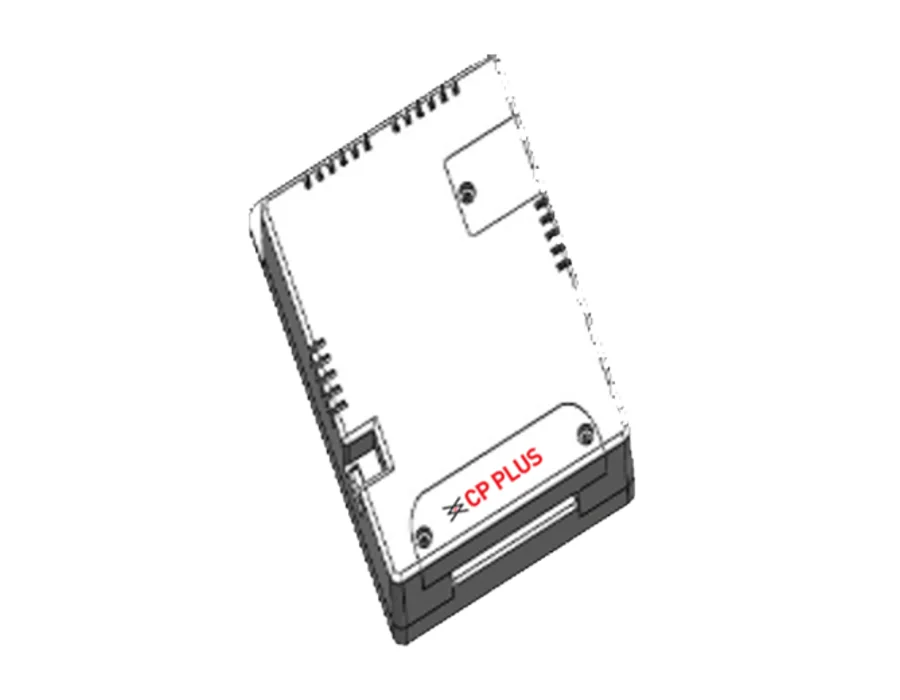

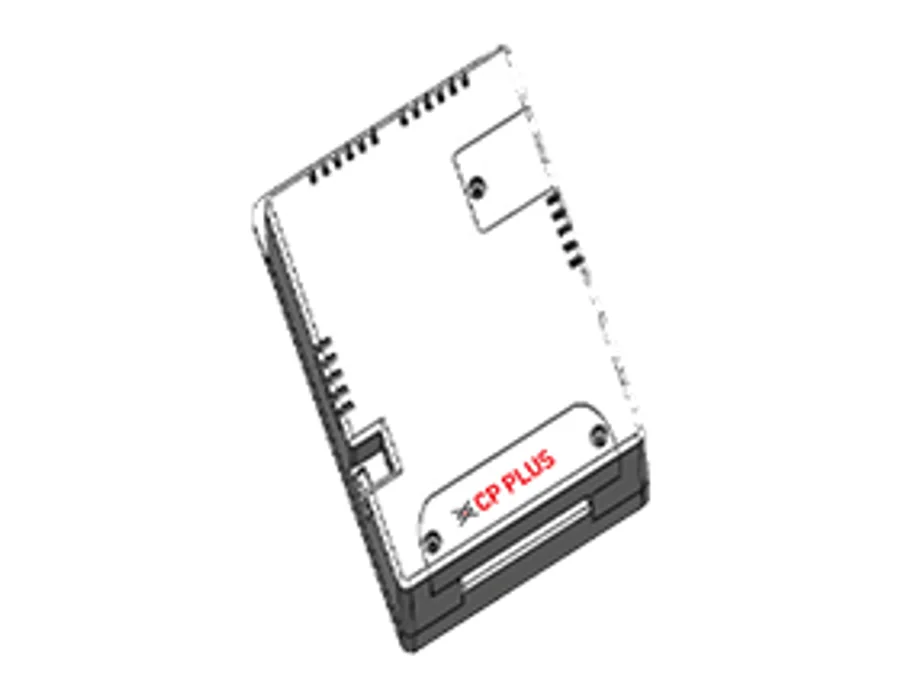

CP Plus CP-CPS-PD08-12D – 8 Ch. Power Supply

8 Ch. Power Supply Features Universal AC Input/ Full Range LED Indicator For Power on For Output Long Distance Voltage Drop Adjustment with Cable Compensation Switch Low Ripple Voltage, Low Energy Consumption with High Efficiency Stabilize Output with Low Interference Specifications Input AC Voltage Range: 170V~250V AC Input AC Voltage Rated: 220-240V AC AC Current (Typ.): 2A@90VAC Rated Power: 72W Inrush Current (Typ.): COLD START 40A@230V AC Leakage Current: < 2mA@230VAC Efficiency (Typ.): ≥ 85% Frequency Range: 50Hz Output DC No Load Rated Voltage: 12-12.5V, 14V-14.5V, 15-15.5V Output DC On Load Rated Voltage: 11.2-12.6V, 13.2-14.2V, 14.2-15.2V Output DC Current Range: 0-5A, 0-4.25A, 0-4A DC Power (Pout) Max: 60W, 60W, 60W Ripple & Noise (max.): <240mV, <270mV, <300mV Load Efficiency: 85%, 86%, 86% Setup Start up Time: < 2S@230VAC Line Regulation: ±2% Load Regulation: ±2% Lead Cable Compensation: <3% OF DC NO LOAD VOLTAGE Over Voltage Protection: Support Over Current Protection: YES, 110%-150%OF RATED CURRENT DC Short Circuit: YES With Auto Restart Function Over Temperature: Hiccup Mode, recovers automatically after faults removed Safety Standard: IEC-60950-1-2005/IS-13252(PART-1):2010 Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:1.5KVAC, O/P-FG:1.5KVAC Isolation Resistance: I/P-O/P, I/P-FG,O/P-FG:100Mohm/500VDC Production Isolation: CLASS-II IP Protection: IP20 EMC Immunity: SURGE SUSCEPTIBILITY IEC-61000-4-5 L TO N AND N TO L, LEVEL-3 , 3KV/ 2 ohm, (0°/90°/270°) ±5 TIMES ESD, IEC-61000-4-2 LEVEL3 8KV AIR, LEVEL 2 4KV CONTACT Working temperature: 0 to +40°C Working Humidity: 10% ~ 95%RH Case Temperature: ≤70°C Dimension: 165mm x 115mm x 35mm Body Type: PC-FR-4 Weight: 245gm
