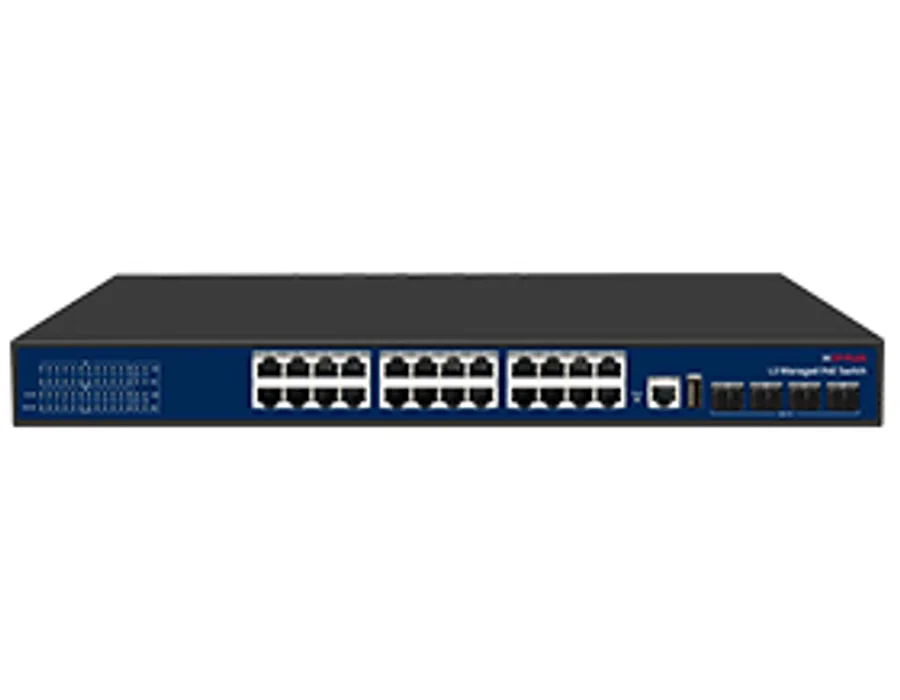

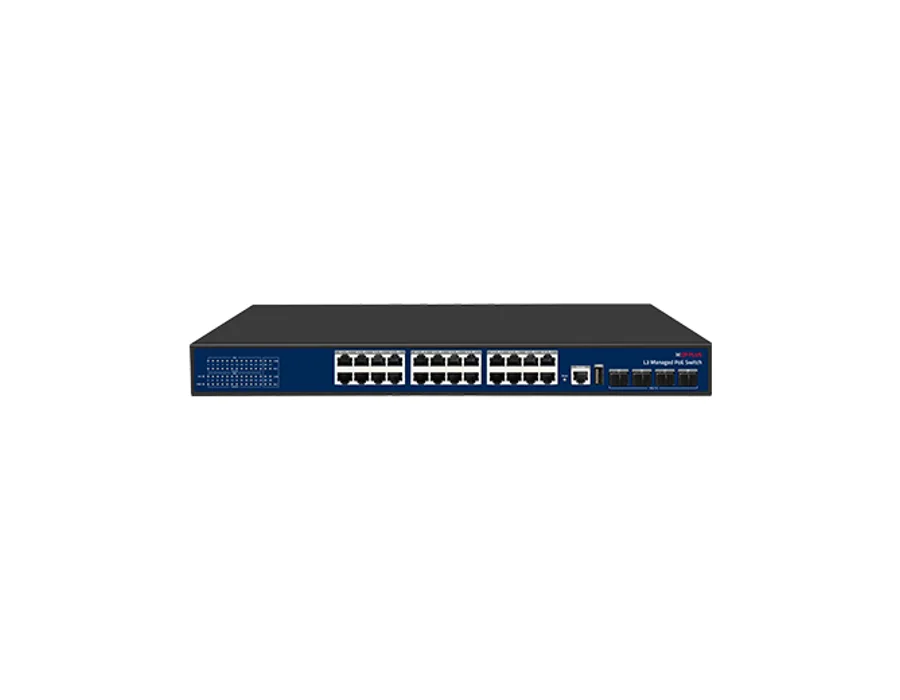

CP Plus CP-DNW-GPM24F4-40-L3 – 24 Ports Gigabit Managed PoE Switch with 4 SFP Ports

24 Ports Gigabit Managed PoE Switch with 4 SFP Ports Features Supports IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard . 24 × Gigabit PoE+ ports and 4 x SFP uplink Ports for high-speed connectivity. Provides PoE output up to 30W per port with a total PoE power budget of 390W. Layer-3 managed switch with static routing (IPv4/1Pv6),OSPF, RIP v1/v2, support DHCP Server, Qos, ACL control, support SNMP V1/V2/V3, support IGMP Snooping v1/v2 128Gbps switching capacity with 95.232Mpps forwarding rate. Store-and-forward switching with 16K MAC table. Supports VLAN (802.1Q), QoS (8 queues), ACL (L2/L3/L4) and LACP (Link Aggregation Control Protocol). Supports STP/RSTP/MSTP for loop protection and redundancy. LED indicators available for power, PoE status, link and activity monitoring. 19-inch metal rack-mount design with internal AC power supply. Specifications Network Port: 24x 10/100/1000Mbps RJ45 PoE Ports 4x 10G SFP Ports 1x Console Port 1x USB Port Network Medium: 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um Industry Standard: EMI: FCC Part 15 CISPR (EN55032) Class A EMS: EN61000-4-2 (ESD) Switching Capacity: 128Gbps Packet Forwarding Rate: 95.23Mpps Packet Buffer Memory: 12Mbit MAC Address: 16K Jumbo Frame: 12Kbytes LEDs Indicator: Per Device: Power, System; Per Port: Link/Activity, POE indicator Network Standard: IEEE 802.1ab, IEEE 802.1d, IEEE 802.1w, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad PoE Standard: 802.3af/at PoE Pin Definition: 1/2(+),3/6(-) Power Supply: 100-240VAC, 50/60Hz PoE Power Budget: 390W Operating Temperature: -10~50°C (14 ~ 122°F) Operating Humidity: 10%~90%，non-condensing Storage Temperature: -40~70°C (-40 ~ 158°F) Storage Humidity: 5%~90%，non-condensing Dimensions: 440mm x 280mm x 44mm Basic Function: Support hardware watchdog, factory reset, system and port LED Support global information, statistical information, log information Support User management, alarm management, configuration management Support Port rate, duplex, flow control, max frame length configuration Support Port mirroring, port speed limit, port energy saving Layer 3 interface: Support three-layer interface Support IPv4, IPv6 address configuration Support ARP configuration Support ND configuration Layer 3 routing: Support IPv4 static routing Support IPv6 static routing Support RIP V1/V2 Support OSPF VLAN: Support 4K VLAN Support 802.1Q VLAN, port-based VLAN Support Access, Trunk, Hybrid VLAN mode Support GVRP (VLAN Registration Protocol) Support MAC VLAN, IP VLAN Support Voice VLANN Multicast: Support IGMP v1/v2/v3 Snooping Support MLD v1/v2 Snooping Support Layer 2 multicast fast leave mechanism, querier Support Layer 2 IPv4 static multicast Support Layer 2 IPv6 static multicast Support IGMP v1/v2/v3 Layer 3 multicast QoS: Support 8 port queues Support Port priority, 802.1P priority, DSCP priority Support SP, WRR Priority scheduling algorithm Access Control List (ACL): Support L2(Layer 2)~L4(Layer 4) Packet filtering function Support Port mirroring, flow rate limiting, QoS remarking Security: Password protection Support Restrict user access based on port number, IP address, MAC address Support HTTPS, SSH V1/V2 Support VLAN-IP-MAC-PORT binding Support ARP detection, IP source protection, DoS protection Support DHCP Snooping, DHCP Attack protection Support 802.1X certification Support AAA (Authentication, Authorisation, Accounting), Support RADIUS+ Support Port security, port isolation IPv6: Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet Support IPv6 SSH Support IPv6 HTTP, IPv6 HTTPS Management: Support WEB Management (HTTP, HTTPS) Support CLI (Telnet, SSH V1/V2, Local serial port) Support SNMP V1/V2/V3 Support RMON V2 Support LLDP Device discovery Support SNTP Time synchronization Support CPU Monitoring, Memory Monitoring Support System log, classification warning Support Ping, Traceroute detection, cable detection DHCP: Support DHCP server Support DHCP relay Support DHCP Snooping Spanning Tree: Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) & MSTP(IEEE 802.1s) protocol Support Multi-instance, Support Aggregate interface Support BPDU Protection MAC Address List: Support MAC address automatic learning and aging Support Static, dynamic, filtered address table Ring Protection: Support Ring protection Storm Suppression: Support multicast suppression Support broadcast storm suppression Support unknown uni-cast suppression Link Aggregation: Support Static Aggregation Support LACP Dynamic Aggregation Support based on IP, MAC, mixed load-balancing modes Maximum support 8 aggregation groups (8 ports per aggregation group)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
