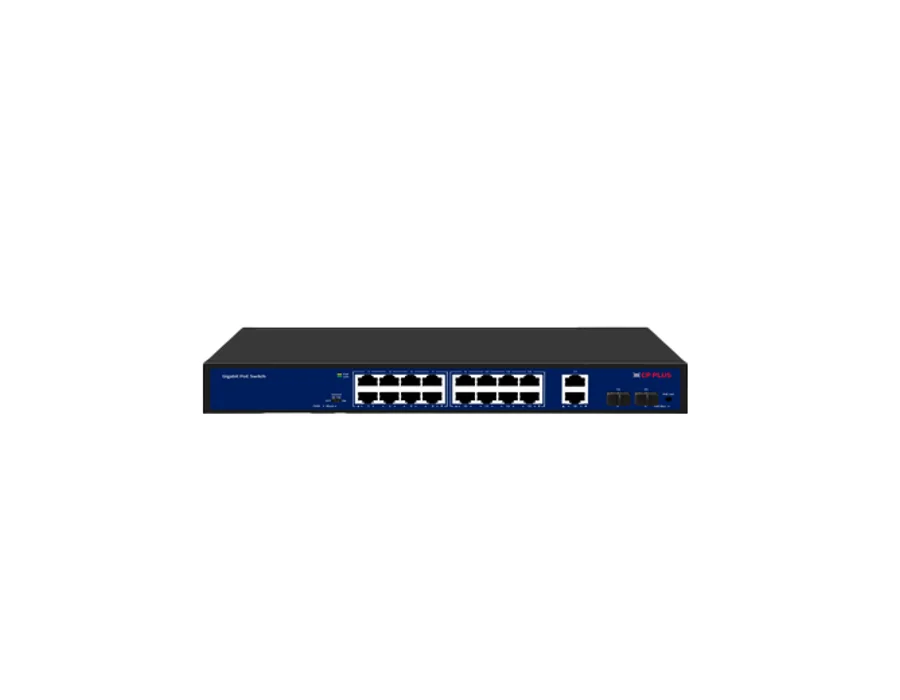

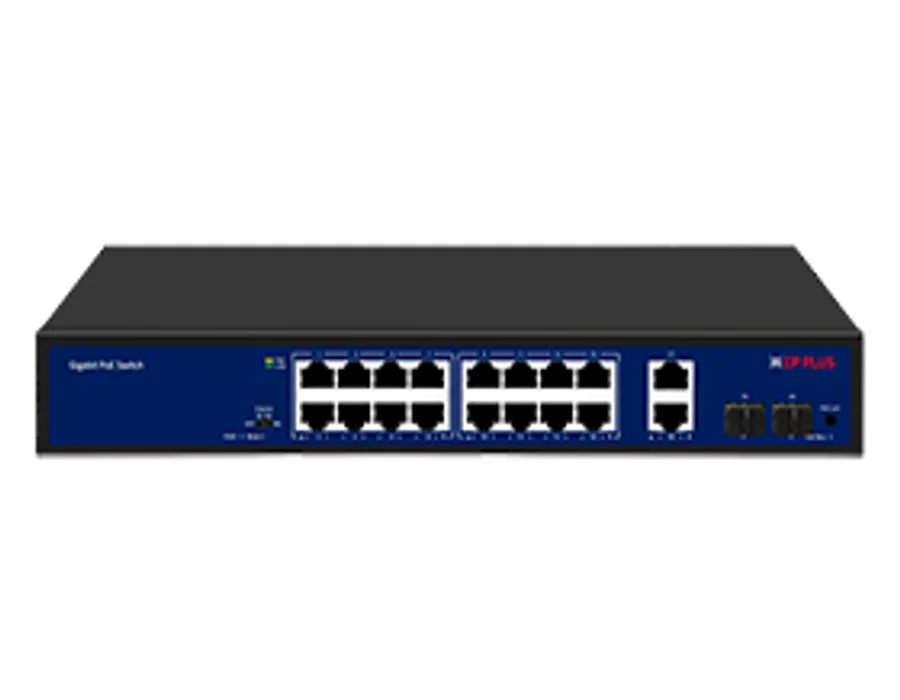

CP Plus CP-DNW-GPU16G2F2-20 – 16 Port Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SFP Ports

16 Port Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink & 2 SFP Ports Features 16 × RJ-45 10/100/1000 Mbps (PoE) Ports, 2 × RJ-45 Gigabit (Uplink) Ports, 2 × Gigabit SFP Uplink Ports. Extended transmission mode up to 250m at 10 Mbps (Ports 9–16). Networking standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x. PoE Power Budget: 200W (Max 30W per port). Switching Capacity: 40 Gbps (Full-duplex). Easy and safe installation: plug-and-play, desktop design. Specifications Network Port: 20 Ports PoE Ports: 16, 10/100/1000Mbps, RJ45 ports, Max. 30W Output of Single PoE Port Uplink Ports: 2, 1000Mbps RJ45 ports & 2 Gigabit SFP ports Network Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE802.3x Power Indicator: Light on: Powering ; Light off: No Power Mode Indicator: Light off: Normal mode ; Flash: Extend mode 1-20 Indicator (Link & Data): Green light off: Link is disconnected ; Green light on: Link is connected ; Green light flash: Data Transmitting 1-16 Indicator (PoE): Yellow light off: PoE not powering ; Yellow light on: PoE powering PoE Max Indicator: Light off: Indicates PoE power usage is less than 90% ; Light flash: Indicates PoE power usage 90%≤P≤95% ; Light on: Indicates PoE power usage 95%<P<100% PoE Led Button: It is used to switch whether the 1-16 indicator lights indicate the Link/Data status or the PoE ; status, Default indicates Link/Data status Extend Switch: OFF: All ports can communicate with each other, the transmission rate is 10/100/1000Mbps ; adaptive, and the watchdog function is turned off ; ON: 9-16 ports can extend the transmission distance of the network cable to Max. 250 meters, ; the transmission rate becomes 10Mbps, and the watchdog function is turned on Switch Capacity: 40Gbps Full duplex Packet Forwarding Rate: 29.76Mpps Packet Buffer: 3Mb Forwarding Mode: Store-and-forward MAC Address Table: 8K Watchdog: Support PoE Standard: IEEE802.3af, IEEE802.3at PoE Power Supply: 1/2(+), 3/6(-) Transmission Distance: 0-100m/1000Mbps or Port 9-16 Max. 250m/10Mbps via Cat.5e or more under Extend mode PoE Feature: All ports support MDI/MDIX Power Source: Built-in Power Supply ; Input: 110-240V AC, 50/60Hz PoE Power Budget: 200W Power Consumption: <5W ESD: Air discharge: 8KV ; Contact discharge: 6KV Surge Protection: Common mode/RJ45 port: 4KV ; Differential mode/RJ45 port: 2KV ; Common mode/Power board: 4KV ; Differential mode/Power board: 2KV Operating Temperature: -10°C ~50°C Operating Humidity: 10%-95%, Non-condensing Storage Temperature: -40°C~70°C Dimensions: 320mm x 207mm x 44mm Weight: 1780g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE
