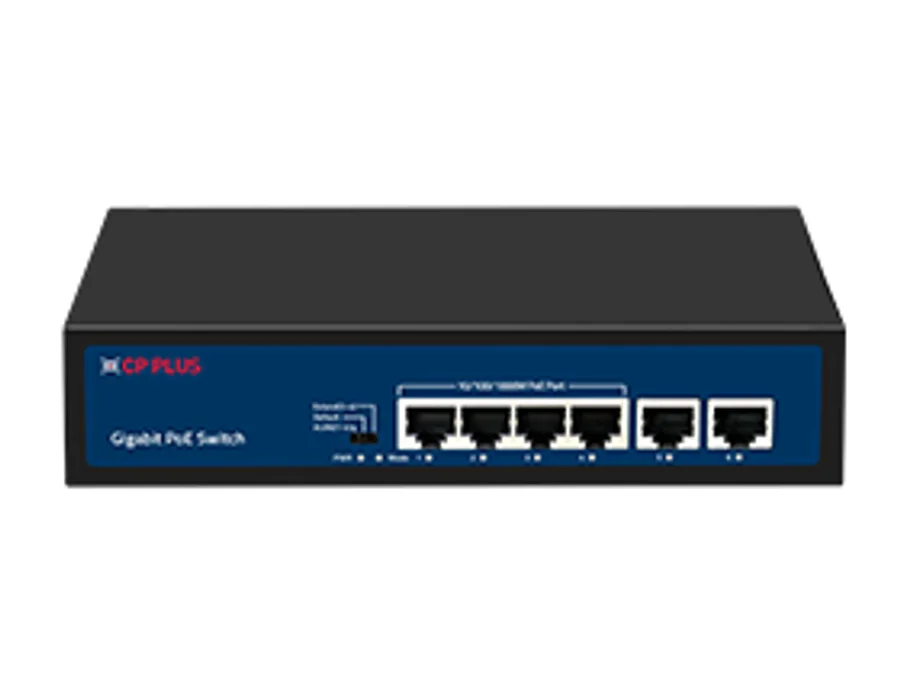

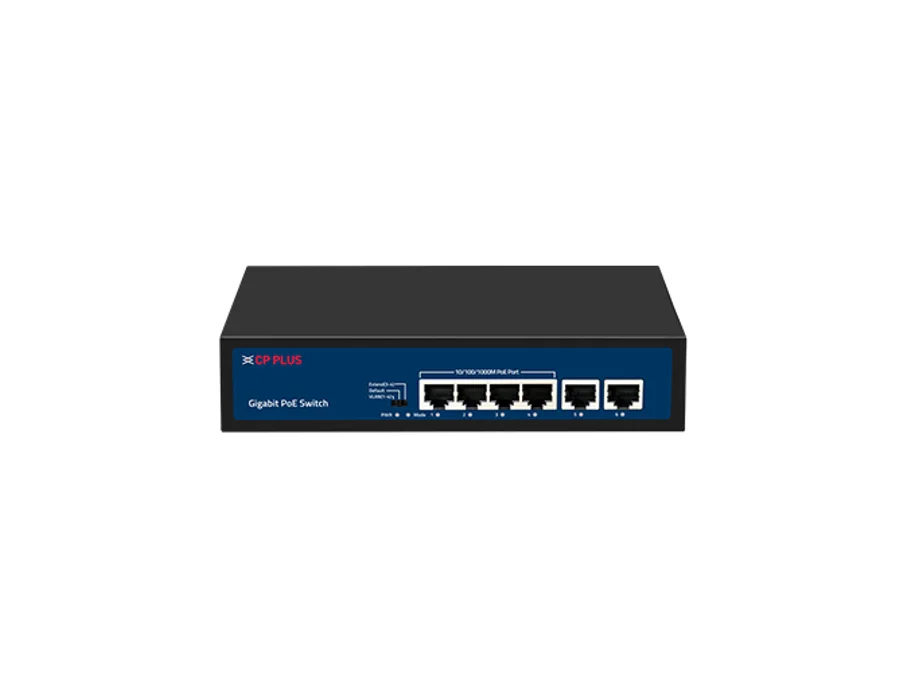

CP Plus CP-DNW-GPU4G2P-48 – 4 Ports Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink Ports

4 Ports Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink Ports Features 4 × RJ-45 10/100/1000 Mbps (PoE) Ports, 2 × RJ-45 10/100/1000 Mbps Gigabit (Uplink) Ports Extended transmission mode up to 250m at 10 Mbps. Networking standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x. PoE Power Budget: 48W (Max 30W per port). Switching Capacity: 12 Gbps (Full-duplex). Easy and safe installation: plug-and-play, desktop design. Specifications Network Port: 6 Ports PoE Ports: 4, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port ; Transmission distance:0~100m or 0~250m selected by switch Uplink Ports: 2, 1000Mbps; Transmission Distance: Default: 0-100m Network Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE802.3x Power Indicator: Light on: Powering ; Light off: No Power DIP switch indicator: Green light off: Normal/Default mode ; Green light on: VLAN mode ; Green light flash: Extend mode RJ-45 ACT Indicator: Green light off: Link is disconnected ; Green light on: Link is connected ; Green light flash: Data Transmitting Switch Capacity: 12Gbps Full duplex Packet Forwarding Rate: 1.488Mpps/port Packet Buffer: 1Mb Forwarding Mode: Store-and-forward MAC Address Table: 2K VLAN: Support Watchdog: Support PoE Standard: IEEE802.3af, IEEE802.3at PoE Power Supply: 1/2(+),3/6(-) Transmission Distance: 0-100m/1000Mbps or Port 3-4 Max. 250m/10Mbps via Cat.5e or more under Extend mode PoE Feature: All ports support MDI/MDIX Power Source: Bult-in Power Supply ; Input: 100-240VAC, 50/60Hz PoE Power Budget: 48W Power Consumption: <5W ESD Tolerance: Air discharge: 15KV ; Contact discharge: 8KV Surge Protection: Common mode: 6KV ; Differential mode/PoE : 6KV ; Differential mode/Signal: 6KV Surge Protection Power Supply: Common mode: 6KV ; Differential mode: 2KV Operating Temperature: -10°C~50°C Operating Humidity: 10%-90% , non-condensing Storage Temperature: -40°C~70°C Dimensions: 200mm x 118mm x 44mm Weight: 560g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC and RoHS, TEC/ MTCTE

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
