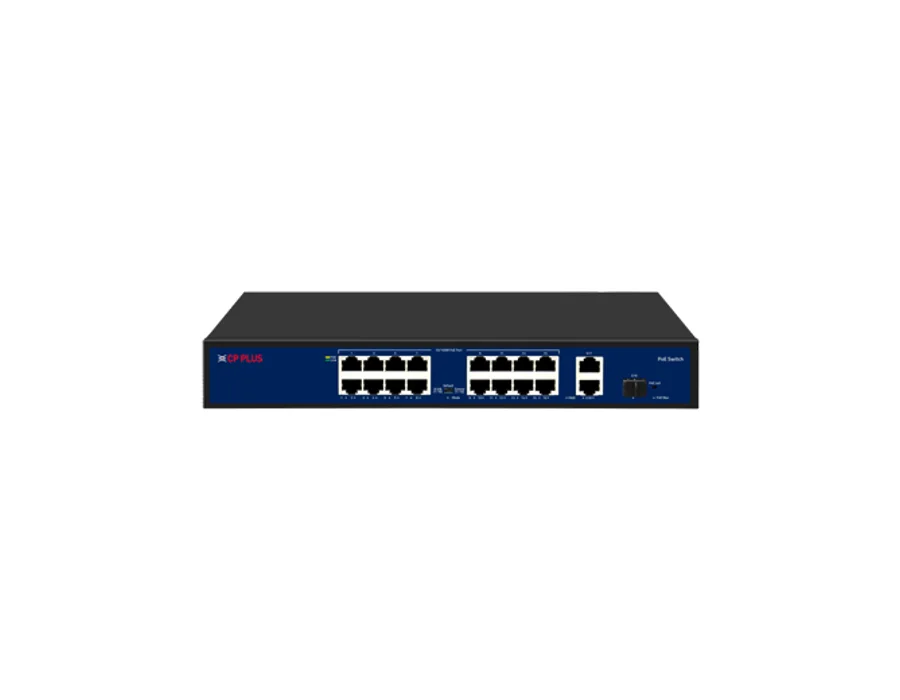

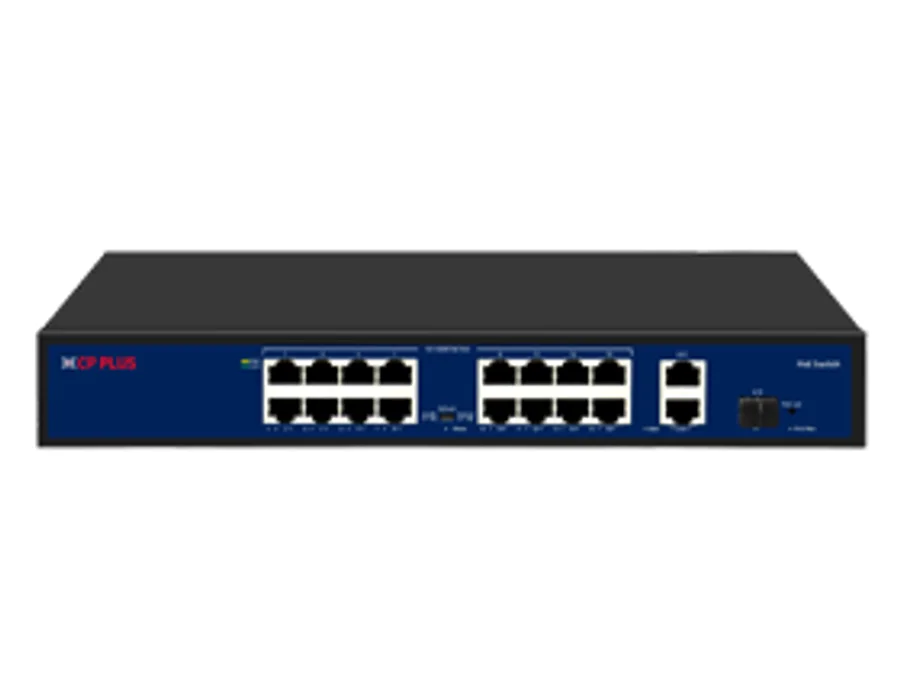

CP Plus CP-DNW-HPU16G2F1-20 – 19 Ports Switch with 16 PoE Ports & 2 Gigabit + 1 SFP Port

19 Ports Switch with 16 PoE Ports & 2 Gigabit + 1 SFP Port Features 16, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port IEEE802.3/802.3u/802.3ab/802.3z/802.3x 1000Mbps or Max. 250m/10Mbps;Transmission Distance: 0-100m Easy and safe installation: wall-mounting, desktop,Kensington security slot, Plug-and-play. Support ESD and Surge Protection Specifications Uplink Ports: 2 Ports 1000Mbps RJ45 uplink ports + 1 Port 1000Mbps SFP port Network Standard: IEEE802.3/802.3u/802.3ab/802.3z/802.3x Switch Capacity: 92 Gbps Full duplex Packet Forwarding Rate: IEEE802.3/802.3u/802.3ab/802.3z/802.3x PoE Ports: 16, 10/100Mbps; RJ45 ports; Max. 30W Output of Single PoE Port Network Port: 19 Transmission Distance: 0-100Mtr./1000Mbps or Max. 250Mtr./10Mbps via Cat.5e or more under Extend mode MAC Address List: 4K PoE Standard: IEEE802.3af, IEEE802.3at Packet Buffer: 1.5Mb Backplane Bandwidth: 5.6Gbps CCTV Mode: Downlink ports only communicate with uplink ports , Restrain network storm under 2Mbps , Extend transmission distance to 250m , Rate:10Mbps(Downlink Ports) Data Package Cache: 2. 75Mb Downlink Ports: 8x10/100/1000Base-T Ethernet Ports(PoE) ESD: Contact Discharge 6KV , Air Discharge Level 8KV , Standard: IEC61000-4-2 ESD Protection: Contact discharge 6K, Air discharge 8KV, Per: IEC61000-4-2 Ethernet Port Light: 2pcs(Yellow&Green) on RJ45 yellow indicates PoE, green indicates Link Act Exchange Capacity: storage&Fowarding Exchange Type: Storage & Fowarding LED light: Red means recording, yellow means audio recording, Green means standby. Lightning Protection: 6KV Per: IEC6 1 000-4-5 PoE Power Budget: 12W PoE Power Supply: 1/2(+),3/6(-) Port Parameter Rate: 1~8 Downlink Ethernet port:10/100Mbps , 9~10uplink Ethernet port:10/100/1000Mbps Power Light: 1x Red LED Single Port Power Output& Voltage: single Port PoE Power Output=30W, Voltage 54VDC Surge Immunity: 6KV Surveillance Module Light: 1pc(Green), green indicates CCTV Switch Capacity: 20Gbps Transmission Distance: 100m(Max.) Uplink Ports: 1x 10/100/1000Base-TEthernet Ports & 1x 1000Base-X SFP Port

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
