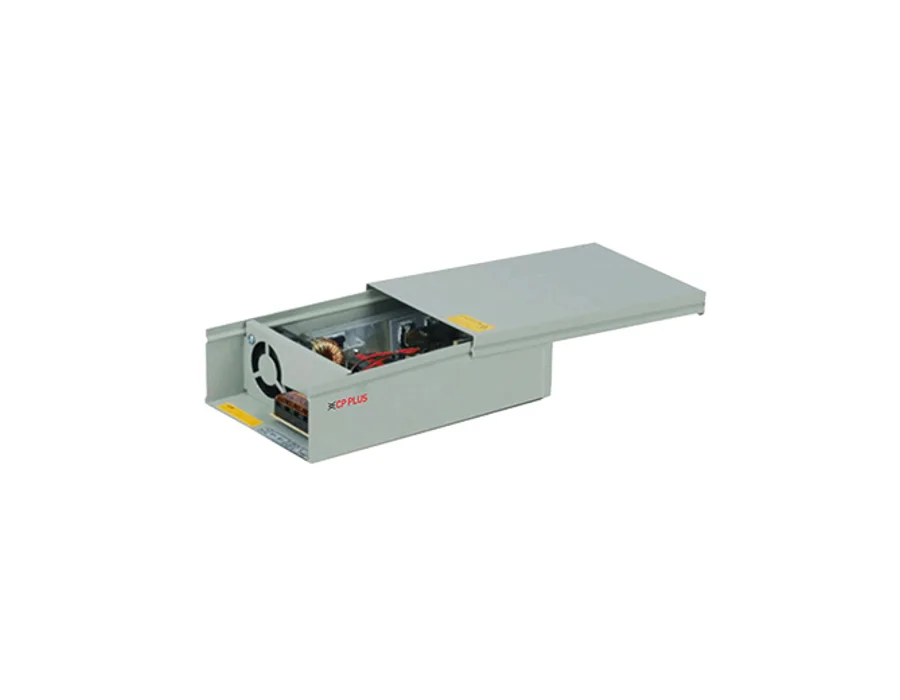

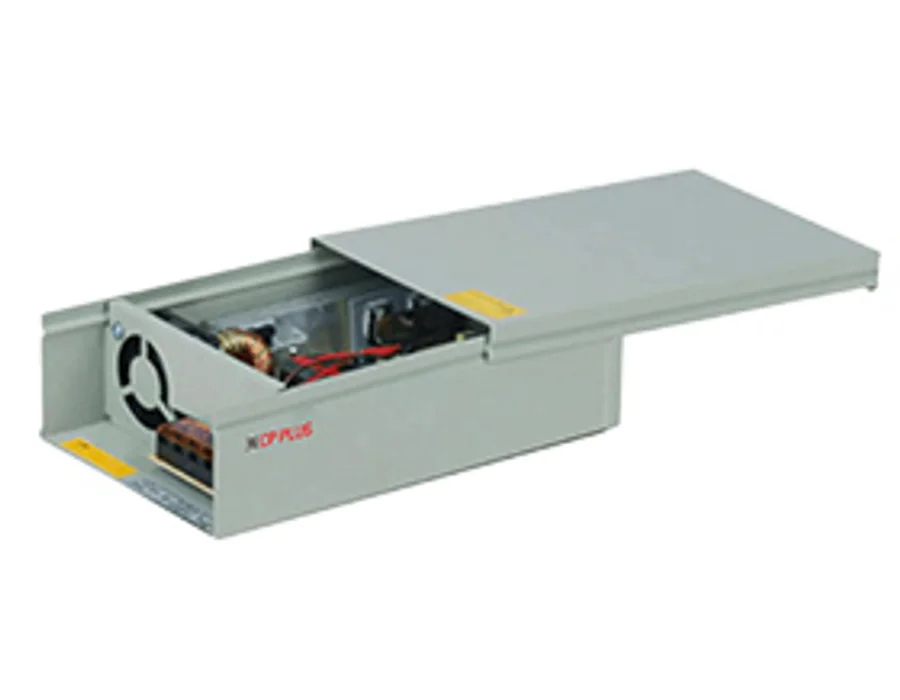

CP Plus CP-DPS-MD200P-12D – Metal Case Power Supply (Premium Series)

Metal Case Power Supply (Premium Series) Features Wide range of Input voltage 190~250V AC Add more cameras with higher power budget 12V, 20A Built-in EMI filter to nullify interference Voltage regulator switch for voltage adjustment Protections: Overload / Over Voltage / Short Circuit Metal Housing for uniform/quick heat dissipation Specifications Input voltage: 190~250V AC Output voltage: 12V DC Current Range: 0~20A Rated Power: 240W Ripple & Noise (max.): 100mVp-p Voltage Adj. Range: 11.4~13.2V Line Regulation: ±1.0% Voltage Tolerance: ±2.0% Setup Rise time: 600ms, 30ms at full load Hold Up Time (Typ.): 13ms at full load Load Regulation: ±5.0% Temperature coefficient: ±0.03%/°C (0~50°C) Frequency Range: 47~63HZ Efficiency (Typ.): 84% AC Current (Typ.): 5A/115VAC 3A/230VAC Inrush Current (Typ.): 20A/115VAC 40A/230VAC Leakage Current: <2mA / 240VAC Over Load: 110~200% rated output power, Protection type: Shut down O/P, re-power Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH Working Humidity: 20~90% RH Non-condensing Vibration: 10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X, Y, Z axes Dimension: 196(L) x 114(W) x 55mm(H) Store temperature: -20~+85°C, 10~95%RH Working temperature: -20~+40°C Withstand Voltage: I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
