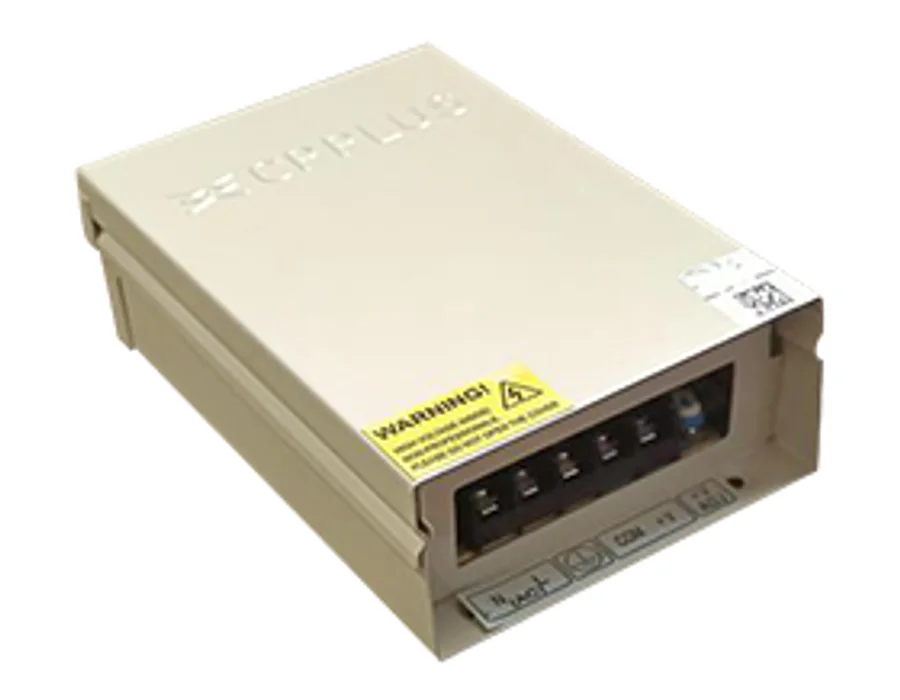

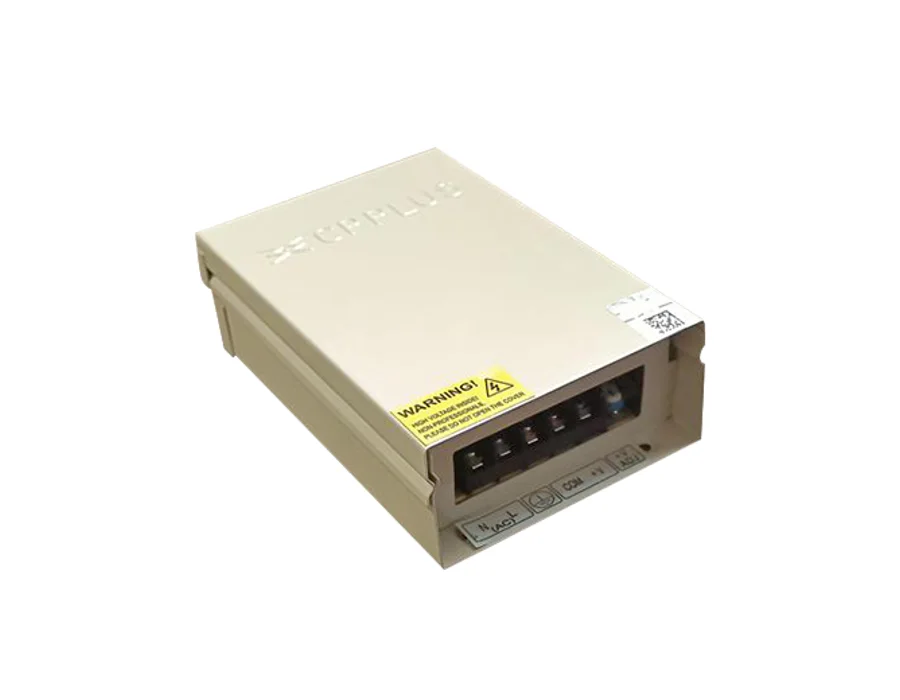

CP Plus CP-DPS-MD50P-12D – Metal Case SMPS Power Supply (Premium Series)

Metal Case SMPS Power Supply (Premium Series) Features Wide range of AC input voltage Higher power budget can add more cameras Short circuit, over voltage and over current protection Power on indicator Voltage regulator pot for cable compensation Built-in EMI filter to nullify interference 100% Full load burn-in test Metal housing for uniform & quick heat dissipation Wall mount option along with desktop Screw type block terminals for easy installation Specifications Input voltage: 190 ~ 250VAC Input AC Frequency Range: 47 ~ 63Hz Input Current (Typ.): 3.0A/230VAC Power Cord: 3 Pin (L, N & Earth) Standby Power Consumption: ≤3.0W Inrush Current (Typ.): 40A@230VAC Efficiency (Typ.): 80% Output voltage: 12V Output Current: 5.0A Output Current range: 0 ~ 5.0A Rated Power: 60W Ripple & Noise (max.): ≤200mV Line Regulation: 2% Load Regulation: 3% Power On Indicator: Support Cable Compensation: Support, (trimmer pot) No. of Output Ports: Single port Over Voltage Protection: Support Over Current Protection: Support Short circuit protection: Support Insulation Resistance: 100MΩ@500VDC Operating Temperature: -10°C~+40°C Operating Humidity: 20~90% RH non-condensing Storage Temperature: -20°C~+85°C Storage humidity: 10~95% RH Dimension: 156mm x 103mm x 47mm Wall mount option: Support

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
