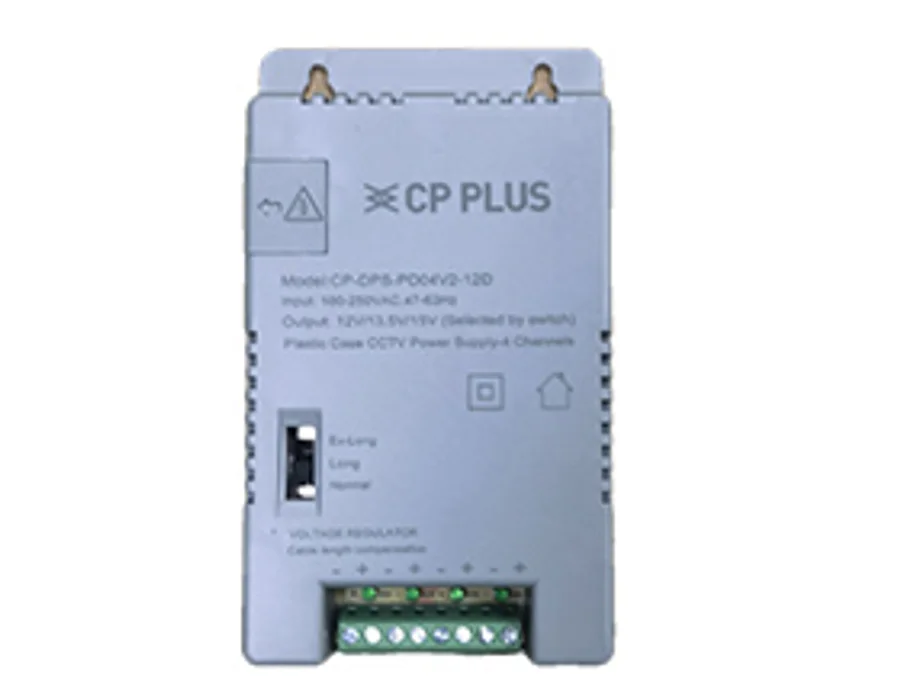

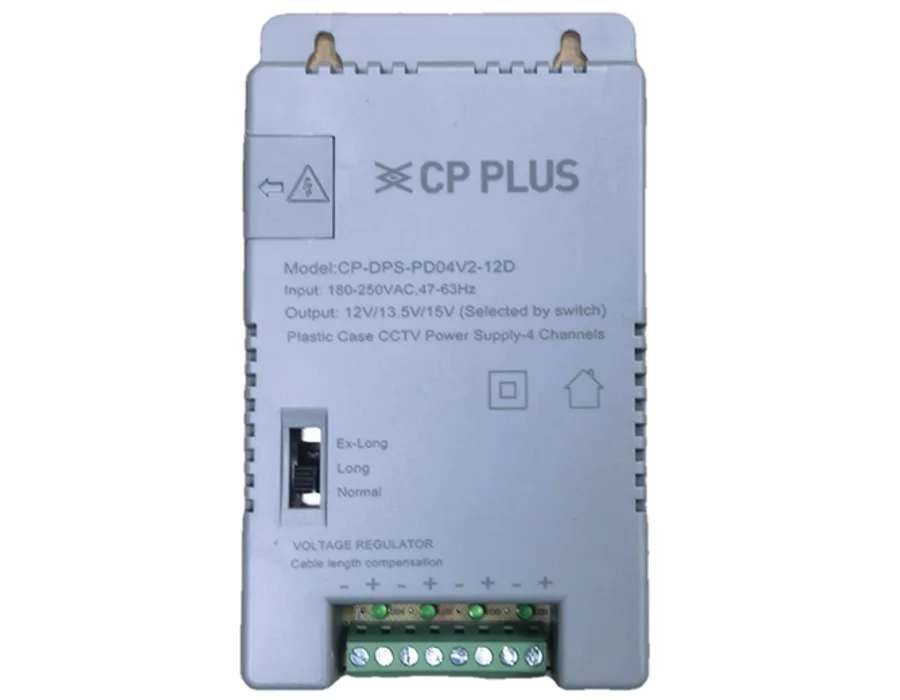

CP Plus CP-DPS-PD04V2-12D – 4 Channel Power Supply

4 Channel Power Supply Features 4 Channel Output With Cable Compensation Switch LED Indicator for Each Channel Built-in EMI Filter to Nullify Interference Cooling by Free Air Convection Built-in Constant Current Limiting Circuit 100% Full Load Built-in test Plastic Housing Specifications Input voltage: 200~240V AC Output voltage: 12V DC Current Range: 0~3A Rated Power: 36W Ripple & Noise (max.): 120mVp-p Voltage Adj. Range: 11.4~12.6V Line Regulation: ±1.0% Voltage Tolerance: n/a Setup Rise time: 2500ms, 15ms at full load Hold Up Time (Typ.): 25ms at full load Load Regulation: ±5.0% Temperature coefficient: ±0.03%/°C (0~50°C) Frequency Range: 47~63HZ Efficiency (Typ.): 86% AC Current (Typ.): 1A/220VAC Inrush Current (Typ.): Cold Start: 40A/220V AC Leakage Current: <2mA / 240VAC Over Load: 110~200% rated output power, Protection type: Shut down O/P, recovers automatically Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH Working Humidity: 20 ~ 90% RH Non-condensing Vibration: 10 ~ 500Hz, 3G 10min./1 cycle, 60min. each along X, Y, Z Dimension: 144(L) x 80(W) x 33mm(H) Store temperature: -20 ~ +85°C Working temperature: -20 ~ +45°C Withstand Voltage: I/P-O/P: 1.5KVAC I/ P-FG: 1.5KVAC O/P-FG: 0.5KVAC
