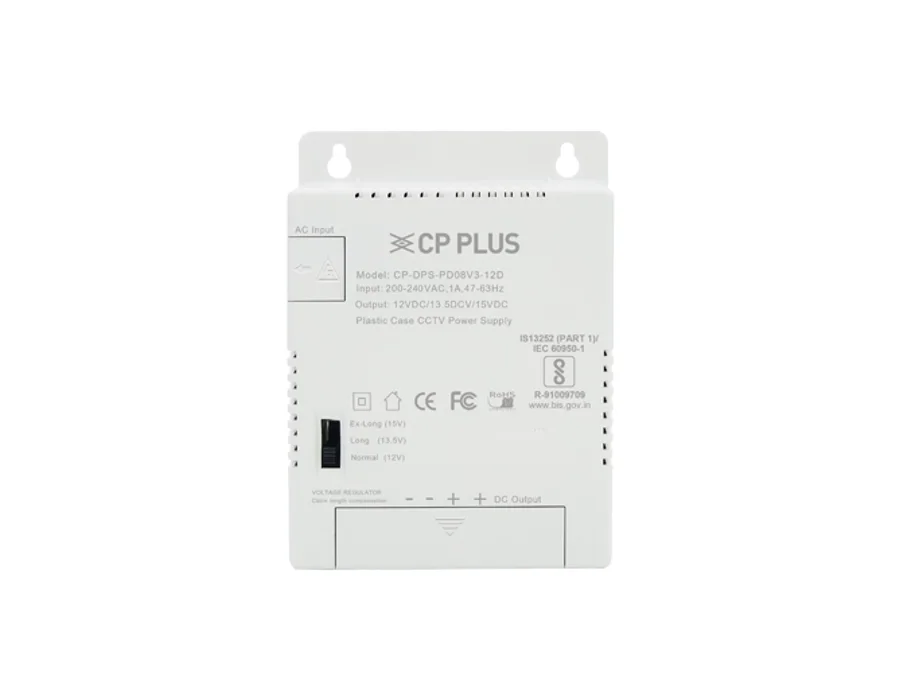

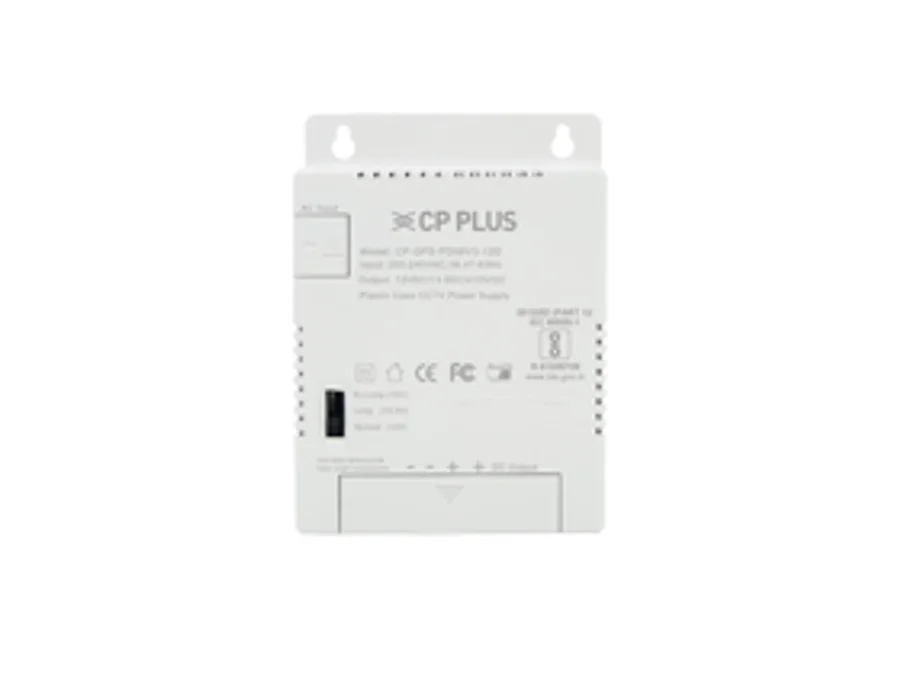

CP Plus CP-DPS-PD08V3-12D – 8 Channel Power Supply

8 Channel Power Supply Features 2+2 Output Terminals for Easy Installation Short Circuit, Over Voltage and Over Current Protection AC I/P & DC O/P Terminals are Covered for Safety Power On Indicator Cable Compensation Switch Built-in EMI Filter to Nullify Interference 100% Full Load Burn-in Test Cooling by Free Air Convection Shock Proof Plastic Housing Wall Mount Option Along with Desktop Specifications Input voltage: 200 ~ 240VAC Input AC Frequency Range: 47 ~ 63Hz Input Current (Typ.): 1A/230VAC Power Cord: 2 Pin (L & N) Standby Power Consumption: ≤0.5W Inrush Current (Typ.): ≤40A@230VAC Efficiency (Typ.): 85% Output voltage: Normal Mode 12V Output Current range: Normal Mode 0 ~ 5.0A Rated Power: Normal Mode 60W Ripple & Noise (max.): ≤240mV Line Regulation: 2% Load Regulation: 3% Power On Indicator: Support Cable Compensation Switch: Support, 3 Modes (Normal, Long, Ex. Long) No. of Output Ports: 2 output terminals short-circuit protection: Support Dielectric Strength (Hi-pot): 3.0KV Insulation Resistance: 100MΩ@500VDC Surge Immunity: 1.0KV Operating Temperature: -10 ~ +45°C Operating Humidity: 20 ~ 90% RH Non-condensing Storage Temperature: -10 ~ +45°C Storage Humidity: 10 ~ 95% RH Dimension: 141.5mm x 102.6mm x 33.2mm Weight: 0.234kg without Power Cord and Packing Box

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
