CP Plus CP-ECC-70R – 3+1 CCTV Cable (Eco Cable)
CP Plus

CP Plus CP-ECC-70R – 3+1 CCTV Cable (Eco Cable)

SKU: CPPLUS-1719 · Model: CP-ECC-70R

Price on request
  • 3+1 CCTV Cable (Eco Cable)

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

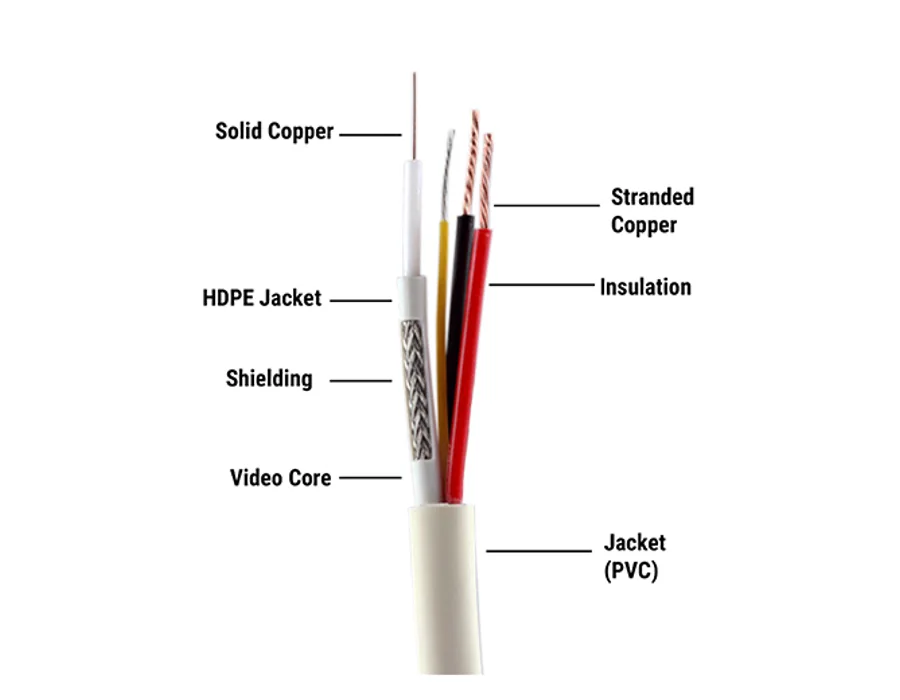

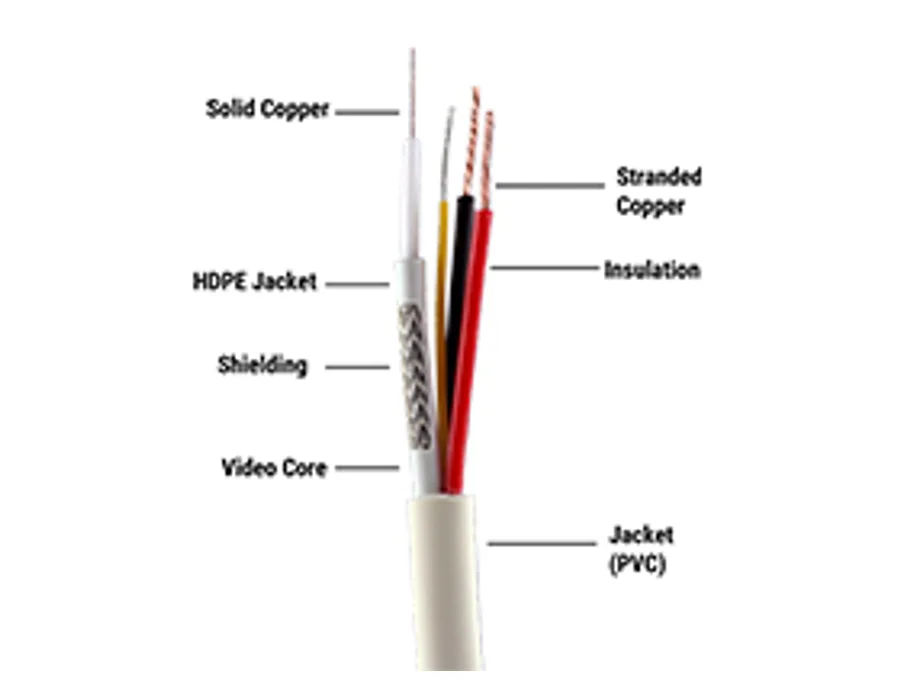

3+1 CCTV Cable (Eco Cable) Features Solid Annealed Bare Copper Conductor High performance 3+1 Cable LLDPE Insulation Material 70 Mtr. Standard Cable Length For Video, Power and Audio Communication For India Market Only Specifications Material: Stranded Annealed Bare Copper Conductor Insulation Dia (Nominal) Video Core: 1.5mm Wire Dia: .50 ± .02mm Approx Overall Diameter: 5.5mm No. of Strands (Power Core): 14 No. of Strands: 36 (Video Core) Insulation Thickness: 1.3 ± .05mm (Sheath) Shape of Conductor (Power Core): Stranded Shape of Conductor (Video Core): Solid Braiding Material: AL Alloy (Video Core) Insulation: PVC (Power Core) Cable Length: 70 Mtrs.

Full specifications
MaterialStranded Annealed Bare Copper Conductor
Wire Dia.50 ± .02mm
InsulationPVC (Power Core)
Cable Length70 Mtrs.
No. of Strands36 (Video Core)
Braiding MaterialAL Alloy (Video Core)
Insulation Thickness1.3 ± .05mm (Sheath)
Approx Overall Diameter5.5mm
No. of Strands (Power Core)14
Shape of Conductor (Power Core)Stranded
Shape of Conductor (Video Core)Solid
Insulation Dia (Nominal) Video Core1.5mm
What’s in the box

Confirm the supplied items with our team.

Warranty

Warranty information will be confirmed before purchase.
