CP Plus CP-ECC-70RS – 3+1 CCTV Cable (Standard Cable)
CP Plus

CP Plus CP-ECC-70RS – 3+1 CCTV Cable (Standard Cable)

SKU: CPPLUS-1718 · Model: CP-ECC-70RS

Price on request
  • 3+1 CCTV Cable (Standard Cable)

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

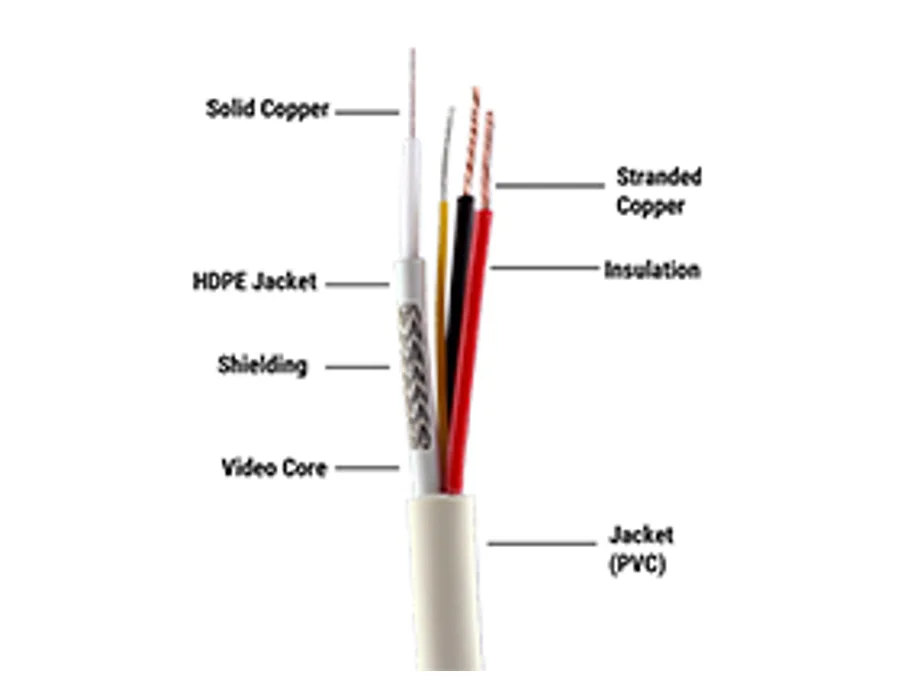

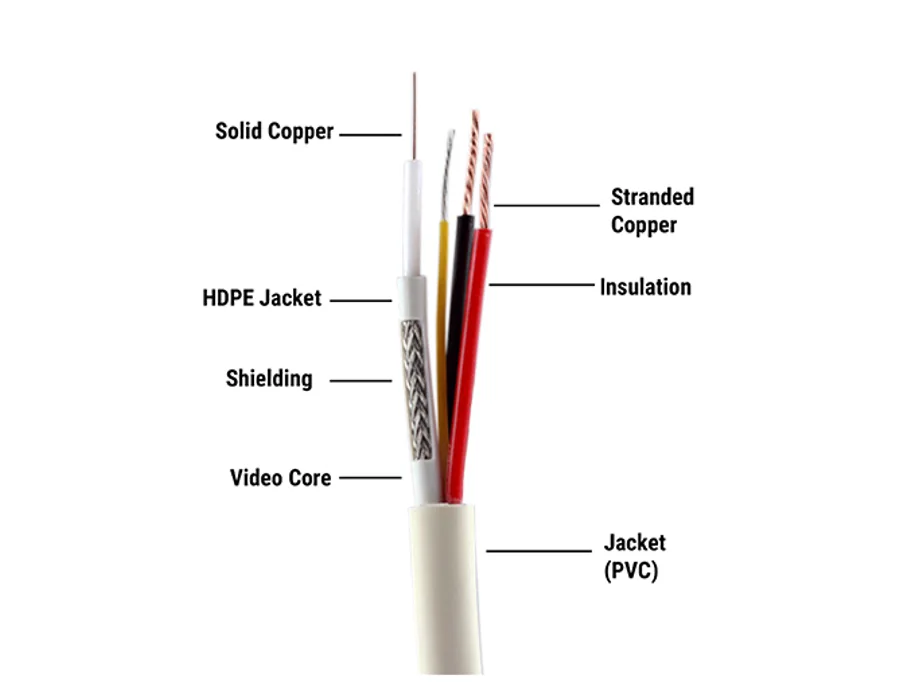

3+1 CCTV Cable (Standard Cable) Features Solid Annealed Bare Copper Conductor LLDPE Insulation Material 70 Mtr. Standard Cable Length For Video, Power and Audio Communication For India Market Only Specifications Material: Stranded Annealed Bare Copper Conductor Insulation Dia (Nominal) Video Core: 1.5mm Wire Dia: .52 ± .02mm Approx Overall Diameter: 5.6mm No. of Strands (Power Core): 14 No. of Strands: 48 (Video Core) Insulation Thickness: 1.3 ± .05mm (Sheath) Shape of Conductor (Power Core): Stranded Shape of Conductor (Video Core): Solid Braiding Material: AL Alloy (Video Core) Insulation: PVC (Power Core) Cable Length: 70 Mtrs.

Full specifications
MaterialStranded Annealed Bare Copper Conductor
Wire Dia.52 ± .02mm
InsulationPVC (Power Core)
Cable Length70 Mtrs.
No. of Strands48 (Video Core)
Braiding MaterialAL Alloy (Video Core)
Insulation Thickness1.3 ± .05mm (Sheath)
Approx Overall Diameter5.6mm
No. of Strands (Power Core)14
Shape of Conductor (Power Core)Stranded
Shape of Conductor (Video Core)Solid
Insulation Dia (Nominal) Video Core1.5mm
