CP Plus CP-ECC-90R – 3+1 CCTV Cable

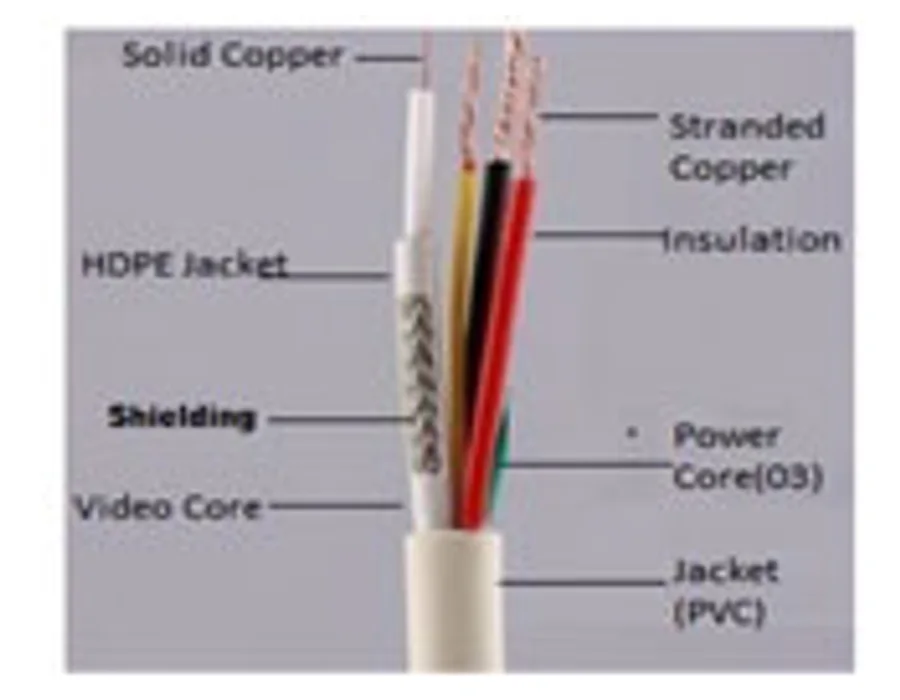

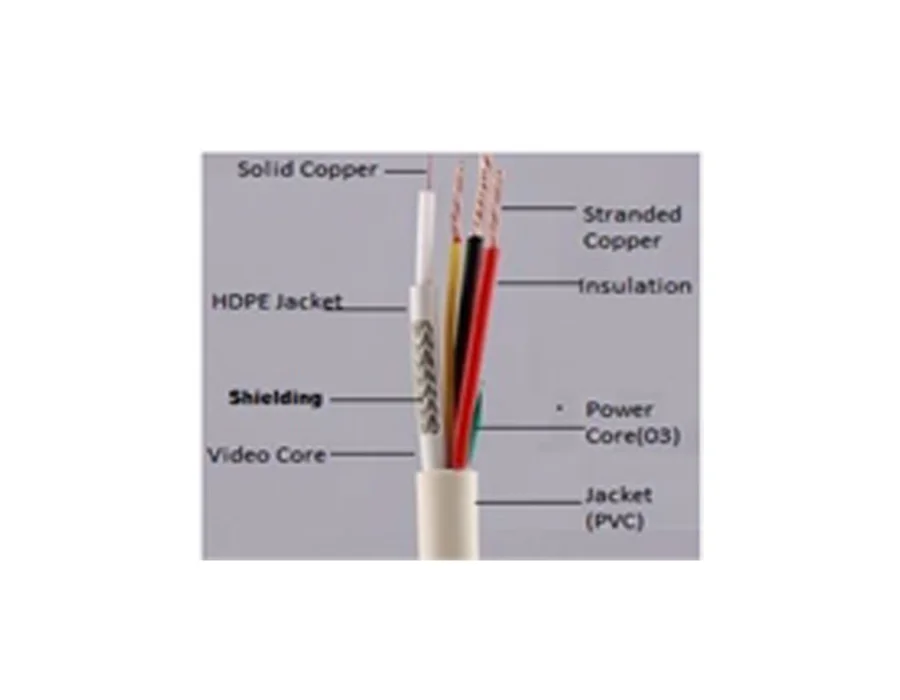

3+1 CCTV Cable Features Solid Annealed Bare Copper Conductor Heavily Braided with HDPE Insulation 90 Mtr. Standard Cable Length Specifications Conduct Type: Stranded Annealed Bare Copper Conductor No/Size of Wire: 14/0.10± 0.010mm Insulation: PVC No of Core: Three Colour Code: Red, Yellow & Grey Core O.D: 1.35±0.10mm Conductor Type: Solid Annealed Bare Copper Conductor No/Size of Wire Video Core: 01/0.60± 0.015mm Video Core Insulation: HDPE No of Video Core: One Colour Video Code: Natural Shielded: Al-Mylar Braiding: CCA braiding (48 wire/0.12 ± 0.01mm) Video Core Jacketing: HDPE Colour of Jacket: Black Video Core OD: 2.50 ±0.20mm Material PVC: PVC Colour of Jacketing: White Thickness of Outer Jacket: 0.65 mm (Nom.) Outer Dia.: 5.70 ± 0.30mm Sequential Marking: Every Meter Standard Length: 90 Mtrs Conductor Resistance (DC) of solid: 65Ω/km @20°C Max Conductor Resistance (DC) of Stranded: 175Ω/km @20°C Max T.S in PVC Jacket: 12.5N/ Sqmm (Min) Elongation in PVC Jacket: 150% Minimum

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
