CP Plus CP-EFC-12AS-1K – Optical Fiber Cable

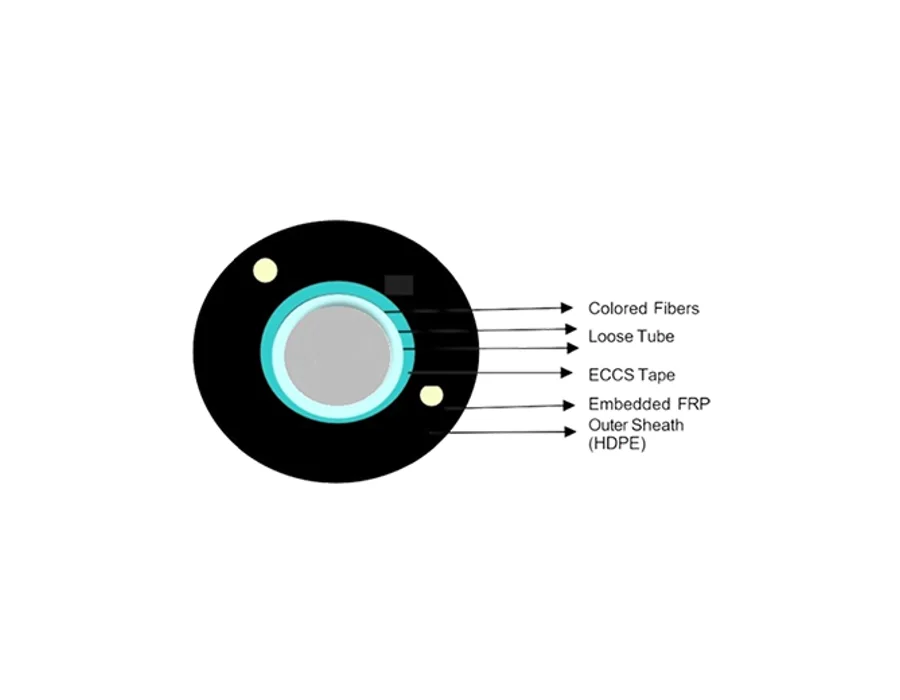

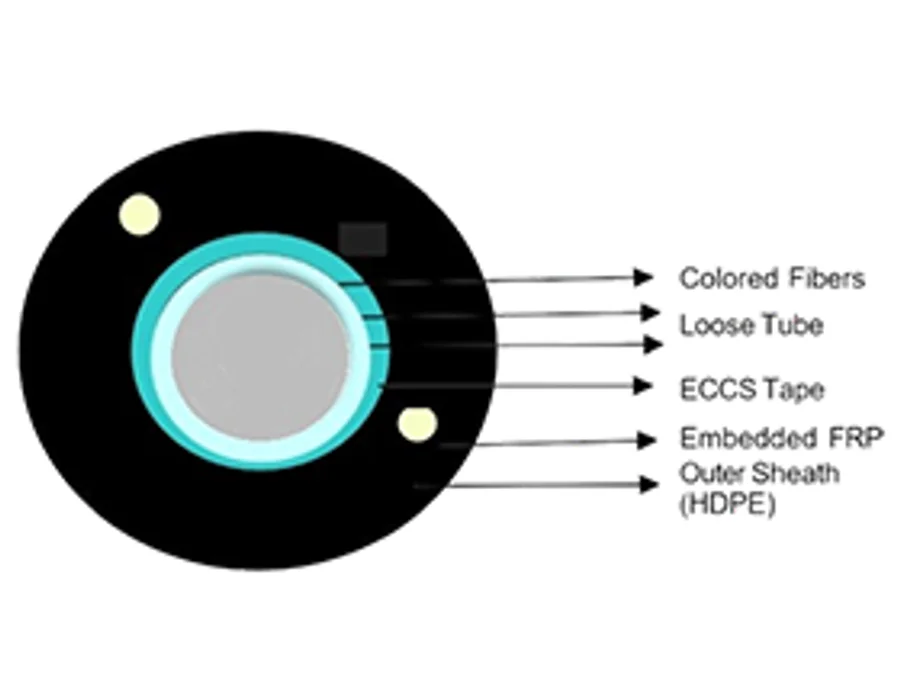

Optical Fiber Cable Features Color-coded Fibers ensure easy identification Comes with UV-protected HDPE outer sheath Offers low signal loss during transmission Withstands up to 1000 N tensile force 12 Optical Fibers enclosed in a single robust sheath Operates reliably from –20°C to +70°C Specifications Cable Bending Radius: Long Term 20 x Cable Diameter, Short term 10 x Cable Diameter Tensile: Short Term 1000 N, Long Term 500 N Single Mode Optical Fiber: Attenuation at 1310 nm: < 0.35 dB/Km Attenuation at 1550 nm: < 0.25 dB/Km Colour Code: Color of Fibers in a Tube: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Pink, Nat Color of Loose Tubes: Natural Cable Constructional: a) Primary Coated Fiber: Single Mode - G 652 b) Tube Filling Compound: Thixotropic Jelly c) Loose Tube (s): PBTP d) Strength Member: FRP Rod e) Armour: Corrugated ECCS Tape f) Outer Sheath ( T= 1.8 mm Nominal): UV protected Black HDPE Laying and Installation Temperature: -20°C to +70°C Operating Temperature: -20°C to +70°C Transport and Storage Temperature: -20°C to +70°C Nominal Cable Weight: 42 ± 2 Nominal Cable Diameter: 7.5 ± 0.2 Standard Length: 1000 ± 10 % (per Drum Mtr.)
