CP Plus CP-EST-6TGA-305 – CAT6 Armoured Cable
CP Plus

CP Plus CP-EST-6TGA-305 – CAT6 Armoured Cable

SKU: CPPLUS-584 · Model: CP-EST-6TGA-305

Price on request
  • CAT6 Armoured Cable

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

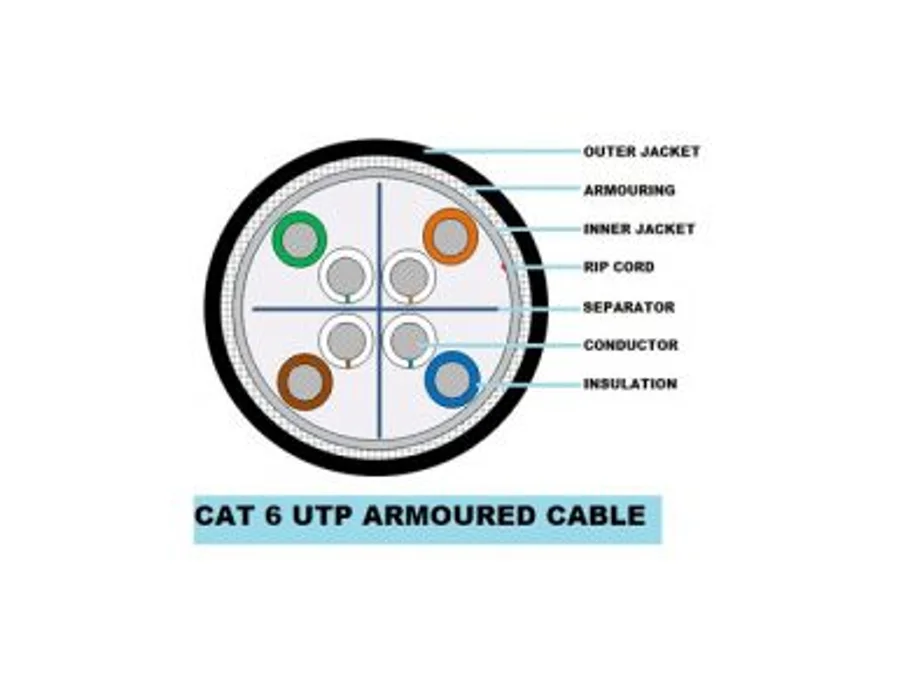

CAT6 Armoured Cable Features Generally confirming to EIA/TIA 568-C.2 and IEC/ISO11801 Excellent Margin with suppression of Cross Talk (NEXT) 4 Pair Separator Design 23 AWG cable For Outdoor installation For India Market Only Specifications Conductor: Solid Bare Electrolytic Grade Copper Insulation: Polyethylene (HDPE) Nominal Conductor Diameter: 23 AWG (0.558 ± 0.015mm) Cross Filler: HDPE Pairing: Twisted into Two core Outer Sheath: PVC Operating Temperature: -20 to +50°C Storage Temperature: -20 to +75°C Approximate OD: 9.30 ±0.55 mm Impedance: 100±15% Ω Resistance Unbalance: 5% Max Sequential Marking: At Every Meter Packing: 305 Mtrs

Full specifications
Packing305 Mtrs
PairingTwisted into Two core
ConductorSolid Bare Electrolytic Grade Copper
Impedance100±15% Ω
InsulationPolyethylene (HDPE)
Cross FillerHDPE
Outer SheathPVC
Approximate OD9.30 ±0.55 mm
Sequential MarkingAt Every Meter
Storage Temperature-20 to +75°C
Resistance Unbalance5% Max
Operating Temperature-20 to +50°C
Nominal Conductor Diameter23 AWG (0.558 ± 0.015mm)
