CP Plus CP-EST-6TGA-305V1 – Cat6 Armoured Cable
CP Plus

CP Plus CP-EST-6TGA-305V1 – Cat6 Armoured Cable

SKU: CPPLUS-1721 · Model: CP-EST-6TGA-305V1

Price on request
  • Cat6 Armoured Cable

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

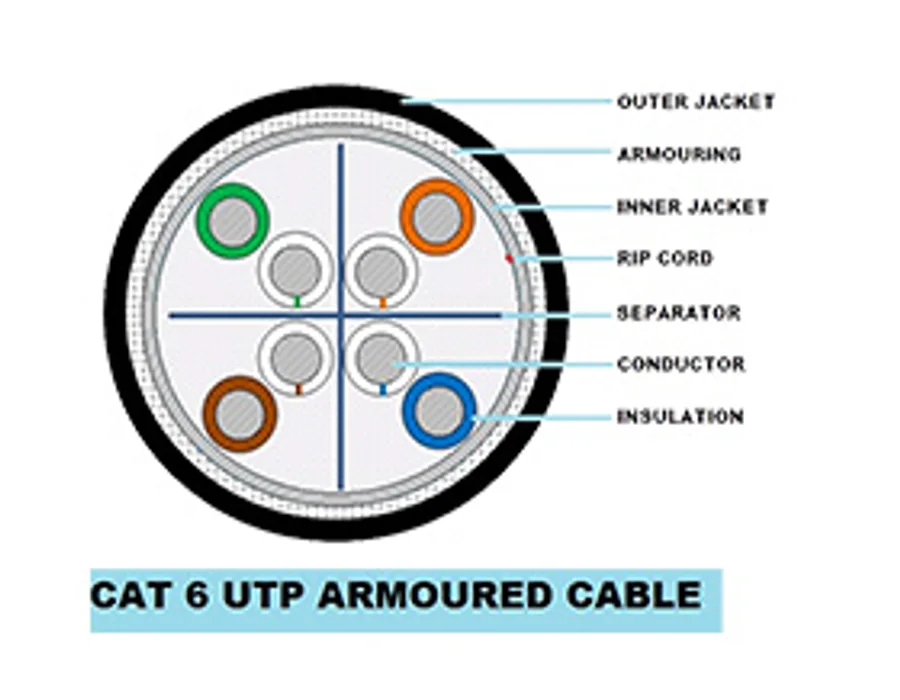

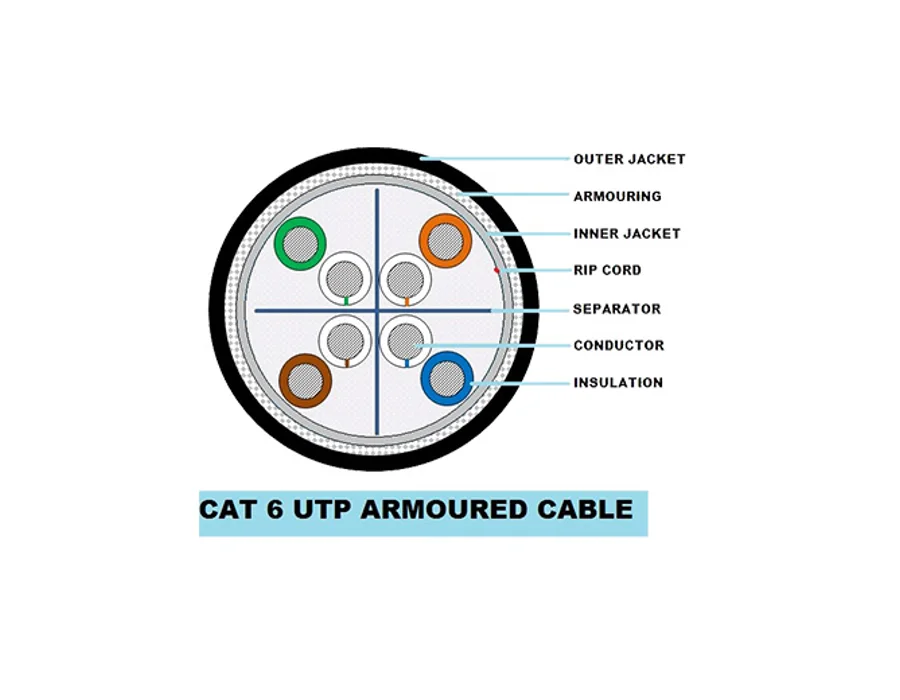

Cat6 Armoured Cable Features Generally confirming to EIA/TIA 568-C.2 and IEC/ISO 11801 Excellent Margin with suppression of Cross Talk (NEXT) For Outdoor Installation 4 Pair Separator Design 24 AWG cable For India Market Only Specifications Conductor: Solid Bare Electrolytic Grade Copper Insulation: Polyethylene (HDPE) Nominal Conductor Diameter: 24 AWG (0.585 ± 0.015mm) Cross Filler: HDPE Outer Sheath: DPE Operating Temperature: -15 to +60°C Approximate OD: 9.00 ± 0.30mm Impedance: 100±10% Ω Resistance Unbalance: 5% Max Colour of Sheath: Black Sequential Marking: Every Meter Packing: 305 Mtrs

Full specifications
Packing305 Mtrs
ConductorSolid Bare Electrolytic Grade Copper
Impedance100±10% Ω
InsulationPolyethylene (HDPE)
Cross FillerHDPE
Outer SheathDPE
Approximate OD9.00 ± 0.30mm
Colour of SheathBlack
Sequential MarkingEvery Meter
Resistance Unbalance5% Max
Operating Temperature-15 to +60°C
Nominal Conductor Diameter24 AWG (0.585 ± 0.015mm)
What’s in the box

Confirm the supplied items with our team.

Warranty

Warranty information will be confirmed before purchase.
