CP Plus CP-EUT-6TGD23-305 – Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket)
CP Plus

CP Plus CP-EUT-6TGD23-305 – Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket)

SKU: CPPLUS-1738 · Model: CP-EUT-6TGD23-305

Price on request
  • Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket)

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

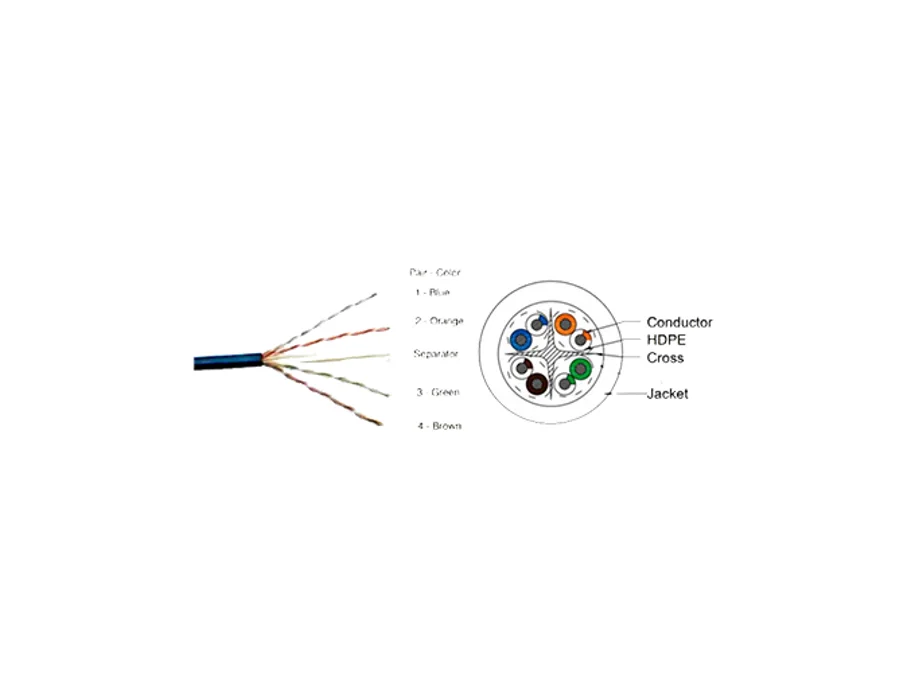

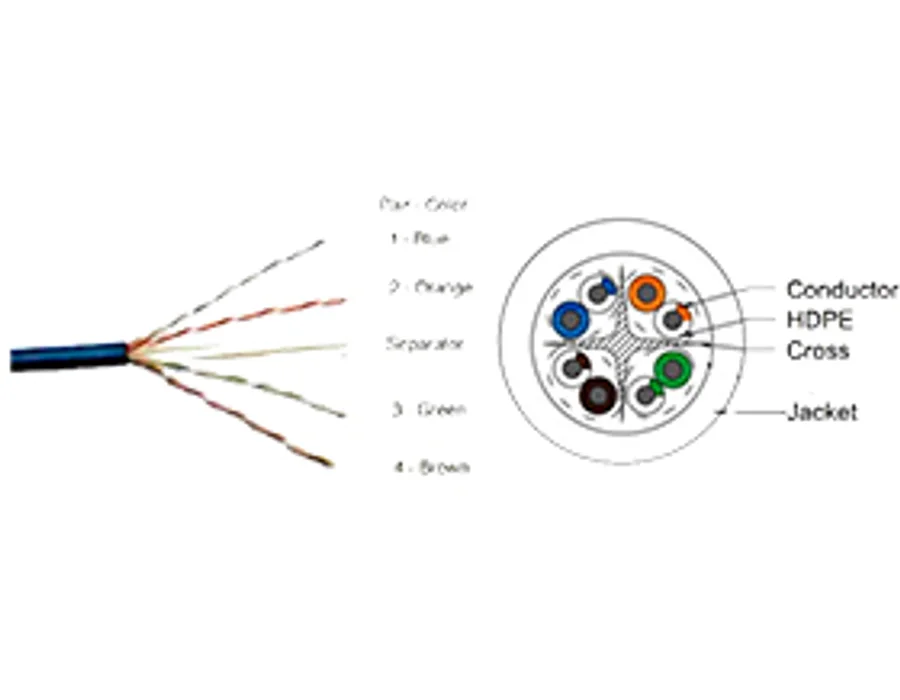

Cat6 24AWG UTP Outdoor LAN Cable (Double Jacket) Features Solid Bare Electrolytic Grade Copper Insulation Polyethylene (HDPE) 4 Pair Separator Design For India Market Only Specifications Conductor: Solid Bare Electrolytic Grade Copper Insulation: Polyethylene (HDPE) Cross Filler: HDPE Pairing: 2 insulated conductors twisted together Jacket(Overall): PVC Operating Temperature: -15 to 60°C Storage Temperature: -15 to 60°C Approximate OD: 5.8mm ± 0.1mm Impedance: 100±15% Ω Resistance Unbalance: 5% Max Sequential Marking: Every Meter Packing: 305 Mtrs

Full specifications
Packing305 Mtrs
Pairing2 insulated conductors twisted together
ConductorSolid Bare Electrolytic Grade Copper
Impedance100±15% Ω
InsulationPolyethylene (HDPE)
Cross FillerHDPE
Approximate OD5.8mm ± 0.1mm
Jacket(Overall)PVC
Sequential MarkingEvery Meter
Storage Temperature-15 to 60°C
Resistance Unbalance5% Max
Operating Temperature-15 to 60°C
What’s in the box

Confirm the supplied items with our team.

Warranty

Warranty information will be confirmed before purchase.
