CP Plus CP-EUT-6TGL-305 – CAT6, 4Pair UTP Cable (Tangle Free)

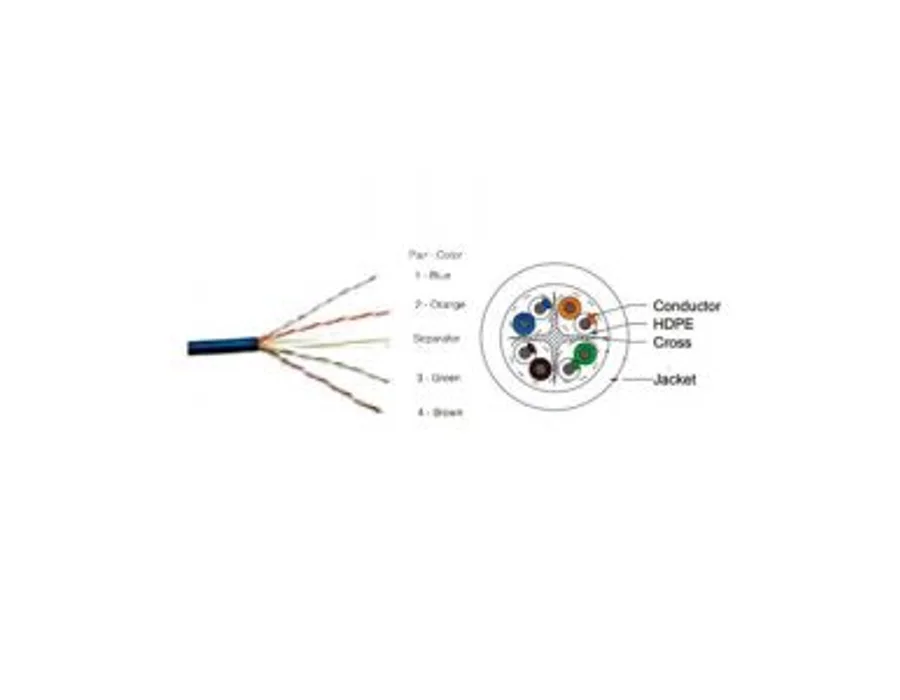

CAT6, 4Pair UTP Cable (Tangle Free) Features Exceed ISO/IEC 11801, IEC/EN 60332-1 and EIA/TIA-568-B. 2-1 Class E Standards backward compatible to Cat5e Applications Excellent Margin with suppression of Cross Talk (NEXT) 4 Pair Separator Design 23 AWG cable Optionally Available in Low Smoke Zero Halogen and PE jacket and Armoured Specifications Conductor: Solid Bare Electrolytic Grade Copper Nominal Conductor Diameter: 23 AWG Insulation: Polyethylene (LDPE) No. of Pair: 4, Each pair Twisted Pairing: Twisted into Two core Outer Sheath: PVC Sheath/ LSZH Colour of Sheath: Grey (RAL-7035), Option Available Approximate OD: 5.480mm Rip Cord: Yes Cross Filler: HDPE Sequential Marking: Every Meter Resistance Unbalance: 5% Max Conductor Resistance of solid cable: 93.5Ω/1000 Mtr@20°C Max Mutual Capacitance: 5.6nf/100Mtr. Max Packing: 305 Mtrs Temperature Rating: -20 to +60°C Storage Temperature: -20 to +75°C NVP: 69% Impedance: 100±15% Ω Tensile: 110N
