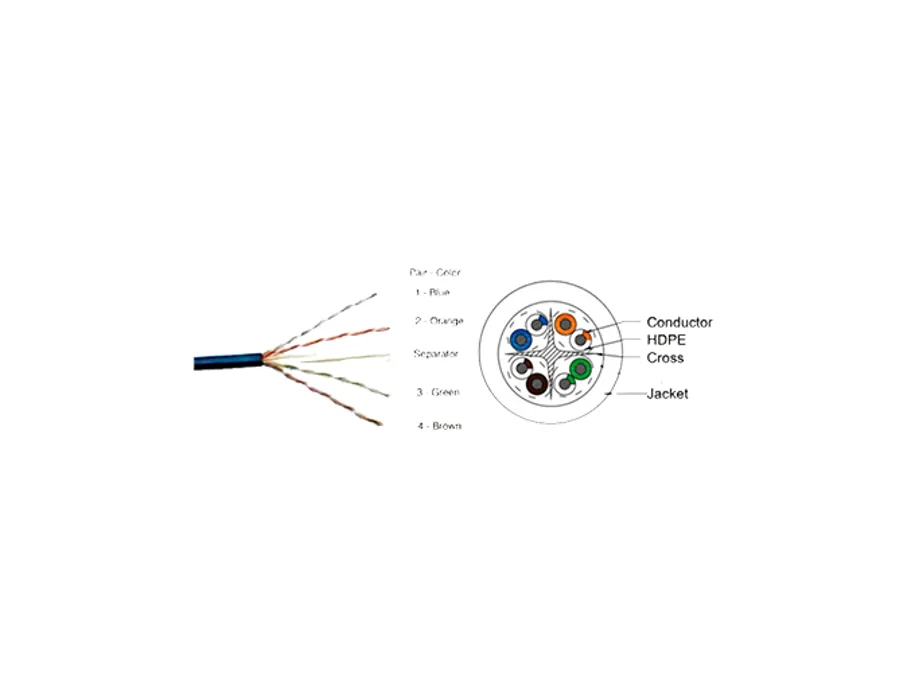

CP Plus CP-EUT-6TGL23-305 – Cat6 24AWG UTP LAN Cable
SKU: CPPLUS-1737 · Model: CP-EUT-6TGL23-305
Price on request
- Cat6 24AWG UTP LAN Cable
In Stock
Enter your PIN code to find delivery options and a nearby store.
Overview

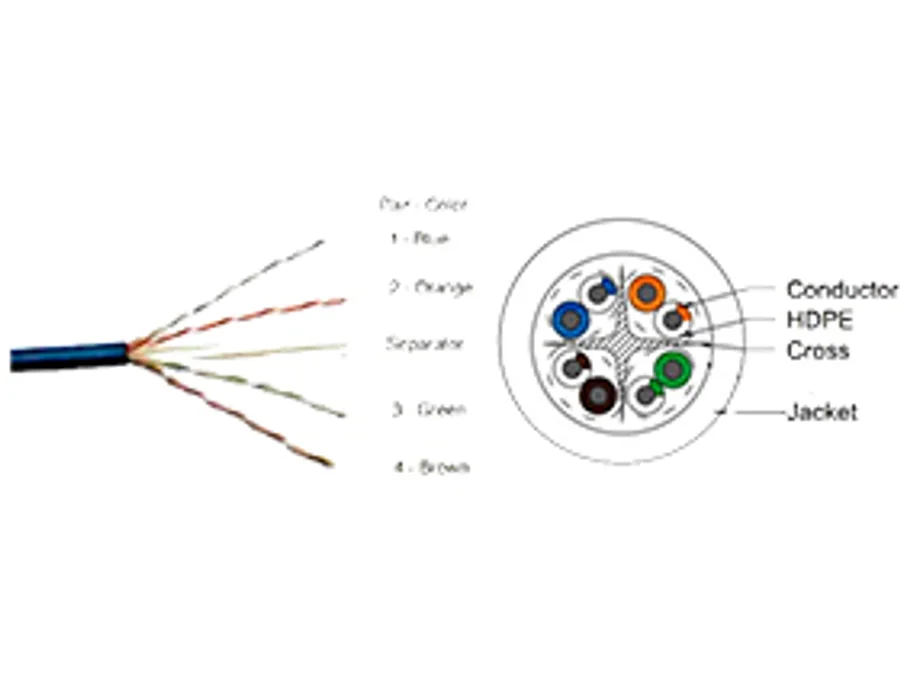

Cat6 24AWG UTP LAN Cable Features Solid Bare Electrolytic Grade Copper Insulation Polyethylene (HDPE) 4 Pair Separator Design 24 AWG cable Specifications Conduct Type: Solid Bare Electrolytic Grade Copper Nominal Conductor Diameter: 24 AWG Insulation: Polyethylene (HDPE) Separator: Each pair separated with a cross separator Pairing: 2 insulated conductors twisted together Separator Material: Polyethylene (PVC) Outer Sheath: FR PVC Colour of Sheath: Grey Approximate OD: 5.5mm ± 0.1mm Sheath Thickness: .48mm ± 05mm Rip Cord: Yes Sequential Marking: Every Meter Characteristic Impedance: 100 ±15Ω Nominal Velocity of Propagation: 69% Resistance Unbalance: 5% Max Conductor Resistance: ≤9.38/100m Capacitance Unbalance: 330pF/100m Bending Radius: < 4 x Cable Diameter at -20° ±1°C Delay Skew: <45nS Mutual Capacitance: <5.6nf/100m Packing: 305 Mtrs Temperature Rating: 0 to 50°C Storage Temperature: -15 to 70°C Impedance: 100±15% Ω Pulling Force: 11.5Kg
Full specifications
| Packing | 305 Mtrs |
|---|---|
| Pairing | 2 insulated conductors twisted together |
| Rip Cord | Yes |
| Impedance | 100±15% Ω |
| Separator | Each pair separated with a cross separator |
| Delay Skew | <45nS |
| Insulation | Polyethylene (HDPE) |
| Conduct Type | Solid Bare Electrolytic Grade Copper |
| Outer Sheath | FR PVC |
| Pulling Force | 11.5Kg |
| Approximate OD | 5.5mm ± 0.1mm |
| Bending Radius | < 4 x Cable Diameter at -20° ±1°C |
| Colour of Sheath | Grey |
| Sheath Thickness | .48mm ± 05mm |
| Mutual Capacitance | <5.6nf/100m |
| Separator Material | Polyethylene (PVC) |
| Sequential Marking | Every Meter |
| Temperature Rating | 0 to 50°C |
| Storage Temperature | -15 to 70°C |
| Conductor Resistance | ≤9.38/100m |
| Resistance Unbalance | 5% Max |
| Capacitance Unbalance | 330pF/100m |
| Characteristic Impedance | 100 ±15Ω |
| Nominal Conductor Diameter | 24 AWG |
| Nominal Velocity of Propagation | 69% |
What’s in the box
Confirm the supplied items with our team.
Warranty
Warranty information will be confirmed before purchase.
