CP Plus CP-EUT-6TGLA-305 – Cat6, 4Pair UTP Cable (Tangle Free)

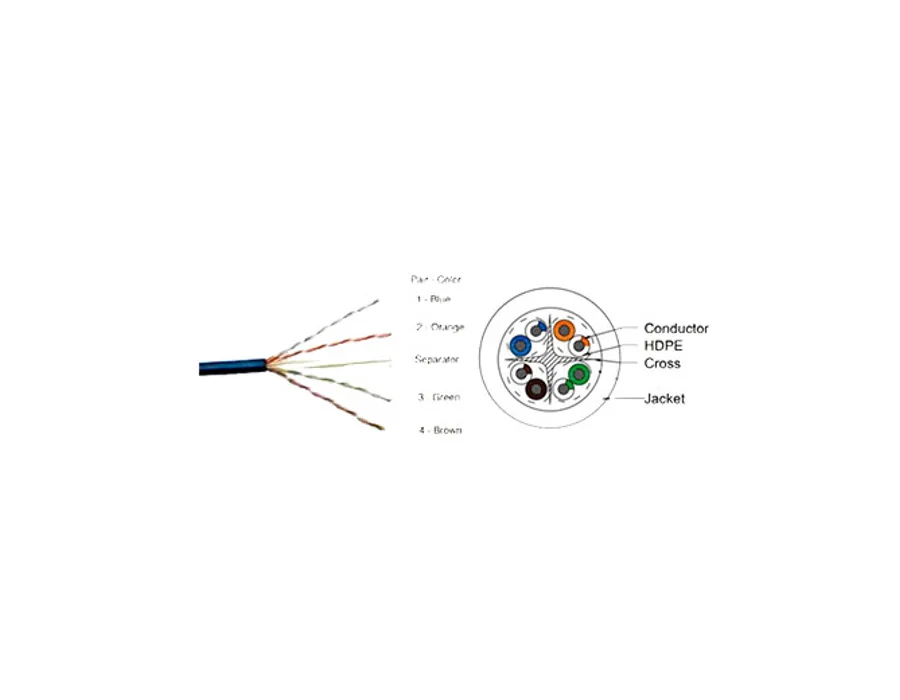

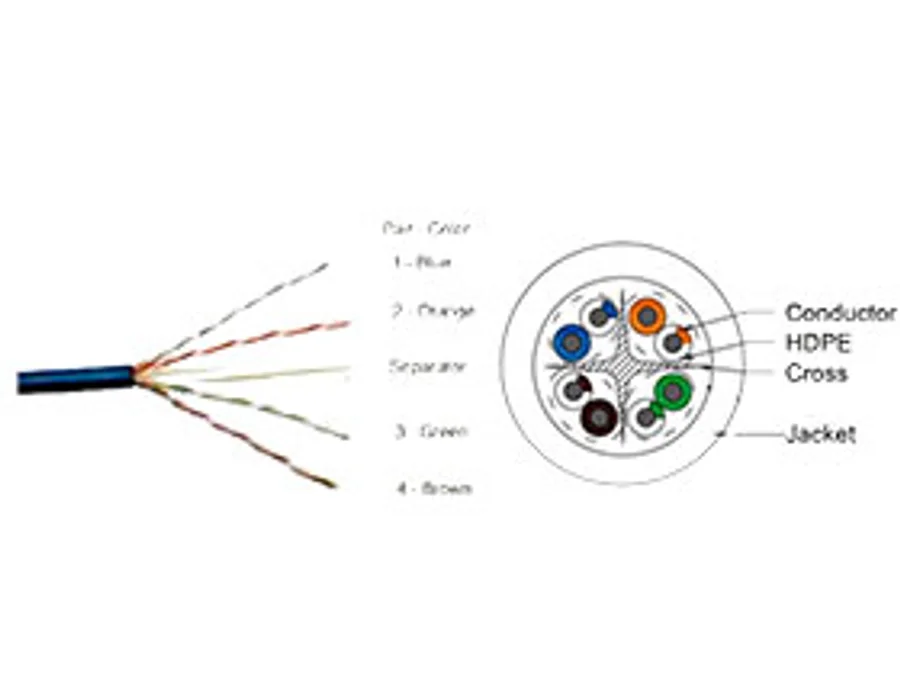

Cat6, 4Pair UTP Cable (Tangle Free) Features Exceed ISO/IEC 11801, IEC 61156-5, ANSI/TIA /EIA- 568-C.2 Class E Standards backward compatible to Cat5e Applications Excellent Margin with suppression of Cross Talk (NEXT) 4 Pair Separator Design 23 AWG cable Optionally Available in Low Smoke Zero Halogen and PE jacket and Armoured Specifications Conduct Type: Solid Bare Electrolytic Grade Copper Nominal Conductor Diameter: 23 AWG Insulation: Polyethylene (HDPE) No. of Pair: 4, Each pair Twisted Pairing: Twisted into Two core Outer Sheath Material: PV Sheath Colour of Sheath: Grey (RAL-7035), Option Available Approximate OD: 5.80mm Rip Cord: Yes Cross Filler: HDP Sequential Marking: Every Meter Resistance Unbalance: 5% Max Conductor Resistance of solid cable: 93.5Ω/1000 Mtr@20°C Max Mutual Capacitance: 5.8nf100Mtr. Max Packing: 305 Mtrs Temperature Rating: -20 to +60°C Installation Temperature: 0 to 50°C Storage Temperature: -20 to +65°C NVP: 69% Impedance: 100±15% Ω Tensile: 110N Min Bending Radius: 10x Jacket Dia
