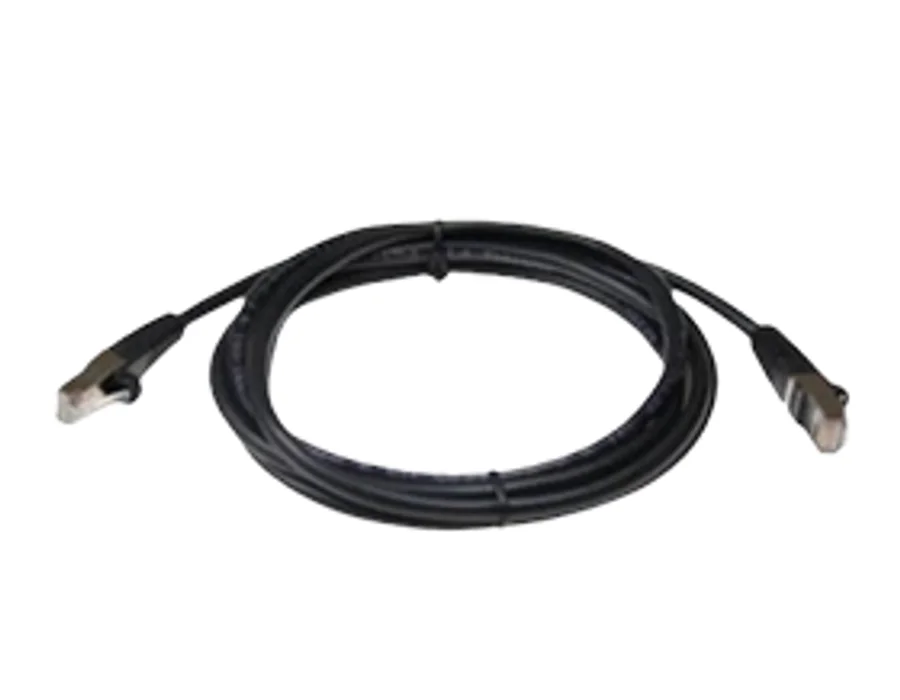

CP Plus CP-EUT-6TP2 – CAT 6 UTP LAN Cable

CAT 6 UTP LAN Cable Features Conforms to TIA /EIA- 568-C.2 Excellent Margin with suppression of Cross Talk (NEXT) 2 conductors twisted together to form a pair 20 Mtr. Standard Cable Length 4 Pairs are laid up and separated from one another through a Cross Separator Laid up of 4 Pairs is sheathed with PVC Specifications Conduct Type: Stranded Bare Electrolytic Grade Copper Nominal Conductor Diameter: 24AWG (7/0.195 ± 0.010) Insulation: Polyethylene (HDPE) No. of Pair: 4, Each pair Twisted Pairing: Twisted into Two core Connector Type: UTP RJ-45 3Part Connector both ends Outer Sheath Material: PVC Colour of Sheath: Grey Approximate OD: 5.90mm ± 0.20mm Cable Skew: Max. 45 (ns/100 Mtr.) Conductor Resistance: Max. 98 @20°C Standard Length: 20 Mtr. Temperature Rating: -15°C to +70°C Resistance Unbalance: 5 Max Capacitance Unbalance: Max. 330 (pf/100 Mtr.) Velocity of Propagation: 69% Mutual Capacitance: Max. 5.6 (nf/100 Mtr.)

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
