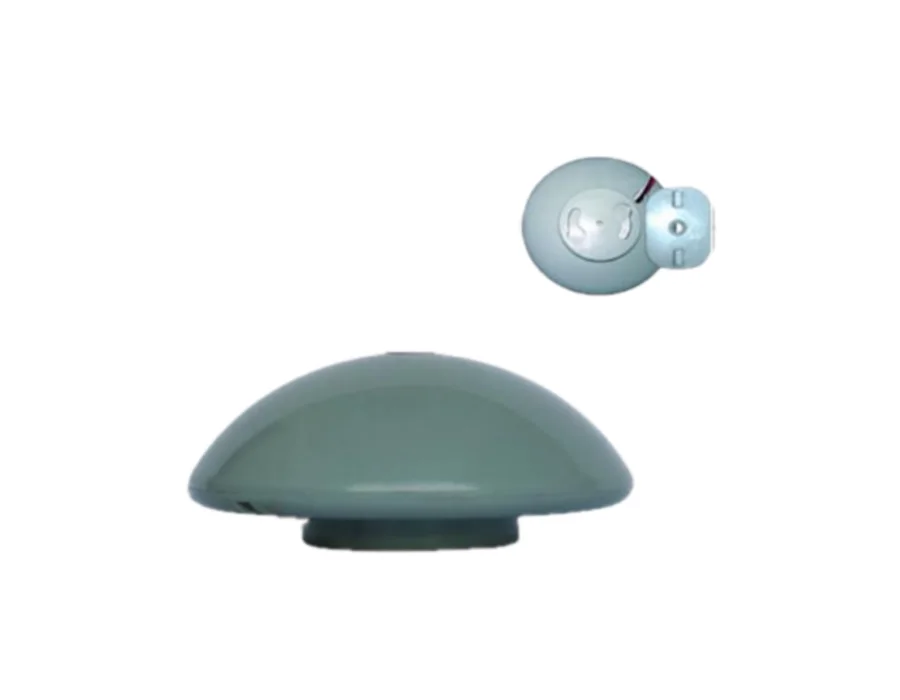

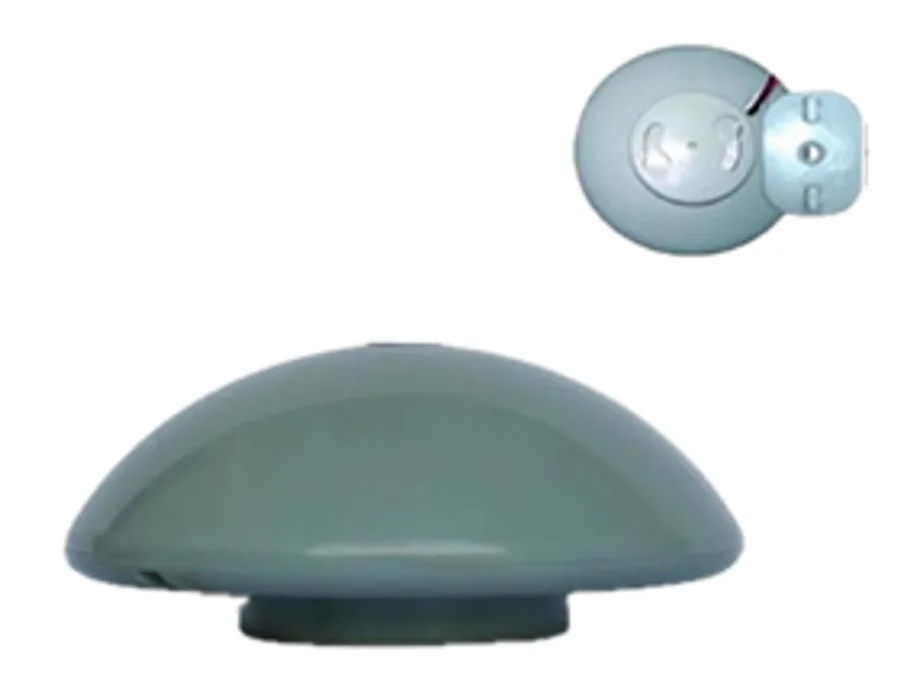

CP Plus CP-FA-M300 – Microphone

Microphone Features Internal circuit with AGC gain control and power amplification circuit, maximally eliminate the noise, to guarantee the output intensity. The microphone is on the surface and restore sound more closely; hang tenon type design of sliding block structure, easy to absorb the ceiling or side wall installation. Loud sound and pure timbre within 5-30m² monitoring range. Audio pickup, designed for audio monitoring, the advantages of big monitoring range and high sensitivity. Built-in lightning protection, power supply polarity reverse connect protection, ESD electrostatic protection and power protection module. Long audio signal transmission technology, Long audio signal transmission technology, use the RVVP3 x 0.5mm² shield cable, it is distortion less within 3km. Integrated professional front audio amplifier circuit, direct drive active speakers, DVR, earphones, etc. Applicable to the banks, factory, schools, offices and any places need to audio monitoring. Specifications Audio Monitor Range: 5-30m² Material: Advanced resin PVC Audio Transmission Distance: 3000m Frequency Response: 20Hz~20kHz Sensitivity: -50dB SNR: 60dB(1m40dB) 50dB(10m40dB) 1KHz at 1Pa Directional Property: Omnidirectional Dynamic Range: 80dB (1KHz at Max dB SPL) Max Sound Pressure: 120dB SPL (1KHz, THD 1%) Output Impedance: 600 ~ 1000Ω non-equilibrium Output Signal Amplitude: 2.5Vpp/-25dB Microphone: Electret condenser microphone Protective Circuit: Lightning protection, power supply polarity reverse connect protection, ESD protection Signal Processing Circuit: AGC, ALC Connection Way: 3 leading wires (red lead is power+ white lead is audio signal + black is power & audio signal) Transmission Cable: RVVP3×0.5mm2 shield cable Power Supply: DC10V~18V (recommend to use 12V, more than 500 meters recommended 15 v) Working Current: 50mA Working Temperature: -25°C ~ 70°C Color: White/Taupe Dimension: 80mm x 36mm Weight: 40g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
