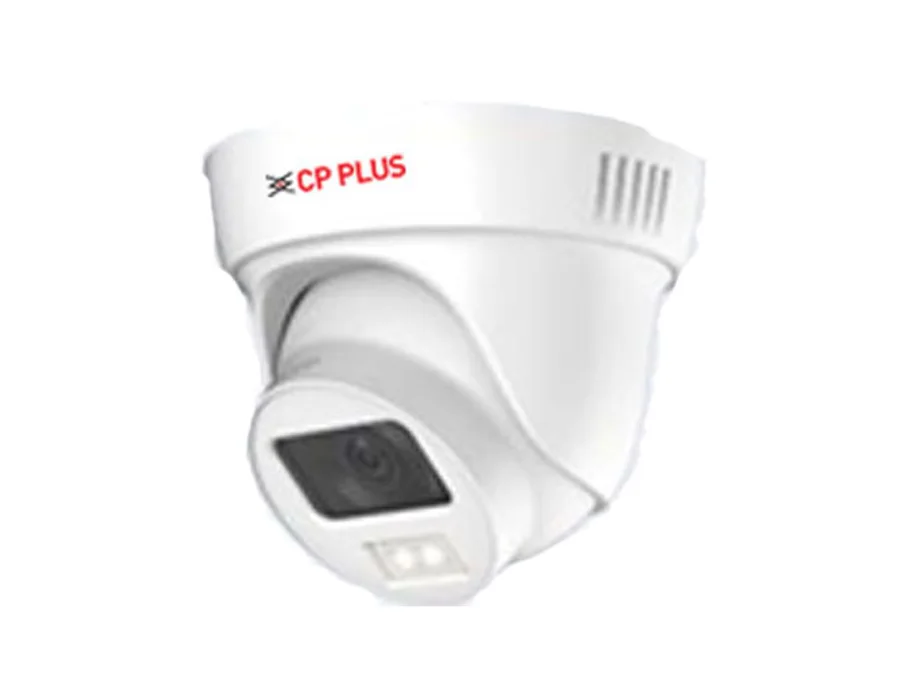

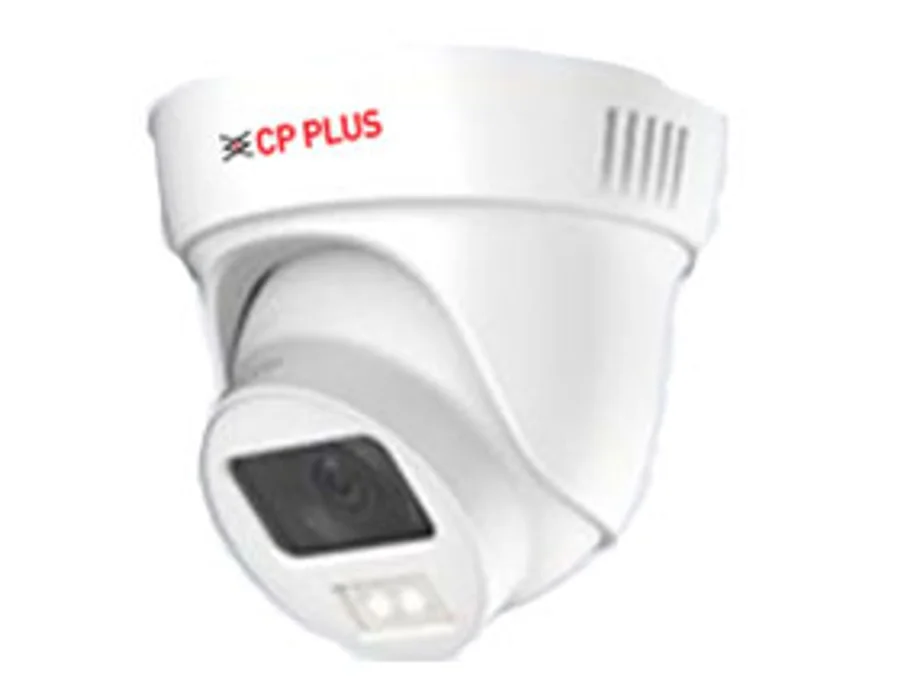

CP Plus CP-GPC-DA24PL2C-SE – 2.4MP Full-color Guard+ Dome Camera - 20Mtr.

2.4MP Full-color Guard+ Dome Camera - 20Mtr. Features 1/2.8" 2.4MP CMOS Image Sensor (0.9071 centimetres) Max 25/30fps@2.4MP DWDR, 2D-DNR, AWB, AGC, BLC 3.6mm Fixed lens (2.8mm Optional) Illumination Distance of 20 Mtrs, IP67 Support 24/7 color Imaging Support Built-in Mic CVI/CVBS/AHD/TVI switchable Specifications Image Sensor: 1/2.8" 2.4MP CMOS (0.9071 centimetres) Minimum Illumination: 0.01Lux/F1.6, 0 Lux white light on BodyType: Dome Shutter Speed: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Max Aperture: F1.6 White Balance: Auto/Manual Lens Type: Fixed Lens: 3.6mm (2.8mm Optional) Gain Control (AGC): Auto/Manual DORI Distance: 2.8mm: 43.9m (Detect) 17.5m (Observe) 8.8m (Recognize) 4.4mm (Identify) 3.6mm: 55.2m (Detect) 22.1m (Observe) 11.0m (Recognize) 5.5mm (Identify) Angle of View: 2.8mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical) 3.6mm: 103.6° × 86.9° × 46.3° (diagonal × horizontal × vertical) S/N Ratio: >65dB Back Light Comp.: BLC/ DWDR Video Streaming: CVI: PAL: 1080P@25fps; 720P@25fps; NTSC: 1080P@30fps; 720P@30fps; AHD: PAL: 1080P@25fps; NTSC: 1080P@30fps TVI: PAL: 1080P@25fps; NTSC: 1080P@30fps; CVBS: PAL: 960H; NTSC: 960H Privacy Mask: Off/On (8 area, rectangle) Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input: Built-in Mic Illumination Distance: IR Distance of 20 Mtr., Smart Light Operating Temperature: -40°C ~ +55°C; Less than <95% RH (non-condensation) Power Source: 12V DC ±30% Power Consumption: Max 3.1W (12V DC, White Light on) Weatherproof Standard: IP67 Dimension: φ97 mm × 86.6 mm Casing: Plastic
