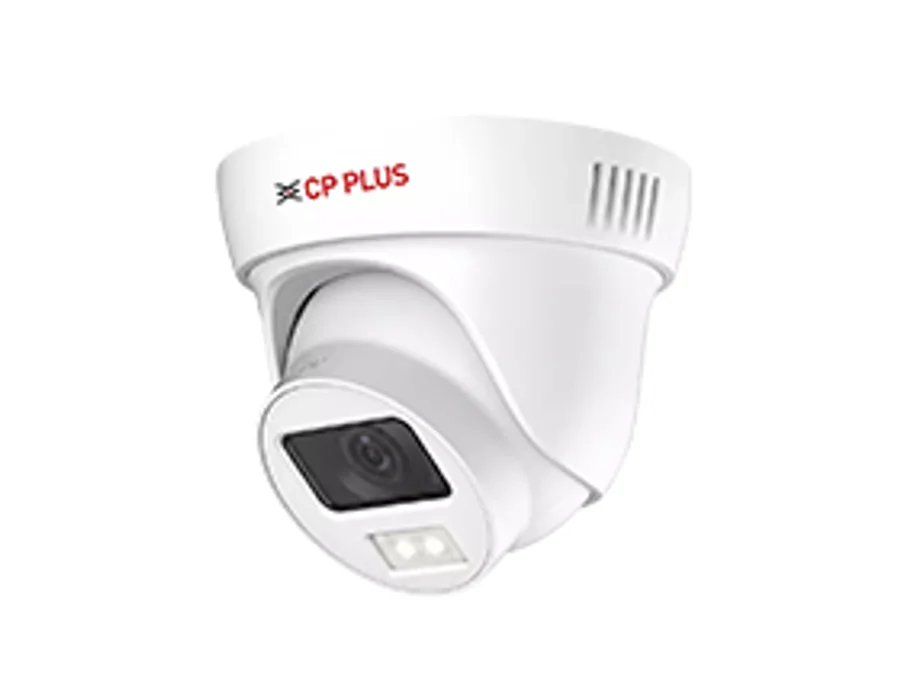

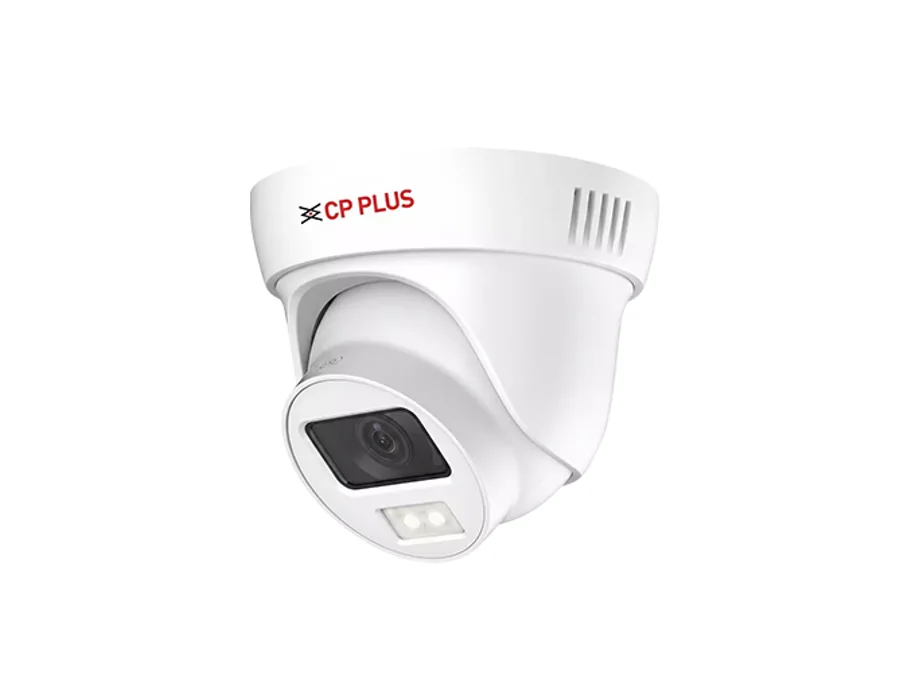

CP Plus CP-GPC-DA24PL2C-SE-V2 – 2.4MP Full-color Guard+ Dome Camera - 20Mtr.

2.4MP Full-color Guard+ Dome Camera - 20Mtr. Features 1/2.8" 2.4MP CMOS Image Sensor (0.9071 centimetres) Max. 2.4MP@25/30fps DWDR, Day/Night, 3D NR, BLC, HLC, AWB, AGC 3.6mm Fixed lens (2.8mm Optional) IR Range of 20 Mtr., IP67 Support 24/7 color Imaging Support Built-in Mic CVI/CVBS/AHD/TVI switchable Specifications Image Sensor: 1/2.8 Effective Pixels: 1920 (H) × 1080 (V) Minimum Illumination: PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s Shutter Speed: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s White Balance: Auto, Area white balance Lens: 3.6mm (2.8mm Optional) Lens Type: Fixed-focal Mount Type: M14 Max Aperture: F1.6 IR Control: Auto/Manual IR Mode: Smart Light IR Number: 2 (Warm light) IR Range: IR Range of 20 Mtr. Iris Control: Fixed S/N Ratio: >55dB Close Focus Distance: 3.6 mm: 1.3 m 2.8 mm: 0.7 m DORI Distance: 3.6mm: 59.0 m (Detect), 23.6 m (Observe), 11.8 m (Recognize), 5.9 m (Identify) 2.8mm: 42.2 m (Detect), 16.9 m (Observe), 8.4 m (Recognize), 4.2m (Identify) Noise Reduction: 3D NR Gain Control (AGC): Auto Back Light Comp.: BLC/ HLC/ DWDR Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Angle of View: 3.6 mm: H: 84°; V: 43°; D: 102° Resolution: 1080P (1920 × 1080), 960H (960 × 576/960 × 480) Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port Video Streaming: CVI: PAL: 1080p@25 fps, NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps, NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps, NTSC: 1080p@30 fps CVBS: PAL: 960H, NTSC: 960H Mirror: Support Privacy Mask: Off/On (8 area, rectangle) Power Source: 12 VDC ± 30% Power Consumption: Max 3.3 W (12 V DC, LED on) Operating Temperature: –40°C to +60°C Operating Humidity: <95% (RH), non-condensing Storage Temperature: –40°C to +60°C Weatherproof Standard: IP67 Dimension: Φ97.1 mm × 93.8 mm Weight: 170g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
