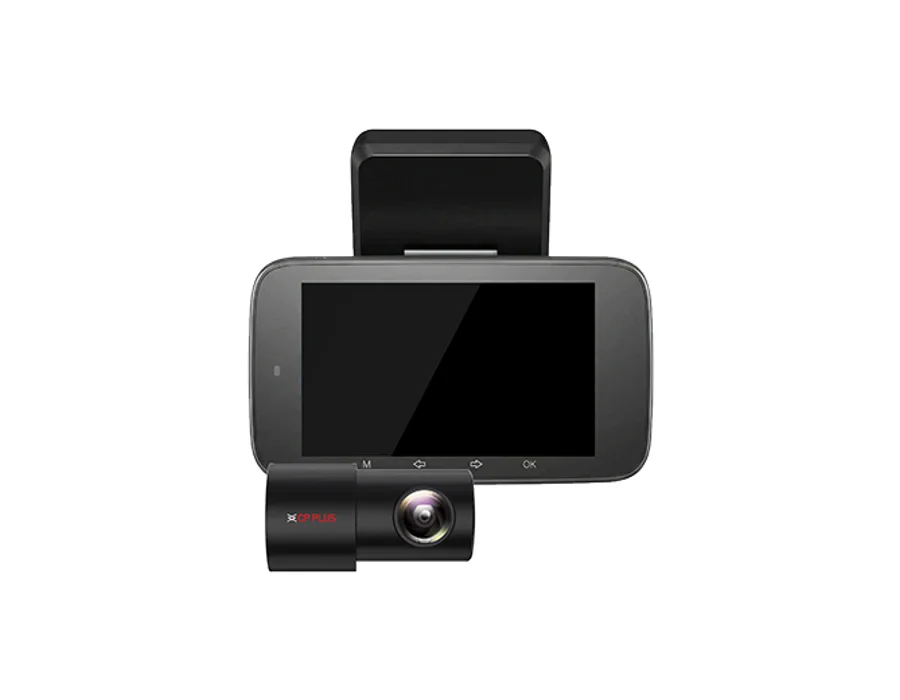

CP Plus CP-KF89B – CarKam 4K Ultra HD with Rear Camera, Hardwire Kit
CP Plus

CP Plus CP-KF89B – CarKam 4K Ultra HD with Rear Camera, Hardwire Kit

SKU: CPPLUS-2258 · Model: CP-KF89B

Price on request
  • CarKam 4K Ultra HD with Rear Camera, Hardwire Kit

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

CarKam 4K Ultra HD with Rear Camera, Hardwire Kit Features 4K Resolution Support SD Card upto 1TB (Class 10 U3) Sony Starvis 2 G-Sensor (Emergency Recording) Time Lapse 24/7 Parking Monitoring Built-in GPS Built-in Display Specifications Angle of view: Front Camera: H=112°, D=129°, V=61° ; Rear Camera: H=102°, D=124°, V=53° Image Sensor: Front Camera: 1/1.8” Image sensor (1.411 centimeters) , ; Rear Camera: 1/2.9” Image sensor (0.8758 centimeters) Lens: Front Camera: 4.05 mm, ; Rear Camera: 3.35 mm Max. Aperture: Front Camera: F1.8, ; Rear Camera: F2.0 Compression: Front Camera: H.265 Resolution: Front Camera: 8MP, ; Rear Camera: 2MP Screen type: IPS (In-Plane Switching) Screen size: 3" (7.62 centimeters) Screen Resolution: 360 x 640 (RGB) Video Format: MP4 Video resolution: 8MP (3840 x 2160P)@25fps + 2MP (1920 x 1080P)@25fps Smart Features: Voice Prompt, G-Sensor (Emergency Recording), Built-in GPS, Parking Mode, WDR Parking Mode: Support (Type C Hardwire Kit) Connectivity: AP Mode (Dashcam creates its own Wi-Fi hotspot/ Direct Wi-Fi to phone) Mobile App: CarKam (Available for iOS and Android) SD Card: 1TB Max. (Class 10 U3 Category) Microphone: Support Speaker: Support Photo Format: JPG Super Capacitor: Support Casing: PC+ABS Power Source: 5V/3.4A Type C Operating Temperature: -10°C~60°C Storage temperature: -10°C~60°C Dimensions: 93.25mm x 50.75mm x 41mm(including lens) Certificates: ISO 9001: 2015, ISO 14001 : 2015, ISO 45001 : 2018, ISO 20000-1 : 2018, ISO 50001:2018, CE, FCC and RoHS, BIS Input voltage: 12V-24V Input Voltage Range: 11.60V-25V Input Low Voltage Protection: 11.60V±0.2V, 23.60V±0.2V Input Wire connection: Yellow (B+), Black (GND), Red (ACC) Output Voltage Range: 4.75-5.40V Output Rated Load: 12.5W Output Connector Type: Type-C Protections: SCP, OCP, Input Low voltage cut-of Ripple and Noise: ≤250mV Efficiency: ≥80% Overshoot: ±10% OCP: ≥4.5A Working Ambient Temperature: -20°C to 50°C Storage Ambient Temperature: -30°C to 80°C

Full specifications
OCP≥4.5A
LensFront Camera: 4.05 mm, ; Rear Camera: 3.35 mm
CasingPC+ABS
SD Card1TB Max. (Class 10 U3 Category)
SpeakerSupport
Overshoot±10%
Dimensions93.25mm x 50.75mm x 41mm(including lens)
Efficiency≥80%
MicrophoneSupport
Mobile AppCarKam (Available for iOS and Android)
ResolutionFront Camera: 8MP, ; Rear Camera: 2MP
CompressionFront Camera: H.265
ProtectionsSCP, OCP, Input Low voltage cut-of
Screen size3" (7.62 centimeters)
Screen typeIPS (In-Plane Switching)
CertificatesISO 9001: 2015, ISO 14001 : 2015, ISO 45001 : 2018, ISO 20000-1 : 2018, ISO 50001:2018, CE, FCC and RoHS, BIS
ConnectivityAP Mode (Dashcam creates its own Wi-Fi hotspot/ Direct Wi-Fi to phone)
Image SensorFront Camera: 1/1.8” Image sensor (1.411 centimeters) , ; Rear Camera: 1/2.9” Image sensor (0.8758 centimeters)
Parking ModeSupport (Type C Hardwire Kit)
Photo FormatJPG
Power Source5V/3.4A Type C
Video FormatMP4
Angle of viewFront Camera: H=112°, D=129°, V=61° ; Rear Camera: H=102°, D=124°, V=53°
Input voltage12V-24V
Max. ApertureFront Camera: F1.8, ; Rear Camera: F2.0
Smart FeaturesVoice Prompt, G-Sensor (Emergency Recording), Built-in GPS, Parking Mode, WDR
Super CapacitorSupport
Ripple and Noise≤250mV
Video resolution8MP (3840 x 2160P)@25fps + 2MP (1920 x 1080P)@25fps
Output Rated Load12.5W
Screen Resolution360 x 640 (RGB)
Input Voltage Range11.60V-25V
Storage temperature-10°C~60°C
Output Voltage Range4.75-5.40V
Input Wire connectionYellow (B+), Black (GND), Red (ACC)
Operating Temperature-10°C~60°C
Output Connector TypeType-C
Storage Ambient Temperature-30°C to 80°C
Working Ambient Temperature-20°C to 50°C
Input Low Voltage Protection11.60V±0.2V, 23.60V±0.2V
