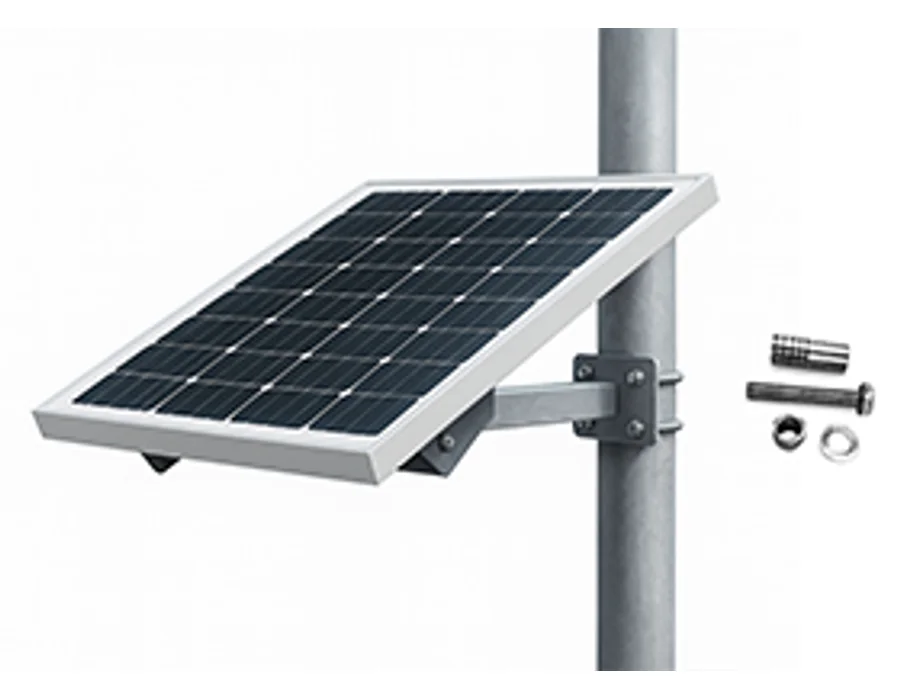

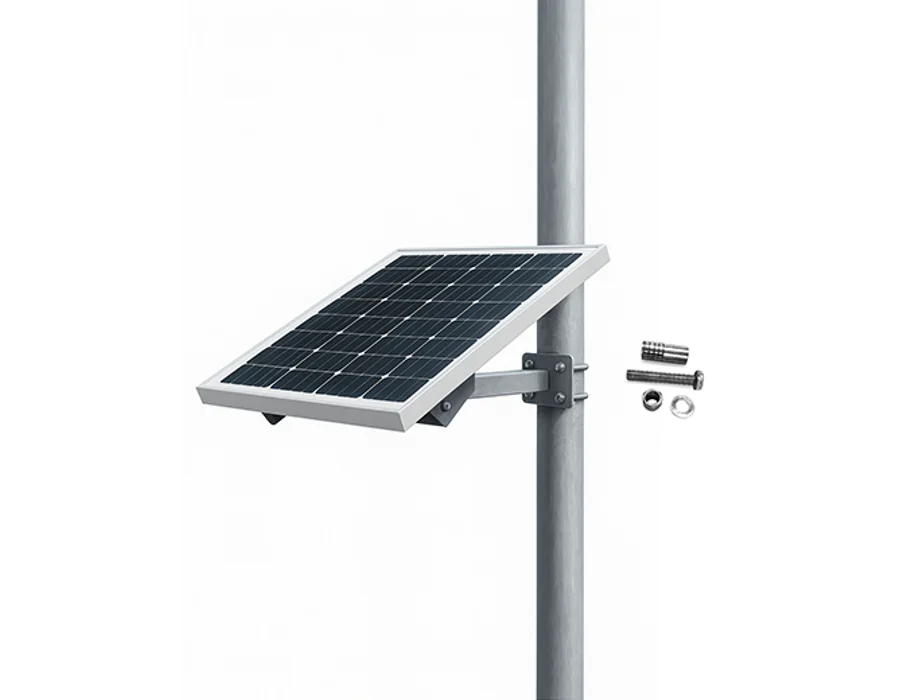

CP Plus CP-SL06K – Solar Panel Kit with built-in Battery

Solar Panel Kit with built-in Battery Features The maximum power output is 30W. Backup time 12 Hours (Assumption based on 76.8Wh Battery Capacity and 5.5 Watt continuous load) Indications LED Battery charging: Green Blink Indications LED Full charge: Green ON Indications LED Battery discharge: Red ON Specifications Cell Type: Monocrystalline No. of cells: 32 Open circuit voltage: 22.9 V+/- 10% Short circuit current: 1.59 A +/- Voltage at Maximum power: 19.25 V +/- 10% Current at Maximum power: 1.56 A +/- 10% Maximum Power: 30 W Nominal Operating Cell Temperature: 45 °C ± 2 °C Panel operating Temperatures: -20 °C to +65 °C Dimensions: 510mm x 425mm x 17mm Charge current: Up to 1.5 A (Depends on Solar irradiation and Battery SOC) Configuration: 4S-1P Capacity: 76.8Wh Charge Cutoff Voltage: 14.6V +/- 10% Cycle Life: 1000 @ 90% DOD Working Temperature: 0°C~60°C (Discharge), 0°C~45°C (Charge) Battery packaging: PVC Dimension: 70 mm x 130 mm x 35 mm (±10) mm Voltage During Charging: 12V (+/-10%), Will be adjusted slightly based on Cable length Voltage During Discharging: 12V (+/- 10%), Will be adjusted slightly based on Cable length Maximum Load Current During Charging: 1A Cable Length: 3 Mtr. Load: 12 Watt Camera load (Load varies from 2.65 Watt to 10 Backup time: 12 Hours (Assumption based on 76.8Wh Battery Capacity and 5.5 Watt continuous load) Battery backup may vary based on the change in Power consumption LED: 1.Battery charging: Green Blink 2.Full charge: Green ON 3.Battery discharge: Red ON Battery primary protection: Using a separate PCB inside the battery pack to protect from all kinds of faults and issues men t ioned below. 1.Over current and Short circuit protection 2.Over voltage protection 3.Under voltage protection 4.Over charge protection 5.Deep discharge protection 6.Over temperature protection Fasteners: U-Bolt – 101.6 mm, Hose Clamp – 150 mm Dimension.: 550 mm x 450 mm x 105 mm Output port: Cable with compatible Power jack

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
