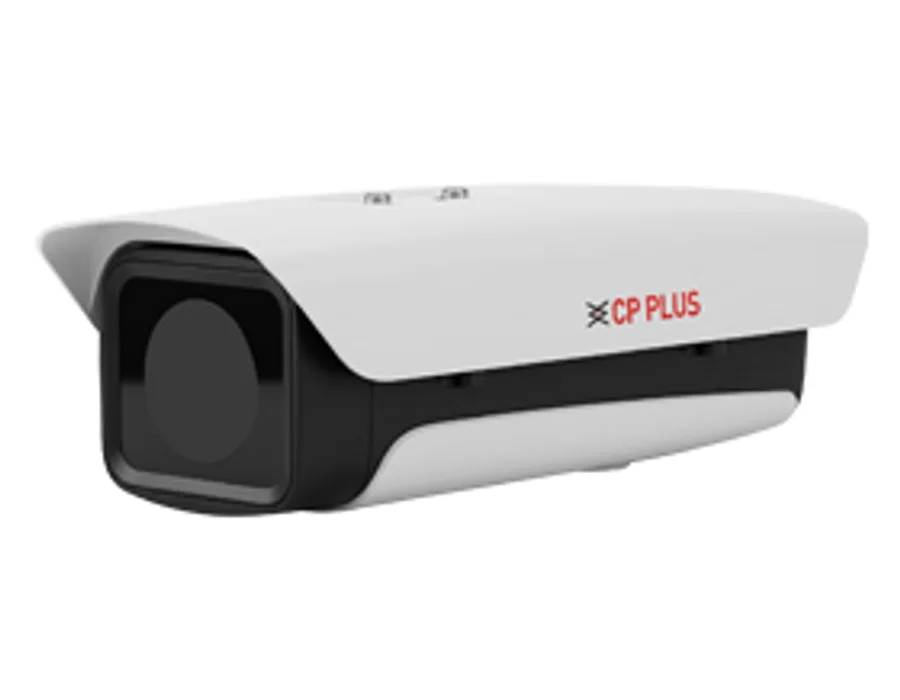

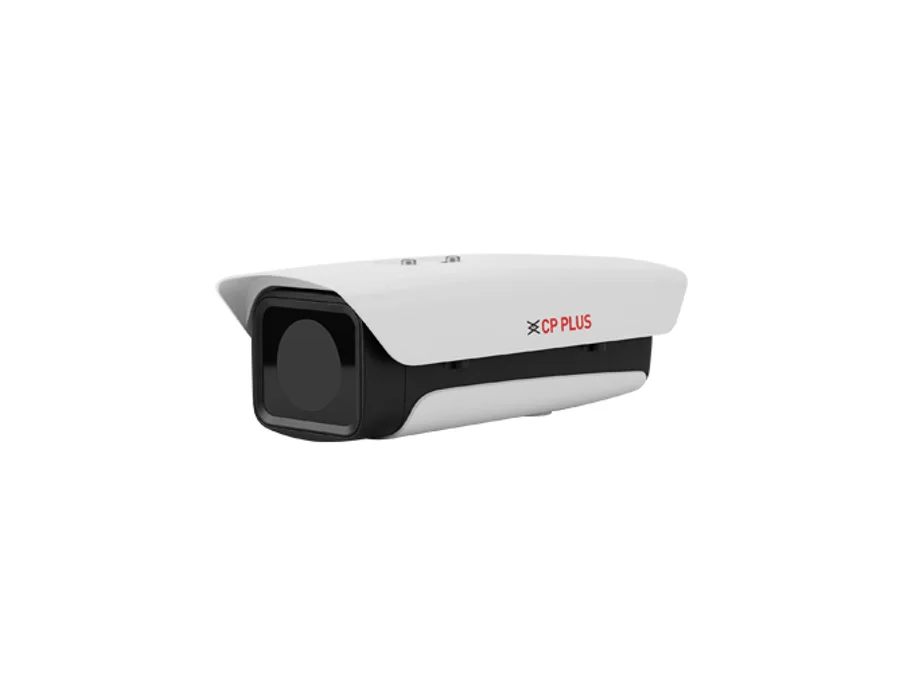

CP Plus CP-UA-H14B-V3 – 14” Vandal Proof Camera Housing

14” Vandal Proof Camera Housing Features IP66, IK10 Housing Water-proof coating film Indoor/Outdoor Housing Built-in heating and cooling system Specifications Auto Temperature Control: Heating mode: ON: 5±5 °C/OFF: 15±5 °C ; Cooling mode: ON: 37±5 °C/OFF: 20±5 °C Anti-corrosion: Basic Protection DIP Switch: Support Surge Protection Grade: Common mode: 4 kV ; Different mode: 2 kV Alarm Input: 2, used to control the IR light and wiper Alarm Output: 2, used to control IR feedback and washer modules RS-485: 1, used to control the IR light and wiper Weatherproof Standard: IP66, IK10 Internal Usable Space: 280 mm × 115 mm × 85 mm Screw Thread Type: G1/2 Appearance Color: White top cover and black housing Window Dimension: Φ59.4 mm Power Consumption: 15.5 W (without camera), Heater: 10.9 W, Fan: 0.2 W Power Source: 24 VDC/24 VAC/36 VDC (the device requires an external power supply) Power Supply for Camera: 12 VDC (12 VDC port that outputs power and provides power for the internal camera) Operating Temperature: –40°C to +60°C (–40°F to +140°F) Operating Humidity: <90% (RH) Storage Temperature: –40°C to +60°C (–40°F to +140°F) Storage Humidity: 10%–90% (RH) Casing: The top cover is made of plastic PC material and the housing is built of die-cast aluminium Dimension: 404.3 mm × 163.8 mm × 131.8 mm Weight: 2400g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
