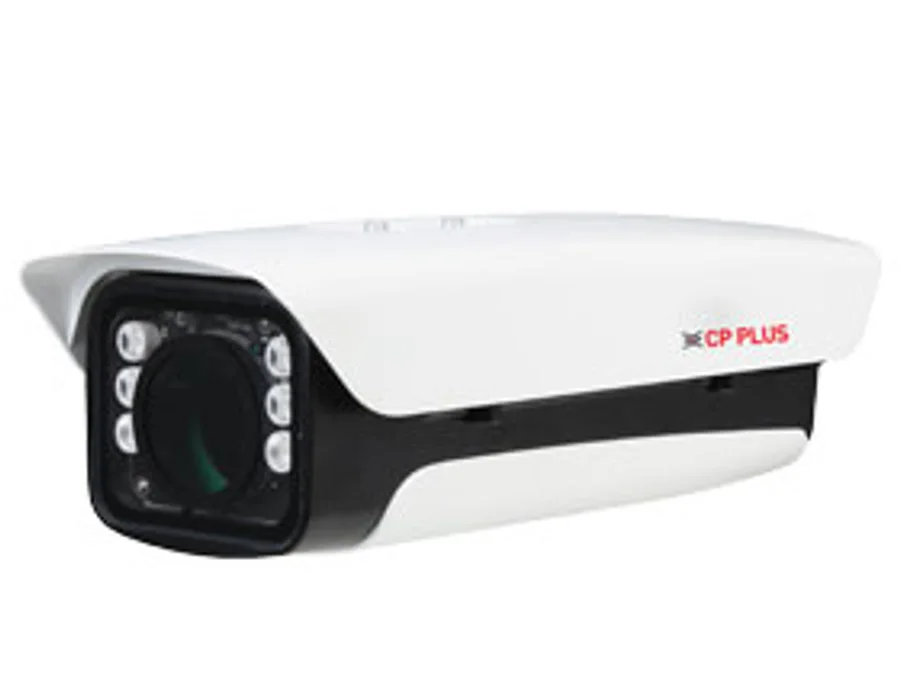

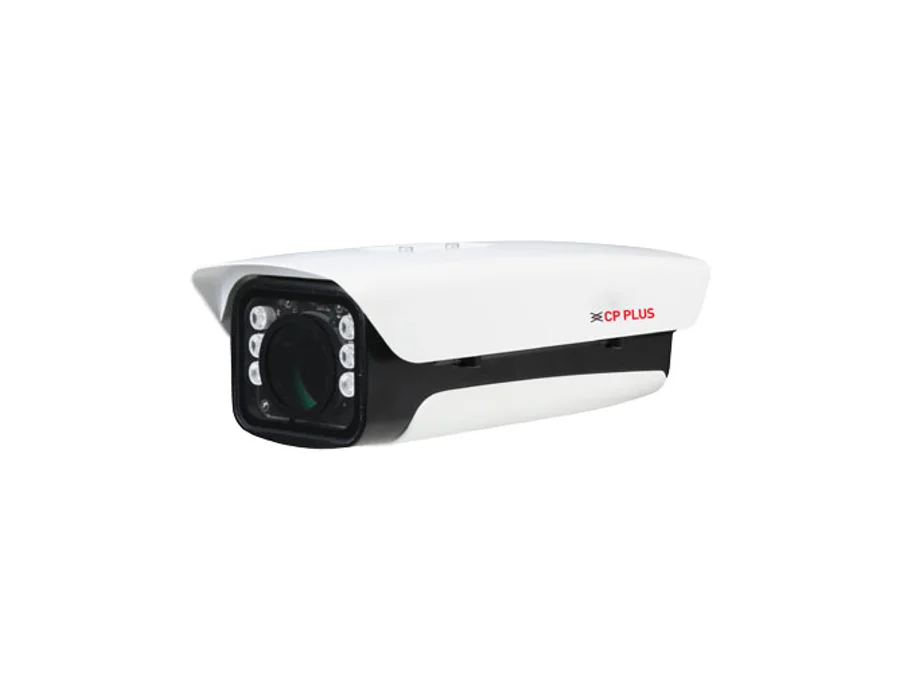

CP Plus CP-UA-H14L100B-V – 14” Vandal-Proof IR Housing
CP Plus

CP Plus CP-UA-H14L100B-V – 14” Vandal-Proof IR Housing

SKU: CPPLUS-1222 · Model: CP-UA-H14L100B-V

Price on request
  • 14” Vandal-Proof IR Housing

In Stock

Enquire now
Enquire on WhatsApp

Enter your PIN code to find delivery options and a nearby store.

Overview

14” Vandal-Proof IR Housing Features 14” IR, Housing IP67, IK10, Vandal-proof Water-proof coating film Neat & Integrated design Specifications Material: Aluminum (case) & PC (others) Dimension (WHD): 404mm x164mm x132mm IR: 0~100m Operating Temperature: Set: -40ºC ~ 60ºC Heater: ON: <+5ºC(+41°F)/ OFF: +5ºC(+41°F) Cooler: ON: 37±1ºC(98.6±33.8°F)/ OFF: 20±1ºC(68±33.8°F) Weatherproof Standard: IP67, IK10 Power Supply: AC24V/5A Net Weight(g): 3.1Kg Power Consumption: 55W (Without camera) Humidity: ≤90% RH Weight: 3.1Kg

Full specifications
IR0~100m
Weight3.1Kg
Humidity≤90% RH
MaterialAluminum (case) & PC (others)
Power SupplyAC24V/5A
Net Weight(g)3.1Kg
Dimension (WHD)404mm x164mm x132mm
Power Consumption55W (Without camera)
Operating TemperatureSet: -40ºC ~ 60ºC Heater: ON: <+5ºC(+41°F)/ OFF: +5ºC(+41°F) Cooler: ON: 37±1ºC(98.6±33.8°F)/ OFF: 20±1ºC(68±33.8°F)
Weatherproof StandardIP67, IK10
What’s in the box

Confirm the supplied items with our team.

Warranty

Warranty information will be confirmed before purchase.
