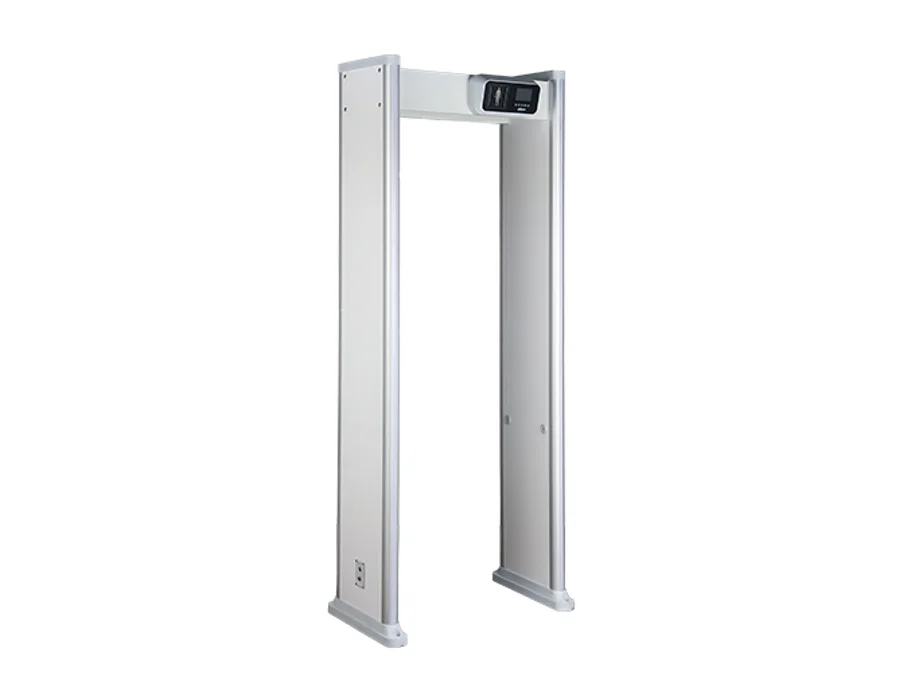

CP Plus CP-UA-MD3506-W – Walk-through Metal Detector

Walk-through Metal Detector Features 3.5 inch LCD with an interactive, user-friendly interface. Minimum detect target: One coin. Monitor and display the real-time signal strength of environmental interference. Automatically searches operating frequency (20 levels available). Counting passing number, pass/return numbers, and alarm number. Pass/Return statistics, alarm statistics, and searching by day. Safe low-voltage design. Reliable and stable aviation connector. 9 alarm tones with 10 adjustable volume levels, mute mode and alarm duration: 0–10 s. 255 adjustable sensitivity levels Separate parameter configuration for 12 supported scenarios. IR remote controller Multiple IR detection modes. Supports lead-acid batteries (optional). Easy-to-install modular design. Specifications Precise Positioning: 6 overlapping detection zones, bilateral transmission and receipt of detection signals, 1 panel indicator lights Zone Indication: 6 independent zones, and multiple metal items can be located simultaneously IR Sensor: Infrared sensor can reduce false alarms; automatic alarm statistics and pass/return statistics Adjustable Sensitivity: 255 adjustable sensitivity levels in each detection zone (sensitivity increases by levels) Remote Control: Comes with a infrared remote controller with the maximum remote control range of 2m (6.56ft) Leakage Current: < 0.5 mA, complying with safety requirements for electronic devices Operating Voltage: 12 V DC, power adapter (included): 100 V–240 V AC, 50/60 Hz Maximum Power Consumption: 11 W Typical Power Consumption: 7.8W Power Output: 12V DC Operating Temperature: -20 °C to +65 °C (–4 °F to +149 °F) Operating Humidity: 0%–95% (RH), non-condensing Storage Temperature: -20 °C to +65 °C (–4 °F to +149 °F) Storage Humidity: 0%–95% (RH), non-condensing Power Button: Power switch on both door panels, and metal detection power switch on the front panel Indicator Light: One green indicator Environmental Noise: Monitors and displays real-time signal strength of environmental interferences Installation: Vertical mounting Passageway Interior Size: 2003 mm x 720 mm x 393 mm (87.0 Overall Exterior Size: Bare: 2208 mm × 866 mm × 488 mm (86.93 Packing Size: 2271 mm × 695 mm × 215 mm (89.41 Gross Weight: 47Kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
