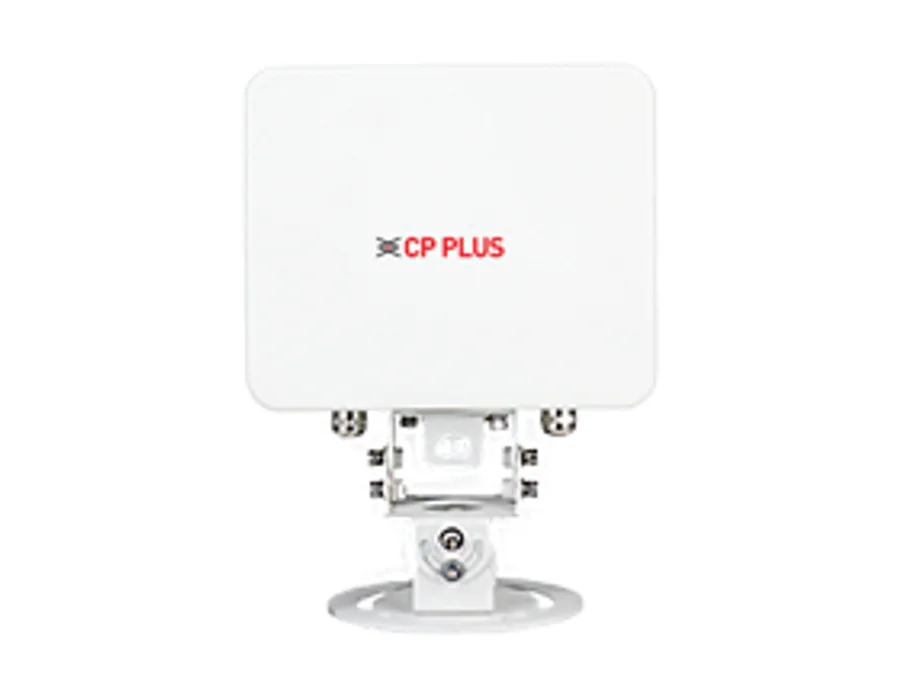

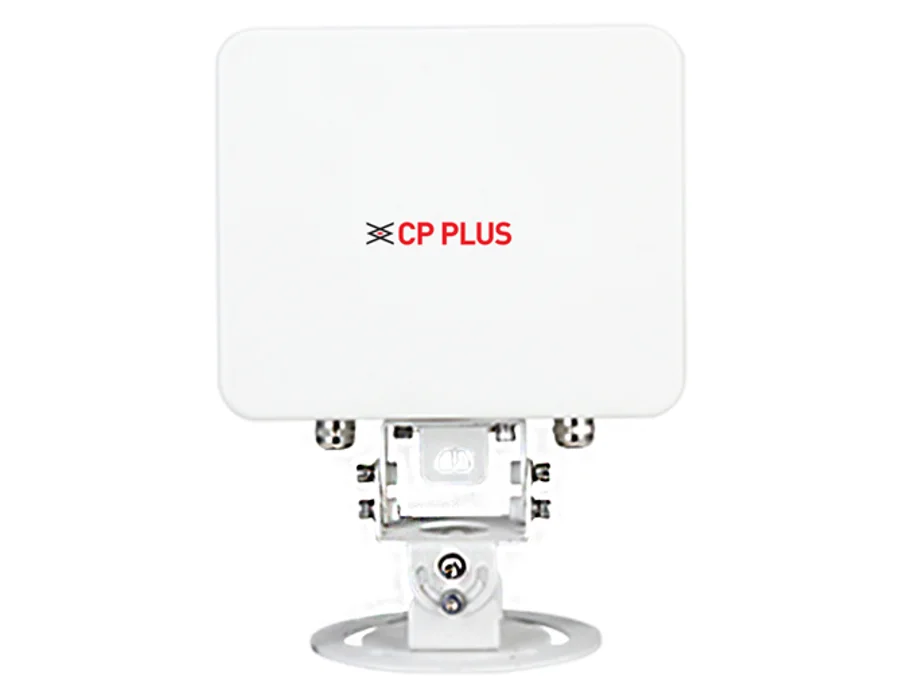

CP Plus CP-UA-RD24M – Multilane Radar Detector

Multilane Radar Detector Features One single radar covers up to 32 vehicles of 1–4 lanes. Precisely detects speed and position of vehicles when they are 18 m–35m (59.1 ft–114.8 ft) away. Flexible to install: Either installed over the lane or at the side of a lane. Special functions such as detection of illegal lane change and wrong-way driving. The detection performance is not impaired by adjacent lane or vehicles in front of or behind the target vehicle. Specifications Lane Coverage: 1–4 lane (s) (3.75 m (12.30 ft) standard lane) Speed Measurement Range: 10 km/h–250 km/h Speed Measurement Accuracy: Simulated Speed Measurement Error Range: ±2 km/h On-site Speed Measurement Error Range: Vehicle speed < 100 km/h: ±2 km/h Vehicle speed ≥ 100km/h: ±2% Detection Target: Up to 32 vehicles Maximum Detection Distance: 35m Minimum Detection Distance: 18m Installation Height: 5m–8m Position Detection Accuracy: ± 1m Overspeed Capture Rate: ≥ 95% (when traffic is smooth) Lane Recognition Rate: ≥ 95% Frequency: 24 GHz–24.25 GHz Response Time: ≤ 50 ms Transmit Power (EIRP): 20 dBm (100 mW) Modulation: FMCW + Monopulse + Doppler, 3 transceiving antennas Bandwidth: 250 MHz Protection: IP66 Radar Beam Angle: Horizontal: 20° (-3dB) Vertical: 18° (-3dB) Operating Voltage: 12V DC Average Power Consumption: < 3.5W Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F) Working humidity: 10%RH – 90%RH, no condensation Dimension: 155 mm × 130 mm × 54.9 mm (6.10'' × 5.12'' × 2.16'') (L × W × H) Weight: 2.2kg

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
