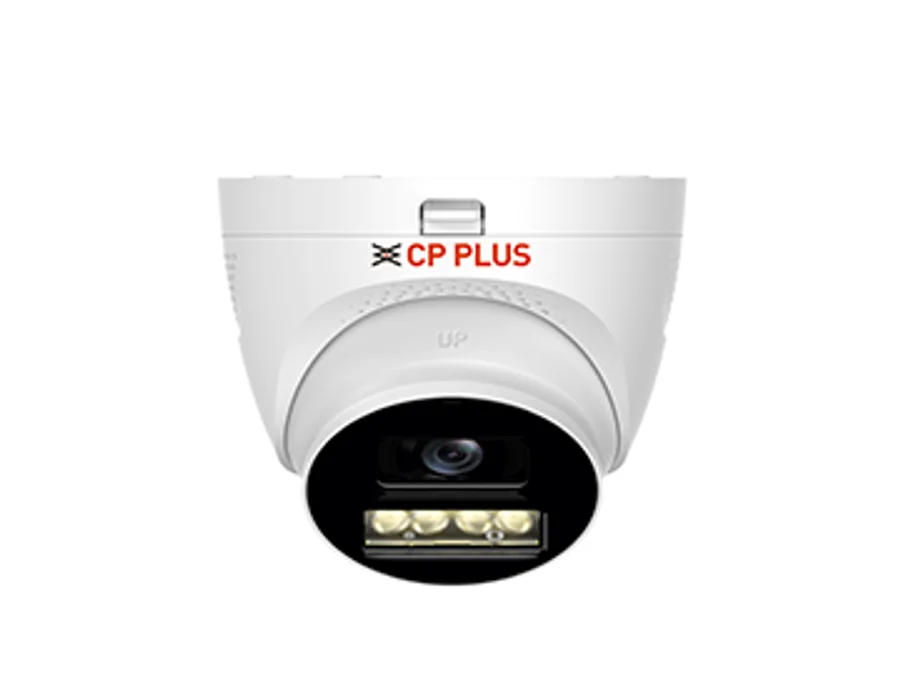

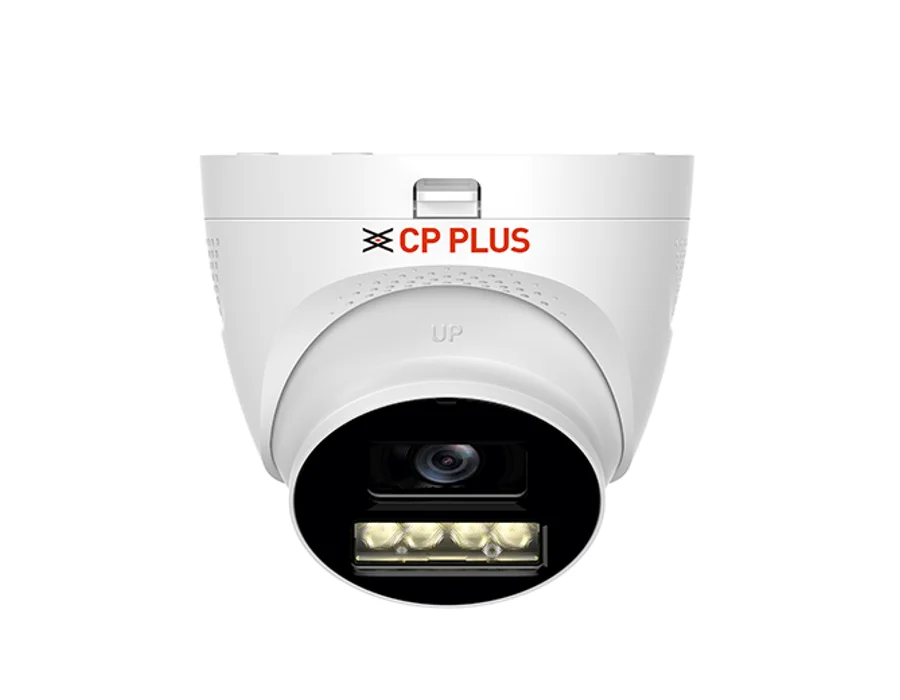

CP Plus CP-UMC-DA24L4-L – 2.4MP Dual Light Dome Camera - 40Mtr.

2.4MP Dual Light Dome Camera - 40Mtr. Features 1/3" 2.4MP PS CMOS Image Sensor (0.84667 centimeters) Max. 2.4MP (1920×1080)@30fps DWDR, Day/Night (ICR), 3D NR, BLC, HLC 3.6mm Lens (2.8 mm optional) IR Range of 40 Mtr., Smart IR, Smart Dual Light Support Two-way Talk*, IP67 Specifications Image Sensor: 1/3" 2.4MP PS CMOS Image Sensor (0.84667 centimeters) Max. Resolution: 1920 (H) × 1080 (V) Resolution: 2MP (1920 × 1080), 960H (960 × 576/ 960 × 480) Shutter Speed: PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) IR Control: Auto, Manual S/N Ratio: >55dB Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Audio: Built-in Mic, up to 8 m Two-way talk: Support* IR Number: 4 (Multi-core light) IR: IR Range of 40 Mtr. Lens Type: Fixed-focal Lens Mount: M12 Lens: 3.6mm Lens (2.8mm Optional) Max. Aperture: F2.0 Close Focus Distance: 3.6 mm: 0.7 m; 2.8 mm: 0.5 m White Balance: Auto DORI Distance: Lens 3.6 mm: 49.9 m (Detect), 20.0 m (Observe), 10.0 m (Recognize), 5.0 m (Identify); Lens 2.8 mm: 40.6 m (Detect), 16.2 m (Observe), 8.1 m (Recognize), 4.1 m (Identify) Gain Control (AGC): Auto, Manual Day/Night: Auto(ICR)/Color/B/W Back Light Compensation: BLC/ HLC/ DWDR Noise Reduction: 2D NR Frame Rate: CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H IR Mode: Smart IR&WL, WL Mode, IR Mirror Function: Support Camera Audio: CVI, TVI Anti-corrosion Level: Basic Protection Power Source: 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one cam era) Power Consumption: Max 9.37 W (12 VDC, IR on) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: <95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: <95% (RH), non-condensing Casing: Dome (metal + plastic) + plastic enclosure Dimension: 109.9 mm × 105.9 mm

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
