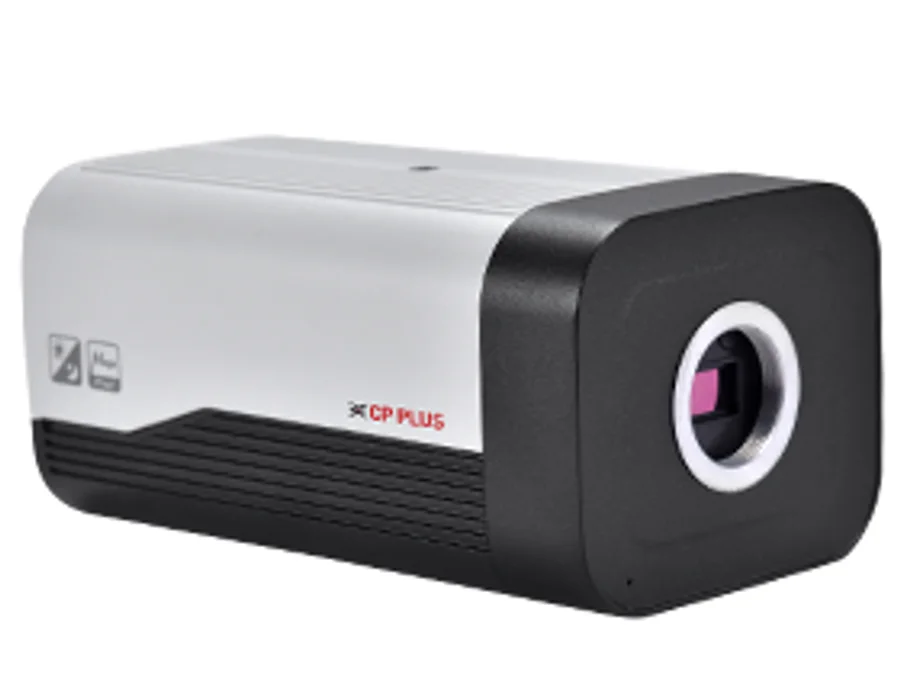

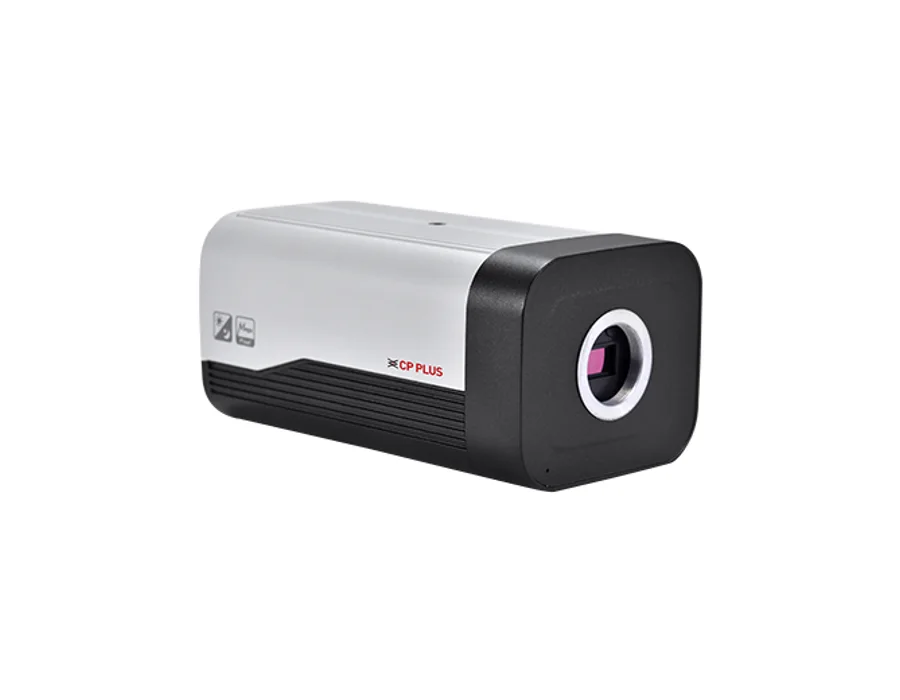

CP Plus CP-UNC-BE21C-VMDS-Q – 2MP Full HD WDR Network Box Camera

2MP Full HD WDR Network Box Camera Features 1/2.9” 2MP PS CMOS Image Sensor (0.8758 centimeter) Max. 2MP (1920 x 1080)@1-25/30fps C/CS Mount Lens Instastream, H.265, H.264, H.264B, H.264H, MJPEG Support Quad Stream WDR(120dB), Day/Night (ICR) , 3D NR, Defog, ROI, EIS, AWB, AGC, BLC, HLC 2/1 Alarm in/out, 1/1 audio in/out Support Micro SD Card, Built-in Mic, PoE Specifications Image Sensor: 1/2.9” 2MP PS CMOS Image Sensor (0.8758 centimeter) Minimum Illumination: Colour Mode 0.0021 Lux @F1.6, Night Mode (Black & White) 0.00021Lux @F1.6 Effective Pixels: 1920 (H) × 1080 (V) Electronic Shutter: Auto/Manual, 1/3 s–1/100000 s RAM: 512 MB ROM: 128 MB White Balance: Auto, Natural, Street Lamp, Outdoor, Manual, Custom area Lens Mount: C/CS Gain Control (AGC): Auto Back Light Compensation: BLC/ HLC/ WDR(120dB) Day/Night: Auto(ICR)/ Color/ B/W Image Rotation: 0°/90°/180°/270° S/N Ratio: > 56dB Video Format: PAL/NTSC Video Compression: Instastream, H.265, H.264, H.264B, H.264H, MJPEG (only supported by sub stream) Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Noise Reduction: 3D NR Motion Detection: OFF/ON (4 Areas, Rectangular) Privacy Mask: Off/On (4 Area) Audio: Built in Mic Audio Input: 1 Channel Audio Output: 1 Channel Alarm IN: 2 Channels in: Wet contact, 5 mA 3–5 VDC Alarm Out: 2 Channels out: Dry contact, 1,000 mA 30 VDC/500 mA 50 VAC Overlay: Privacy Masking, Channel Title, Time Title, Location, Custom Title, Face Statistics Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, SMTP V3, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T) IVS (Perimeter Protection): Intrusion, Tripwire, Abandon Object, Crowd gathering, Missing Object, Loitering Detection, IMD (support the classification and accurate detection of vehicle and human); loitering detection People Counting: Tripwire people counting, generating and exporting report (day/week/month/year), People counting in area and queue management, generating and exporting report (day/week/ month), 4 rules can be set for tripwire, People counting in area and queue management. Face Detection: Face detection, Target Box Overlay, Remove Duplicate, Face Cutout(Face/ One Inch Photo/ Custom) , Snapshot Mode(Real- Time/ Optimized/ Quality Priority), Optimal face snapshot upload; face attributes extraction including 6 attributes and 8 expressions; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; Optimized Duration, Quality Threshold, Snapshot Sensitivity Audio Compression: PCM, G.711a, G.711Mu, G.726, AAC Ethernet: RJ-45 (10/100Base-T) Resolution: 2MP(1920 × 1080) / 1.3M (1280 × 960) / 1MP(1280 × 720) / D1 (704 × 576 / 704 × 480) / VGA (640 × 480) / CIF (352 × 288 / 352 × 240) Event Alarm: No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, video tampering, Tripwire, Intrusion, Abandoned object, Missing object, Loitering detection, Crowd gathering, Scene changing, Audio detection, Voltage detection, External alarm, Face detection, IMD, People counting in area, Stay detection, People counting, Abnormal Number of People, Queue people number alarm, Queue time alarm, Security exception, Defocus detection Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption User/ Host: 20 (Total bandwidth: 80 M) Browser: Microsoft Edge and Chrome Mirror Function: Off/On stream Capability: Quad Stream Frame Rate: Main stream: 1080p@(1–25/30 fps), 1.3M@(1–25/30 fps), 720p@(1–25/30 fps) Sub stream 1: D1@(1–25/30 fps), VGA@(1–25/30 fps), CIF@(1–25/30 fps) Sub stream 2: 1080p@(1–25/30 fps),1.3M@(1–25/30 fps), 720p@(1–25/30 fps), D1@(1–25/30 fps) Sub stream 3: D1@(1– 25/30 fps), VGA@(1–25/30 fps), CIF@(1–25/30 fps) Defog: Support Storage: SFTP, NAS, Micro SD card (support max. 512 GB) Hardware Reset Point: Support Certificates: MTBF Certificate from STQC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: DC 12V (±30%), AC 24V (±30%), PoE (802.3af) Power Out: 12 VDC power output, max. current 165 mA, peak current 700 mA Power Consumption: <10W Operating Temperature: -30° C to +60° C Operating Humidity: ≤95% RH, Non condensing Storage Temperature: -40° C to +60° C Casing: Metal Dimension: 161.6mm × 86.8mm × 74.0mm Weight: 80g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
