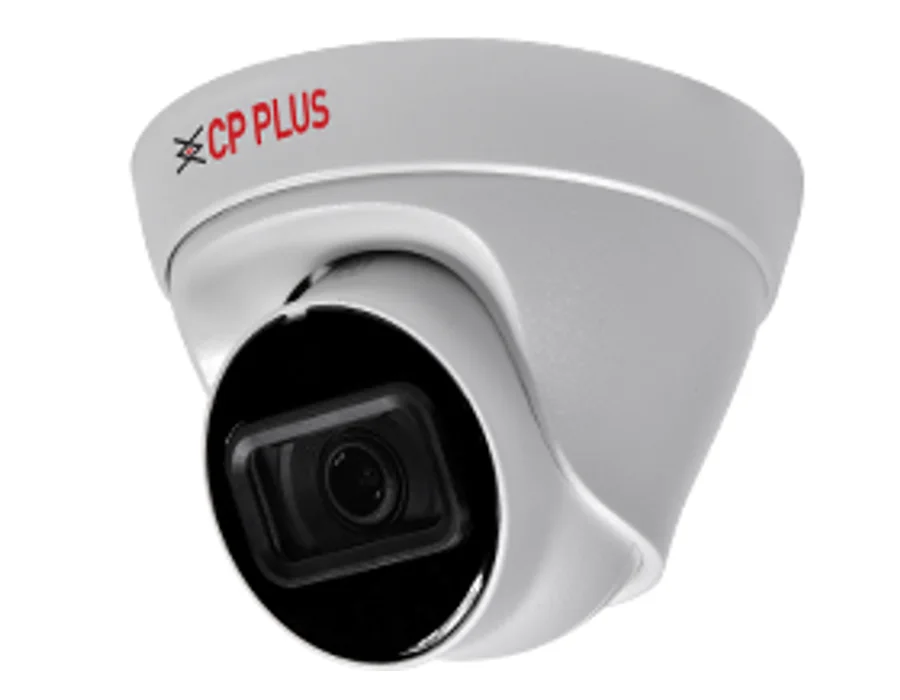

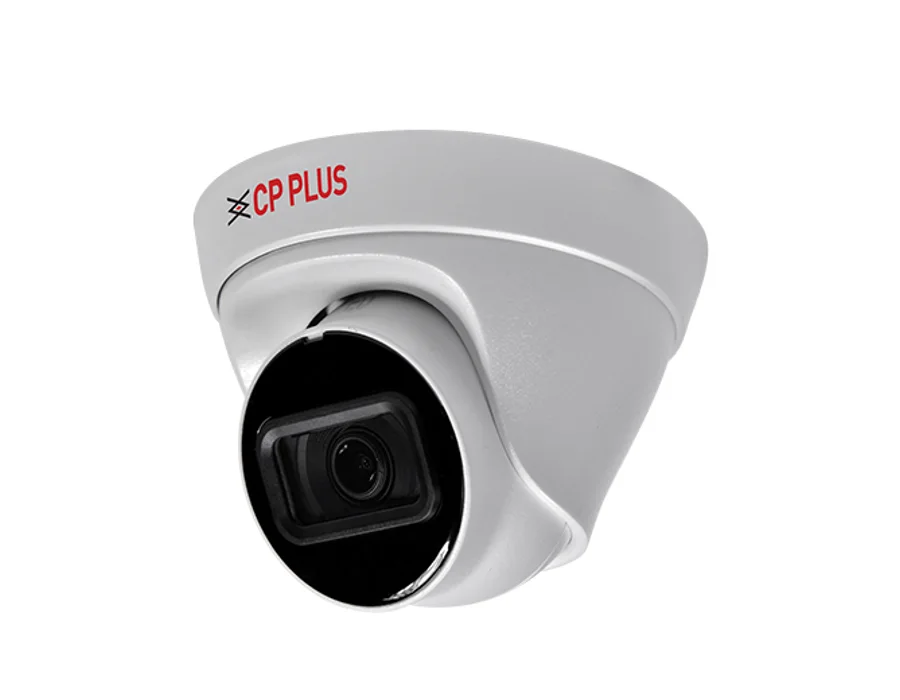

CP Plus CP-UNC-DA21L3C-Q2 – 2MP Network IR Dome Camera - 30Mtr.

2MP Network IR Dome Camera - 30Mtr. Features 1/2.9” 2MP PS CMOS Image Sensor (0.8758 centimeter) Max. 2MP (1920 × 1080)@1–25/30fps H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream Support Built-in Mic 3.6mm Lens (2.8mm optional) DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC IR Range of 30 Mtr., PoE, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.9” 2MP PS CMOS Image Sensor (0.8758 centimeter) Minimum Illumination: 0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 1920 (H) × 1080 (V) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° RAM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom Image Setting: Brightness, Contrast, Sharpness, Saturation, Gamma Lens Type: Fixed-focal Max. Aperture: F2.0 Lens Mount: M12 IR Control: Auto, Manual Smart IR: Support IR Number: 1 IR LED IR: IR Range of 30 Mtr. Day/Night: Auto(ICR)/Color/B/W Close Focus Distance: 3.6mm: 0.9m, 2.8mm: 0.6m DORI Distance: 3.6mm:- 56.3 m (Detect), 22.5 m (Observe), 11.3 m (Recognize), 5.6 m (Identify) ; 2.8mm: 45.5 m (Detect), 18.2 m (Observe), 9.1 m (Recognize), 4.6 m (Identify) Gain Control (AGC): Auto/Manual Lens: 3.6mm (2.8mm optional) Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Back Light Compensation: BLC/ HLC/ DWDR Angle of view: 3.6mm: H: 78°, V: 43°, D: 92 ; 2.8mm: H: 92°, V: 50°, D: 107° Stream Capability: Triple stream Frame Rate: Main Stream: 2MP (1920 x 1080)@1-25/30fps, 1.3MP (1280 x 960)@1-25/30fps, 720P (1280 x ; 720)@1-25/30fps ; Sub stream 1: 720P (1280 x 720)@1-25/30fps, D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA ; (640 x 480)@1-25/30fps, CIF (352 x 288/ 352 x 240)1-25/30fps ; Sub stream 2: D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA (640 x 480)@1-25/30fps, CIF (352 x ; 288/ 352 x 240)@1-25/30fps Resolution: 2MP (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480/ 704 x 576), VGA ; (640 x 480), CIF (352 x 240/ 352 x 288) Noise Reduction: 3D NR Defog: Digital defog Motion Detection: OFF/ON (4 areas, rectangular) Audio: Built-in Mic Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC OSD: Privacy Masking, Channel Title, Time Title, Text Overlay, Font Attribute, Custom Overlay Bit Rate Control: CBR/VBR Bit Rate: H.265: 24 kbps–6144 kbps ; H.264: 9 kbps–6144 kbps Protocol: IPv4, IPv6, HTTP, HTTPS, TLS V1.2,1.3, TCP, ARP, UDP, RTP, RTSP, RTSPS, RTCP, RTMP, SMTP, ; SFTP, DHCP, DNS, QoS, NTP, Unicast, Multicast, ICMP, IGMP, SSL, PPPoE, SNMP V3, InstaOn, ; Auto Connect, ONVIF (Profile S, Profile T) Video Format: PAL/NTSC SDK and API: Support Device Search Tool: IP finder OTA (Over-The-Air): Support Mirror Function: Support IMD (Intelligent motion detection): Support Both Human & Vehicle Detection Audio Sampling Rate: 8KHz Image Flip: 0°/90°/180°/270 Iris Control: Fixed Browser: IE, Chrome, Firefox User/Host: 6 (Total bandwidth: 24 M) Ethernet: RJ-45 (10/100 Base-T) Storage: FTP Weatherproof Standard: IP67 Power Source: 12 VDC (±30%); Ethernet Port (PoE) (802.3af) Power Consumption: Basic: 1.9 W (12 VDC); 2.4 W (Ethernet Port (PoE)); ; Max. (H.265 + intelligence on + DWDR+ IR intensity): 3.9 W (12 VDC); 4.7 W (Ethernet Port (PoE)) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Humidity: ≤95%(RH), non-condensing Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Casing: Metal Dimensions: 85.5 mm × 109 mm Weight: 250g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
