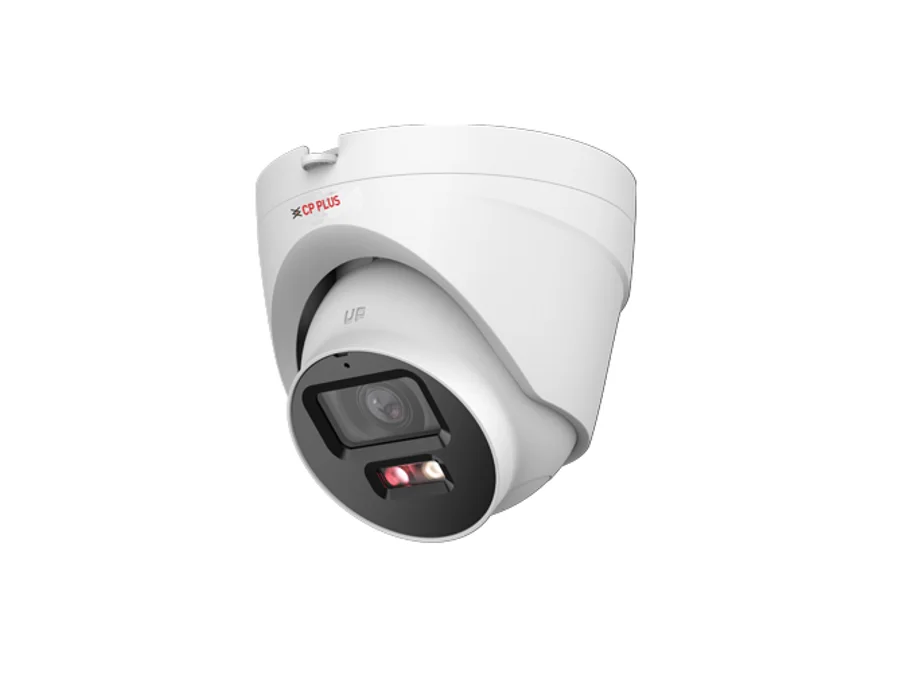

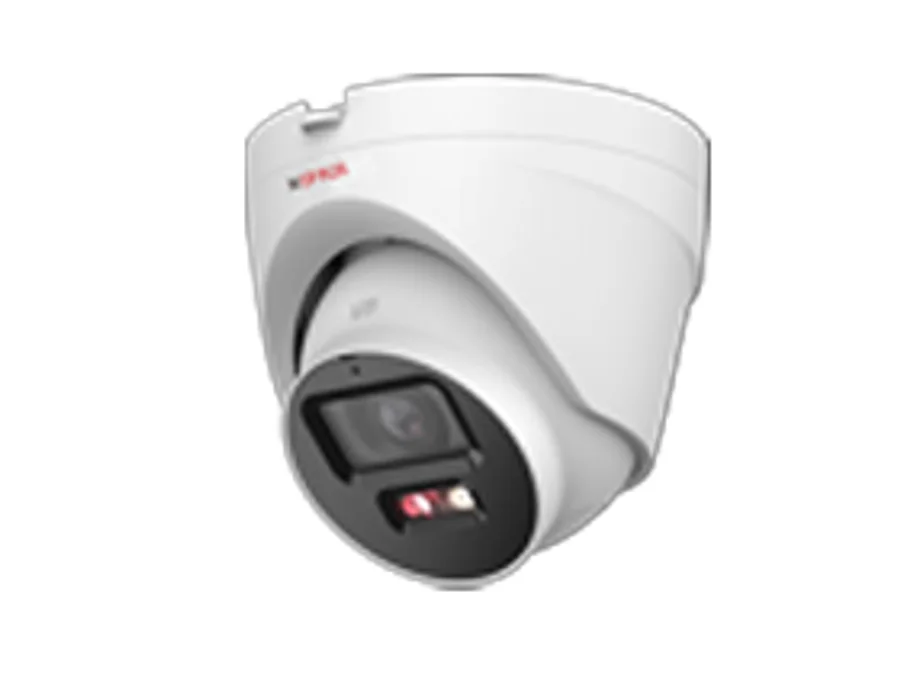

CP Plus CP-UNC-DA41L3B-D-LQ – 4MP Dual Light Dome Camera - 30Mtr.

4MP Dual Light Dome Camera - 30Mtr. Features 1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters) Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream Support Built-in Mic, Built-in speaker 3.6mm fixed Lens WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67 Specifications Image Sensor: 1/2.8 Effective Pixels: 2688 (H) × 1520 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s RAM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom ROM: 128 MB Gain Control (AGC): Auto/Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Lens Mount: M12 Close Focus Distance: 1.5 m DORI Distance: 78.0 m (Detect), 31.2 m (Observe), 15.6 m (Recognize), 7.8 m (Identify) Lens: 3.6mm fixed Lens S/N Ratio: >58dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Day/Night: Auto(ICR)/Color/B/W Angle of view: H: 78°, V: 42°, D: 92° IR Number: 1 IR LED, 1 Warm light IR: IR Range of 30 Mtr. Warm Light: Warm Light Range of 30 Mtr. Smart Illumination: Support Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Resolution: 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Stream Capability: Triple stream Frame Rate: Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Video Format: PAL/NTSC ROI: Support (4 areas) Audio: Built-in Mic Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC OSD: Camera title, Date & Time Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps SDK and API: Support User/ Host: 6 (Total bandwidth: 48 M) IMD (Intelligent motion detection): Support the classification and accurate detection of human and vehicle Mirror Function: Support IR Control: Auto, Manual Browser: IE, Chrome, Firefox Smart IR: Support Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast Ethernet: RJ-45 (10/100 Base-T) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Iris Control: Fixed Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.8 W (12 VDC); 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker) Weatherproof Standard: IP67 Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95%(RH), non-condensing Dimension: 100.9 mm × 109.9 mm Weight: 320g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
