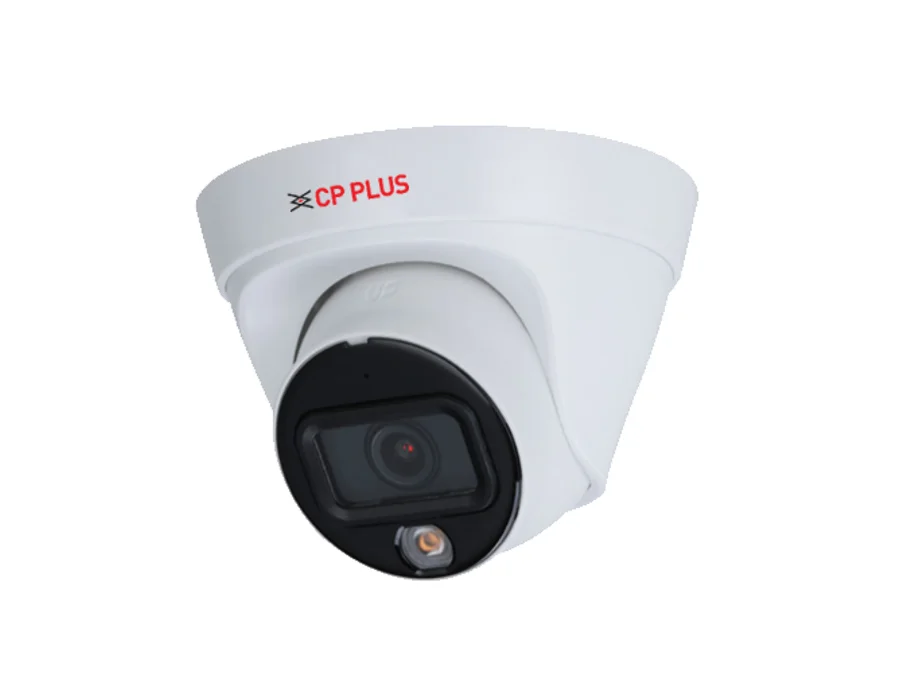

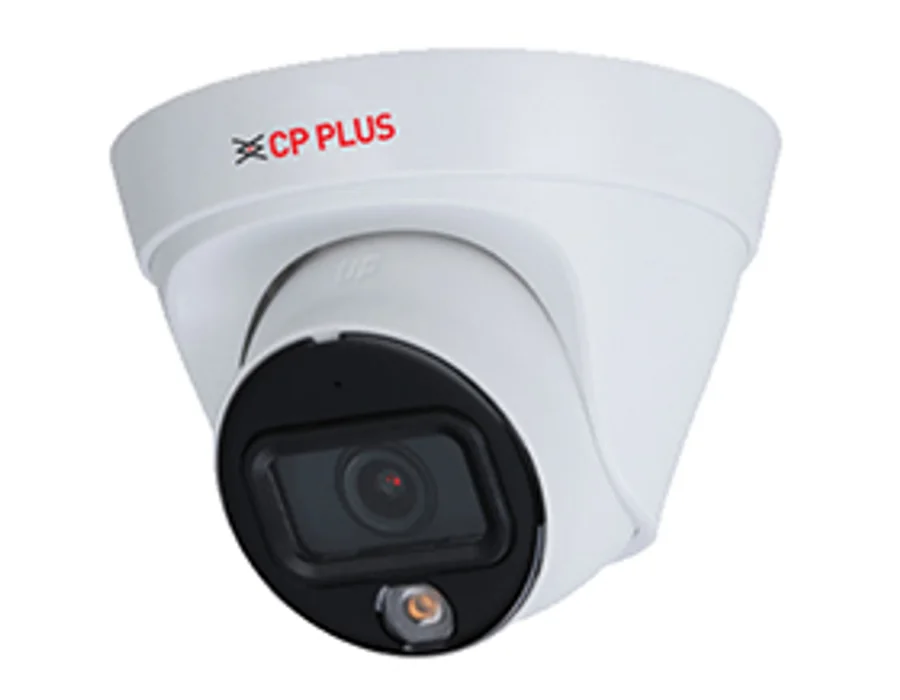

CP Plus CP-UNC-DA61L3C-LQ – 6MP Dual Light Dome Camera - 30Mtr.

6MP Dual Light Dome Camera - 30Mtr. Features 1/2.7" 6MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 6MP (3288 x 1850/ 3200 x 1800)@1-20fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream DWDR, Day/Night(ICR), 2D NR, 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 30 Mtr., Warm Light Range of 30 Mtr. 3.6mm Lens Support Built-in Mic, PoE, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.7" 6MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 3200 (H) × 1800 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 256 MB ROM: 128 MB DORI Distance: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Gain Control (AGC): Auto/Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Lens Mount: M12 Close Focus Distance: 1.7 m Lens: 3.6mm Lens S/N Ratio: >56dB IR Number: 1 (Multi-core (IR + warm) light) IR: IR Range of 30 Mtr. Warm Light: Warm Light Range of 30 Mtr. Angle of View: H: 91°, V: 46°, D: 110° Back Light Compensation: BLC/ HLC/ DWDR Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Day/Night: Auto(ICR)/Color/B/W OTA (Over-The-Air): Support Mirror Function: Support IR Control: Auto, Manual Audio: Built-in Mic stream Capability: Triple stream Frame Rate: Main stream: 6MP (3288 x 1850/ 3200 x 1800)@1-20fps, 4MP (2880 x 1620)@1-20fps/ (2688 ; x 1520)@1-25/30fps, 3MP (2048 x 1536/ 2304 x 1296)@1-25/30fps, 2MP (1920 x ; 1080)@1-25/30fps, 1.3MP (1280 x 960)@1-25/30fps ; Sub Stream 1: D1 (704 x 480/ 704 x 576)@1-25/30fps, VGA (640 x 480)@1-25/30fps, CIF (352 ; x 240/ 352 x 288)@1-25/30fps ; Sub stream 2: D1 (704 x 480/ 704 x 576)@1-25fps, VGA (640 x 480)@1-25fps, CIF (352 x 240/ ; 352 x 288)@1-25fps ; *The sub streams max. frame rates depends on main stream frame rates Video Format: PAL/NTSC Privacy Mask: 4 areas ROI: Support (4 areas) OSD: Privacy Masking, Channel Title, Time Title, Location, Font Properties, Custom Title Smart search: Work together with CP Plus AI NVR to perform refine AI search, event extraction and merging ; to event videos Resolution: 6MP (3200 × 1800), 4MP (2880 × 1620/2688 × 1520), 3MP (2048 × 1536/2304 × 1296), 2MP ; (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × ; 480), CIF (352 × 288/352 × 240) Noise Reduction: 2D NR, 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TCP/IP, PPPoE, NFS, UPNP, ; UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast, ; TLS 1.2, 1.3, InstaOn SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Smart IR: Support IMD (Intelligent motion detection): Support the classification and accurate detection of human and vehicle Device Search Tool: IP finder Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Storage: SFTP, NAS Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio ; detection, IMD (Intelligent motion detection), Security exception Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Iris Control: Fixed Browser: IE, Chrome, Firefox, Microsoft Edge User/Host: 6 (Total bandwidth: 48 M) Weatherproof Standard: IP67 Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2 W (12 VDC), 2.9 W (PoE) ; Max. : 4 W (12 VDC), 5.3 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) Operating Temperature: –40°C to +55°C Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40°C to +55°C Storage Humidity: ≤95%(RH), non-condensing Dimension: 85.6 mm × 94.0 mm Casing: Metal + Plastic Weight: 280g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
