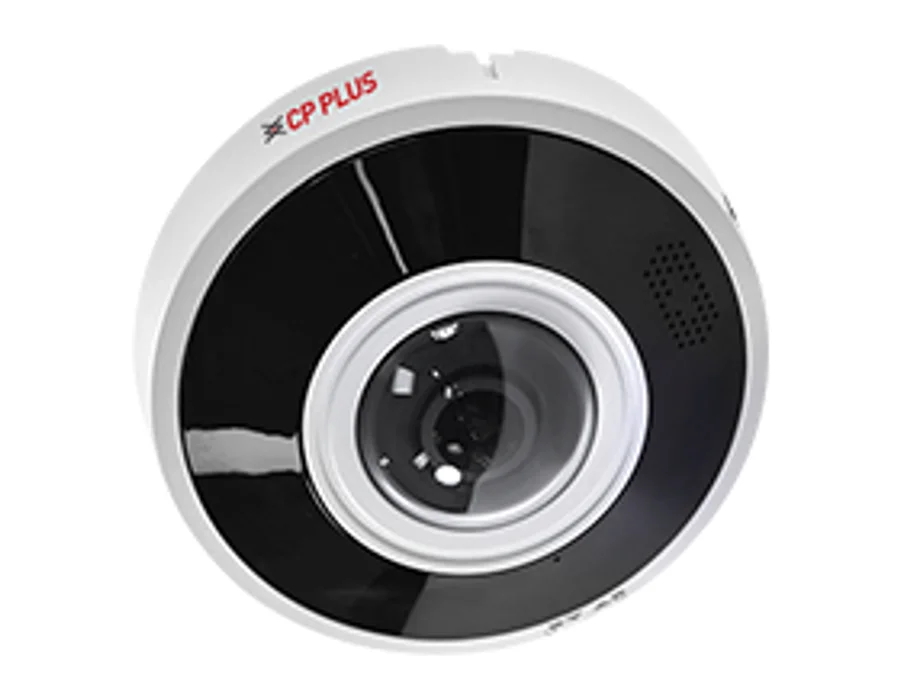

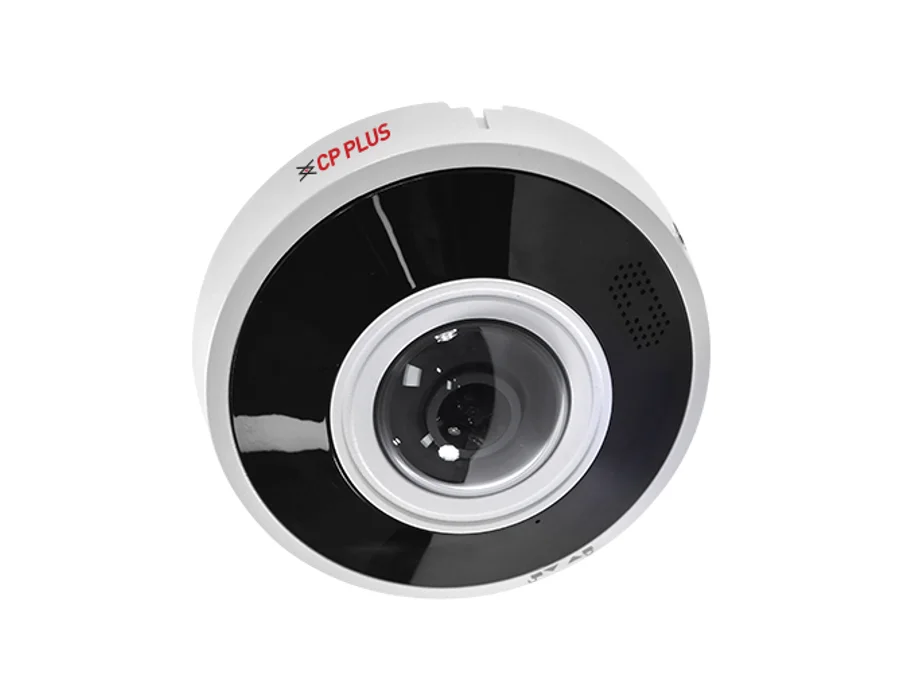

CP Plus CP-UNC-EE61L2C-VMD-Q – 6MP Network IR Fisheye Camera

6MP Network IR Fisheye Camera Features 1/2.5” 6MP PS CMOS Image Sensor (1.016 centimeters) Max. 6MP (2560 × 2560)@1–25/30 fps 1.68 mm Fixed-focal Lens Instastream, H.265, H.264, H.264H, MJPEG Support Triple Stream WDR (120dB), Day/Night (ICR), 3D NR, AWB, AGC, BLC, HLC Support Built-in Mic Support Micro SD Card, IP67, IK10, PoE Specifications Image Sensor: 1/2.5” 6MP PS CMOS Image Sensor (1.016 centimeters) Minimum Illumination: 0.001 lux@F1.8 (Color, 30 IRE), 0.0001 lux@F1.8 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 2560 (H) × 2560 (V) Shutter Speed: Auto/Manual 1/3 s–1/100000 s RAM: 1 GB ROM: 4 GB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom Lens: 1.68 mm Gain Control (AGC): Auto/Manual Lens Type: Fixed-focal Iris Control: Fixed Max Aperture: F1.8 Lens Mount: M12 Close Focus Distance: 0.3 m IR Control: Auto/Manual DORI Distance: 33.6m (Detect), 13.4m (Observe), 6.7 m (Recognize), 3.4 m (Identify) Back Light Comp.: BLC/ HLC/ WDR(120dB)/ISA Angle of View: H: 185°, V: 185°, D: 185° Stream Capability: Triple Stream S/N Ratio: >56 dB Resolution: 6MP (2560 × 2560), 4MP (2048 × 2048), 2MP (1440 × 1440), 1.6MP (1280 × 1280), 1MP (1024 × 1024), (720 × 720), SVCD (480 × 480) Noise Reduction: 2D NR, 3D NR Motion Detection: OFF/ON (4 areas, rectangular) IR: IR Range of 20 Mtr. IR Number: 3 IR LED Bit Rate Control: VBR/CBR/ABR Bit Rate: H.265: 3 kbps–16384 kbps, H.264: 3 kbps–16384 kbps Video Format: PAL/NTSC Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) Image Rotation: 0°/180° Smart Compression: Instastream/ General Frame Rate: Max Resolution in O Mode by Default Main stream: 6MP (2560 × 2560)@1–25/30 fps, Sub stream: 2MP (1440 × 1440)@1–25/30 fps, third stream: 2MP (1440 × 1440)@1–25/30 fps Resolution of 2 Split Windows in 2P Mode: Sub stream: Panoramic View and Split Window: (1920 × 1440)@1– 25/30 fps, (640 × 480)@1–25/30 fps, (320 × 240)@1– 25/30 fps, third stream: Panoramic View and Split Window: (1920 × 1440)@1– 25/30 fps, (640 × 480)@1–25/30 fps, (320 × 240)@1– 25/30 fps, Resolution of 2 Split Windows in 2R Mode: Sub stream: Panoramic View and Split Window: (2560 × 960)@1– 25/30 fps, (1280 × 480)@1–25/30 fps, (640 × 240)@1– 25/30 fps, third stream: Panoramic View and Split Window: (2560 × 960)@1– 25/30 fps, (1280 × 480)@1–25/30 fps, (640 × 240)@1– 25/30 fps, Resolution of 4 Split Windows in 4R Mode: sub stream: Panoramic View and Split Window: (1920 × 1440)@1– 25/30 fps, (640 × 480)@1–25/30 fps, (320 × 240)@1– 25/30 fps, third stream: Panoramic View and Split Window: (1920 × 1440)@1– 25/30 fps, (640 × 480)@1–25/30 fps, (320 × 240)@1– 25/30 fps Mirror Function: Support Privacy Mask: 4 Mosaics + 4 color blocks Audio: Built-in dual Mic Built-in Speaker: Support EPTZ: Support Day/Night: Auto(ICR)/Color/B/W Alarm Event: No SD card, Low SD card space, SD card error, Network disconnection, IP conflict, Account Lockout, Motion Detection, Video Tampering, Scene Changing, Tripwire, Intrusion, Audio Detection, Intensity change, Voltage Detection, External Alarm, People Counting in area, Stay Detection, People counting, Abnormal number of people detection, Security exception Intelligent Scene Adaption (ISA): AI ISA Cyber Security: Video encryption, Firmware encryption, Configuration encryption, Digest, WSSE, Account lock out, Security logs, IP/MAC filtering, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution,Trusted upgrade, Session security, Security warning OSD: Camera title, Date & Time, Location, Font Properties, Picture Overlay, Custom Title Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTSPS, RTCP, RTMP, SMTP, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, Unicast, ICMP, IGMP, PPPoE, SNMP V3, ONVIF (Profile S & Profile G & Profile T), InstaOn, TLS Version 1.2 & 1.3, SSL IVS (Optional): Tripwire, Intrusion SDK and API: Support Intelligent Scene Adaption (ISA): Support Decoding Mode: Front-dewarp, Back-dewarp Display Mode: Front-dewarp (hardware decoding): 1O, 1P, 2P, 1R, 2R, 4R, 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows Heat Map: Support RS-485: 1 (baud rate range: 1200 bps–115200 bps) Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) Audio Compression: PCM, G.711a, G.711Mu, G.726, G.723, AAC Ethernet: RJ-45 (10/100 Base-T) Alarm IN: 1 channel in: wet contact, 5 mA 3–5 VDC Alarm Out: 1 channel out: wet contact, 300 mA 12 VDC Weatherproof Standard: IP67, IK10 Storage: SFTP, Mirco SD card (Max. 512GB) User/Host: 20 users Browser: IE: IE11, Chrome, Firefox Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC, 1 A, PoE (802.3af) Power Consumption: Basic: 1.4 W (12 VDC), 2.6 W (PoE), Max.: 8.1 W (12 VDC), 10.1 W (PoE) (ICR switch + IR intensity) Dual Power Backup: When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. Operating Temperature: –30 °C to +60 °C (–22°F to +140 °F) Operating Humidity: ≤95% RH, non-condensing Storage Temperature: –30 °C to +60 °C (–22 °F to +140°F) Storage Humidity: ≤95% (RH), non-condensing Casing: Metal Dimensions: Φ122 mm × 53.3 mm Weight: 460g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
