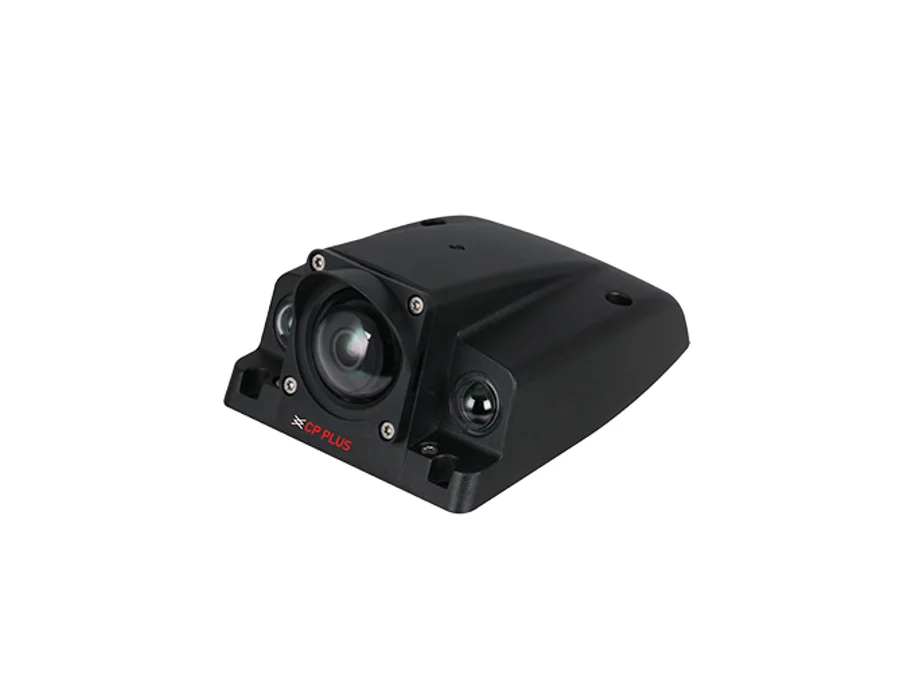

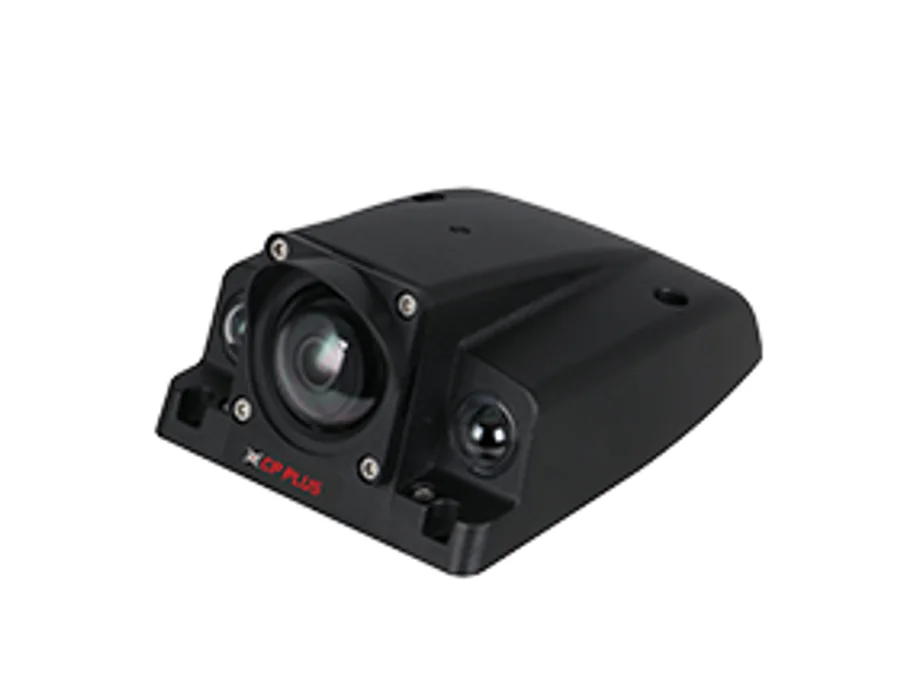

CP Plus CP-UNC-ME41L3-MDJ-Q – 4MP Network IR Mobile Camera - 30 Mtr.

4MP Network IR Mobile Camera - 30 Mtr. Features 1/2.8” 4MP PS CMOS Image Sensor (0.9071 centimeters) Max. 4MP (2688 x 1520)@45fps Instastream, H.265, H.264+, H.264 Support Triple Stream WDR(120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, HLC, BLC 3.6mm fixed Lens IR Range of 30 Mtr. Micro SD Card, IP67, IK10, PoE Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.8” 4MP PS CMOS Image Sensor (0.9071 centimeters) Minimum Illumination: 0.006 lux@F1.6 (Color, 30 IRE); 0.0006 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) Max. Resolution: 2688(H) x 1520(V) Electronic Shutter: Auto/Manual 1/3 s-1/100000 s Angle Adjustment: Pan: 0°–20˚, Tilt: 0°–15˚, Rotation: 0°–360˚ ROM: 128 MB RAM: 256 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Custom Area DORI Distance: 77.8 Mtr. (Detect), 31.1 Mtr.(Observe), 15.6 Mtr.(Recognize), 7.8 Mtr(Identify) Gain Control(AGC): Auto/Manual Lens Type: Fixed-focal Max. Aperture: F1.6 Close Focus Distance: 1.5m Lens: 3.6mm fixed Lens Lens Mount: M12 Video Compression: Instastream, H.265, H.264+, H.264 Angle of view: Horizontal: 82.7°, Vertical: 45.3°, Diagonal: 96.6° Back Light Compensation: BLC/ HLC/ WDR(120dB) S/N Ratio: ＞56dB Resolution: 4MP (2688 × 1520), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 1080P (1920× 1080 ), 720p (1280 × 720), D1 (704 × 576), VGA (640 × 480), CIF (352 × 288) ,QVGA (320 × 240) Stream Capability: Triple Stream Frame Rate: Main Stream: 4MP (2688 × 1520)@45fps, 3MP (2304 × 1296)@45fps, 2MP (1920 × 1080) @45fps, 1.3MP (1280 × 960)@45fps, 720p (1280 × 720)@45fps Sub Stream 1: 2MP (1920 × 1080)@25/30fps, D1 (704 × 576)@25/30fps, VGA (640 × 480) @25/30fps, CIF (352 × 288)/ (352x240)@25/30fps Sub Stream 2: VGA (640 × 480)@25/30fps, CIF (352 × 288)/ (352x240)@25/30fps,QVGA (320 × 240)@25/30fps Noise Reduction: 3D NR Image Stabilization: EIS Day/Night: Auto(ICR)/Color/B/W Motion Detection: OFF/ON (4 areas, rectangular) Privacy Mask: Off/On (4 Area, Rectangle) ROI: Off/On (4 Zone) Bit Rate Control: CBR/VBR Bit Rate: H.265: 3- 8192Kb/s, H.264:3- 8192Kb/s Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTP, RTSP, RTCP, RTMP, 802.1x, SMTP, SFTP, DHCP, DNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NAS, PPPoE, SNMP v3, Auto Connect, TLS v1.2 and v1.3, ONVIF (Profile S, Profile G, Profile T), InstaOn Device Search Tool: IP finder OTA (Over-The-Air): Support Event Alarm: Motion Detection, Video Tampering, Scene Changing Smart IR: Support Image Rotation: 0°/90°/180°/270° IR Number: 2 IR IR: IR Range of 30 Mtr. Browser: Edge, Chrome, Firefox, Safari Mirror Function: Off/On Iris Control: Fixed IR Control: Auto, Manual Storage: SFTP, SD Card 128GB Ethernet: M12 D-Coding(10/100Base-T) IMD: Support Human/ Vehicle detection Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC and RoHS, BIS, STQC approved compliance report, IP67 & IK10, Environment, EMI EMC, MTBF certificates User/ Host: Unicast: 10 Users, Multicast: 20 Users Weatherproof Standard: IP67, IK10 Power Source: POE (802.3af) Power Consumption: < 7.1W Reset Button: Support Operating Temperature: -25°C - +70°C Operating Humidity: Less than 95% RH Storage Temperature: -40°C - +70°C Storage Humidity: Less than 95% RH Dimensions: 140.6 mm × 112.9 mm × 69.4 mm Casing: Metal Weight: 590g
