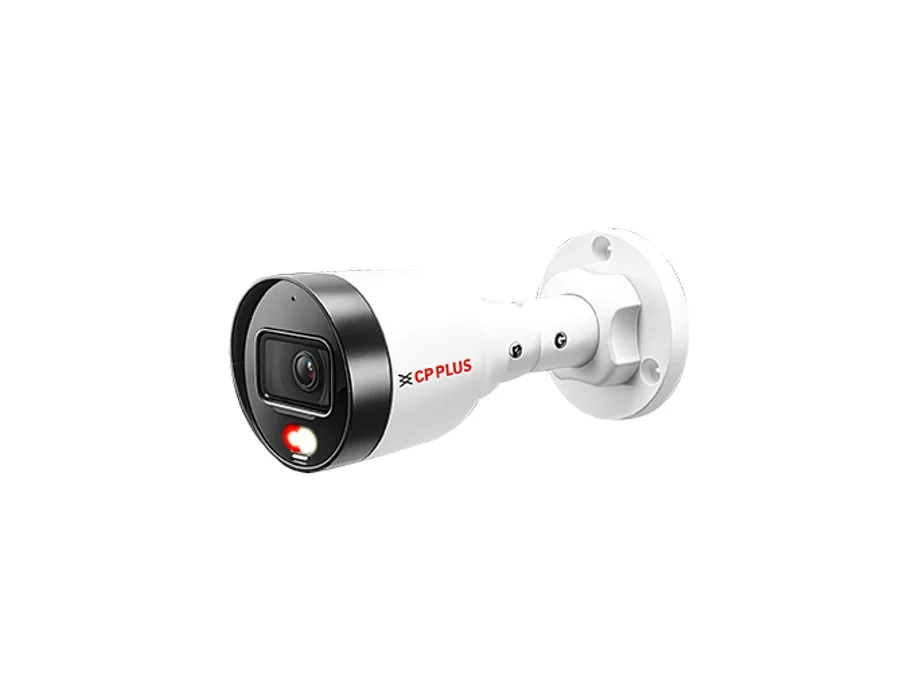

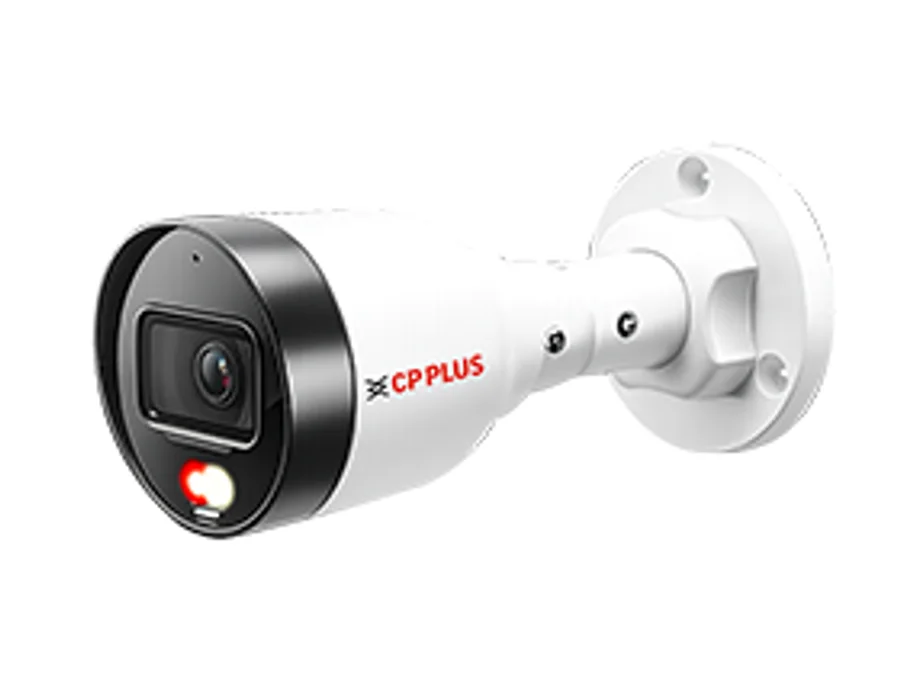

CP Plus CP-UNC-TA21L3C-LQ2 – 2MP Dual Light Bullet Camera - 30Mtr.

2MP Dual Light Bullet Camera - 30Mtr. Features 1/2.9” 2MP PS CMOS Image Sensor (0.8758 centimeter) Max. 2MP (1920 × 1080)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream 3.6mm fixed Lens DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC IR Range of 30 Mtr., Warm Light Range of 20 Mtr., PoE, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.9 Minimum Illumination: 0.006 lux@F1.6 (Color, 30 IRE), 0.0006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 1920 (H) × 1080 (V) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° RAM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom Image Setting: Brightness, Contrast, Sharpness, Saturation, Gamma Lens Type: Fixed-focal Max. Aperture: F1.6 Lens Mount: M14 IR Control: Auto, Manual Smart IR: Support IR Number: 1 Multi-core (IR + warm light) IR: IR Range of 30 Mtr. Warm Light: Warm Light Range of 20 Mtr. Day/Night: Auto(ICR)/Color/B/W Close Focus Distance: 1.6m DORI Distance: 58.9 m (Detect), 23.6 m (Observe), 11.8 m (Recognize), 5.9 m (Identify) Gain Control (AGC): Auto/Manual Lens: 3.6mm fixed Lens Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Back Light Compensation: BLC/ HLC/ DWDR S/N Ratio: >55dB Angle of view: H: 78°, V: 41°, D: 94° Stream Capability: Triple stream Frame Rate: Main Stream: 2MP (1920 x 1080)@1-25/30fps, 1.3MP (1280 x 960)@1-25/30fps, 720P (1280 x ; 720)@1-25/30fps ; Sub stream 1: 720P (1280 x 720)@1-25/30fps, D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA ; (640 x 480)@1-25/30fps, CIF (352 x 288/ 352 x 240)1-25/30fps ; Sub stream 2: D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA (640 x 480)@1-25/30fps, CIF (352 x ; 288/ 352 x 240)@1-25/30fps Resolution: 2MP (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480/ 704 x 576), VGA ; (640 x 480), CIF (352 x 240/ 352 x 288) Noise Reduction: 3D NR Motion Detection: OFF/ON Privacy Mask: 8 areas Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC OSD: Privacy Masking, Channel Title, Time Title, Text Overlay, Font Attribute, Custom Overlay Bit Rate Control: CBR/VBR Bit Rate: H.265: 24 kbps–6144 kbps ; H.264: 9 kbps–6144 kbps Protocol: IPv6, HTTP, HTTPS, TLS V1.2,1.3, TCP, ARP, UDP, RTP, RTSP, RTSPS, RTCP, RTMP, SMTP, SFTP, DHCP, DNS, QoS, NTP, Unicast, Multicast, ICMP, IGMP, SSL, PPPoE, SNMP V3, InstaOn, Auto Connect, ONVIF (Profile S, Profile T) Video Format: PAL/NTSC Event Alarm: Network Disconnection, IP conflict, Motion Detection, Video Tampering, Illegal Access, Audio Detection, Scene Changing, Security Exception, IMD(Human & Vehicle) Mirror Function: Support Image Flip: 0°/90°/180°/270 Iris Control: Fixed Browser: IE, Chrome, Firefox User/Host: 6 (Total bandwidth: 24 M) Ethernet: RJ-45 (10/100 Base-T) Storage: SFTP Weatherproof Standard: IP67 Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.9 W (12 VDC), 2.4 W (PoE) ; Max (H.265 + intelligence on + DWDR + IR/Warm light intensity): 3.9 W (12 VDC), 4.7 W ; (PoE) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95%(RH), non-condensing Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Dimensions: 162.6 mm x 70 mm x 70 mm Weight: 220g
