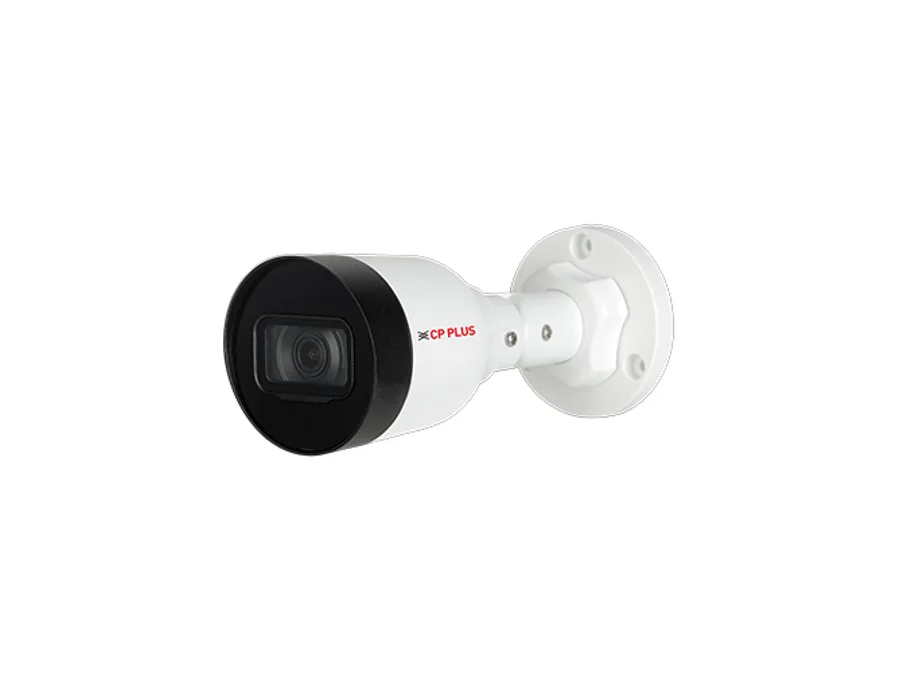

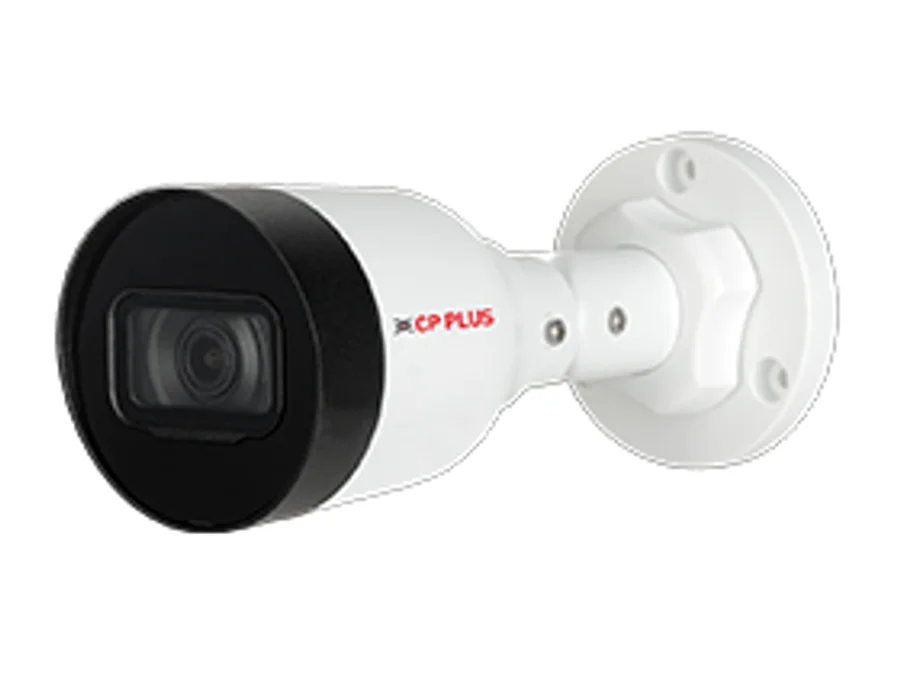

CP Plus CP-UNC-TA21L3C-Q2 – 2MP Network IR Bullet Camera - 30Mtr.

2MP Network IR Bullet Camera - 30Mtr. Features 1/2.9" 2MP PS CMOS Image Sensor (0.8758 centimeters) Max. 2MP (1920 × 1080)@1-25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream Support Built-in Mic 3.6mm fixed Lens DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 30 Mtr., PoE, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.9 Effective Pixels: 1920 (H) × 1080 (V) Minimum Illumination: 0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom ROM: 128 MB DORI Distance: 56.3 m (Detect), 22.5 m (Observe), 11.3 m (Recognize), 5.6 m (Identify) Gain Control (AGC): Auto/Manual Lens Type: Fixed-focal Max. Aperture: F2.0 Lens Mount: M14 Close Focus Distance: 0.9 m Lens: 3.6mm fixed Lens Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) S/N Ratio: >55dB IR Number: 1 IR LED IR: IR Range of 30 Mtr. IR Control: Auto, Manual Smart IR: Support Back Light Compensation: BLC/ HLC/ DWDR Day/Night: Auto(ICR)/Color/B/W Iris Control: Fixed Resolution: 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (8 areas, rectangular) stream Capability: Triple stream Frame Rate: Main Stream: 2MP (1920 x 1080)@1-25/30fps, 1.3MP (1280 x 960)@1-25/30fps, 720P (1280 ; x 720)@1-25/30fps ; Sub stream 1: 720P (1280 x 720)@1-25/30fps, D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA ; (640 x 480)@1-25/30fps, CIF (352 x 288/ 352 x 240)1-25/30fps ; Sub stream 2: D1 (704 x 576/ 704 x 480)@1-25/30fps, VGA (640 x 480)@1-25/30fps, CIF (352 ; x 288/ 352 x 240)@1-25/30fps Audio Sampling Rate: 8KHz Video Format: PAL/NTSC OSD: Privacy Masking, Channel Title, Time Title, Text Overlay, Font Attribute, Custom Overlay Audio: Built-in Mic Audio Compression: G.711a, G.711Mu, PCM, G.726, Bit Rate Control: CBR/VBR Protocol: IPv4, IPv6, HTTP, HTTPS, TLS V1.2,1.3, TCP, ARP, UDP, RTP, RTSP, RTSPS, RTCP, RTMP, SMTP, SFTP, DHCP, DNS, QoS, NTP, Unicast, Multicast, ICMP, IGMP, SSL, PPPoE, SNMP V3, InstaOn, Auto Connect, ONVIF (Profile S, Profile T) SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Event Alarm: Motion Detection, Illegal Access, Scene Changing, Video Tampering, Audio Detection, Security Exception, IMD(Human & vehicle) Image Setting: Brightness, Contrast, Sharpness, Saturation, Gamma Defog: Digital defog Storage: FTP Mirror Function: Support Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, IP/MAC filtering, 802.1x, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Device Search Tool: IP finder OTA (Over-The-Air): Support User/Host: 6 (Total bandwidth: 24 M Image Flip: 0°/90°/180°/270° Browser: IE, Chrome, Firefox Weatherproof Standard: IP67 Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.9 W (12 VDC), 2.4 W (PoE) Max (H.265 + intelligence on + DWDR+ IR intensity): 3.9 W (12 VDC), 4.7 W (PoE) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95%(RH), non-condensing Dimension: 162.6 mm × 70 mm × 70 mm Casing: Metal Weight: 220g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
