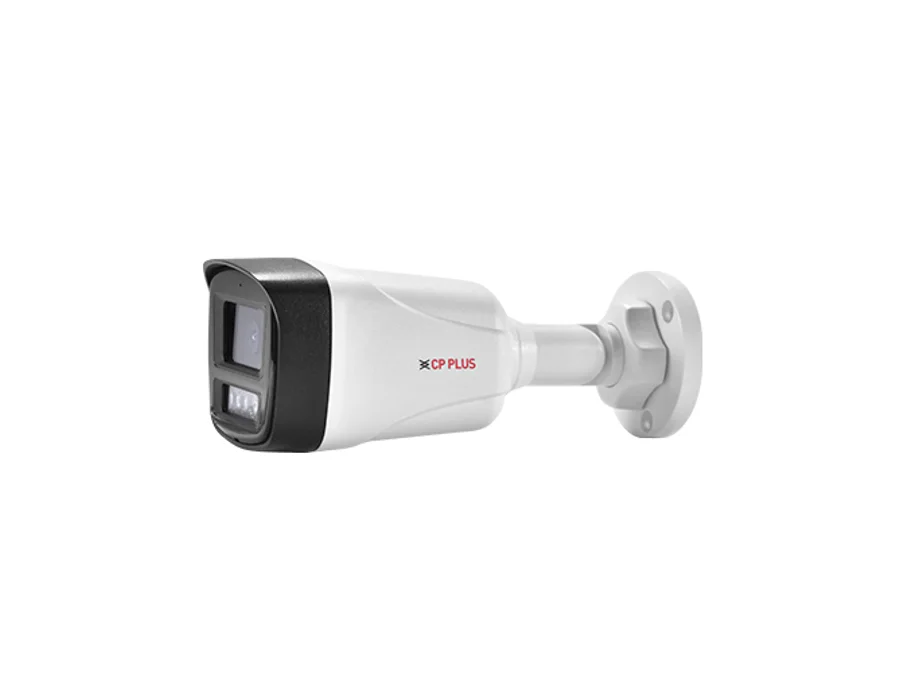

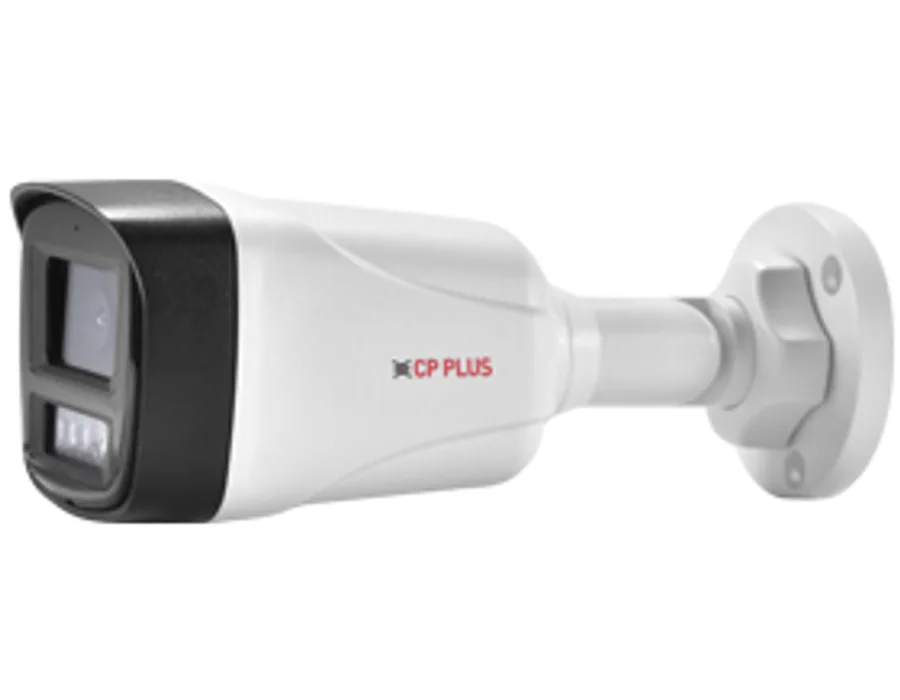

CP Plus CP-UNC-TA21L6C-Q – 2MP Network IR Bullet Camera - 60Mtr.

2MP Network IR Bullet Camera - 60Mtr. Features 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 2MP (1920 x 1080)@25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream DWDR, Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC 6mm Fixed Lens Support Built-in Mic IR Range of 60 Mtr., IP67, PoE Specifications Image Sensor: 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 1920 (H) × 1080 (V) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB Close Focus Distance: 2.6 m Gain Control(AGC): Auto, Manual Max. Aperture: F1.4 Iris Control: Fixed Lens Type: Fixed-focal Lens: 6mm Fixed Lens Lens Mount: M12 DORI Distance: 85.5 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.6 m (Identify) IR Number: 4 IR LED IR: IR Range of 60 Mtr. Back Light Compensation: BLC/ HLC/ DWDR IR Control: Auto, Manual Day/Night: Auto(ICR)/Color/B/W Angle of view: H: 54°, V: 29°, D: 63° S/N Ratio: >58dB Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) Resolution: 2MP (1920 ×1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) stream Capability: Triple stream Frame Rate: Main stream: 2MP (1920 ×1080)/1.3MP (1280 × 960)/ 720P@25/30fps Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps Video Format: PAL/NTSC Smart IR: Support Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Privacy Mask: 4 areas ROI: Support (4 Areas) Audio: Built-In Mic Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/VBR Human body Detection: Support the classification and accurate detection of human Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast OSD: Camera title, Date & Time Ethernet: RJ-45 (10/100 Base-T) SDK and API: Support Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Mirror Function: Support Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) Browser: IE, Chrome, Firefox User/Host: 6 (Total bandwidth: 36 M) Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Weatherproof Standard: IP67 Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.7 W (12 VDC); 2.5 W (PoE) Max. (H.265 + intelligence on+ DWDR + illuminator intensity): 5 W (12 VDC); 6.2W (PoE) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% Casing: Metal + Plastic Dimension: 197.9 mm × 80.2 mm × 76.2 mm Weight: 310g
