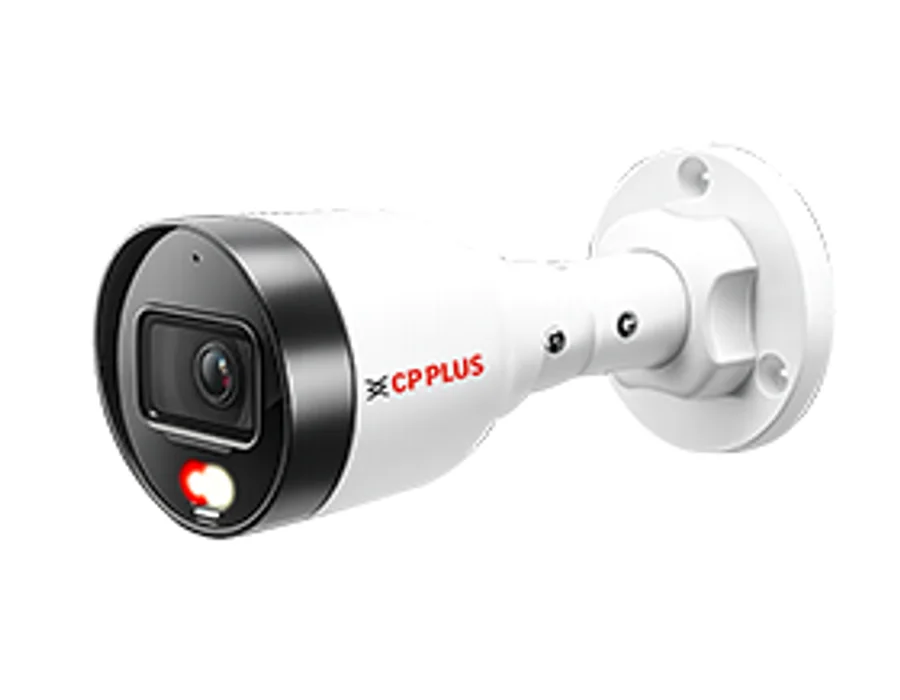

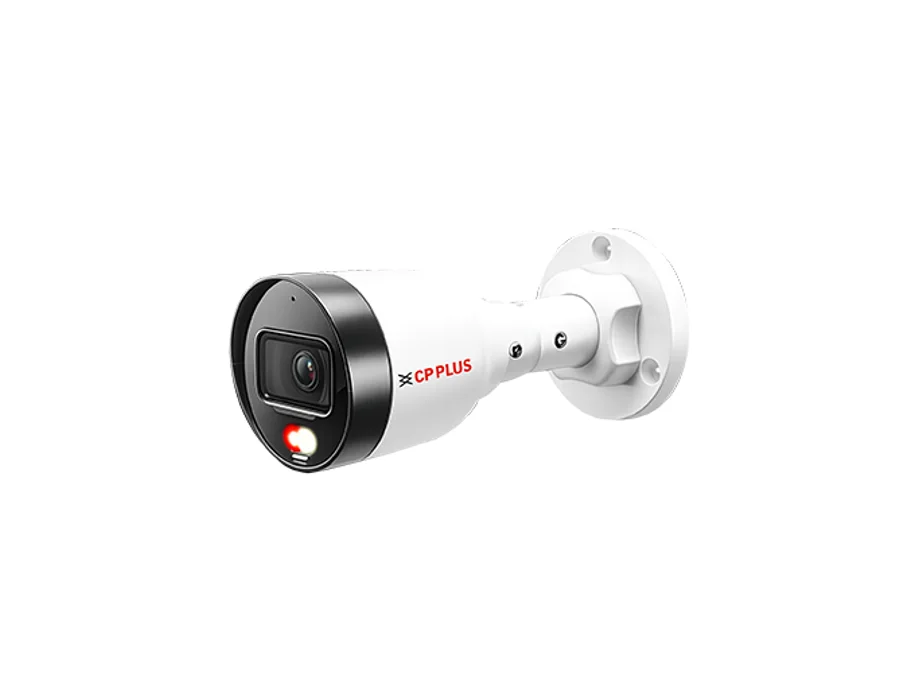

CP Plus CP-UNC-TA41L3C-D-LQ2 – 4MP Dual Light Bullet Camera - 30Mtr.

4MP Dual Light Bullet Camera - 30Mtr. Features 1/2.9" 4MP PS CMOS Image Sensor (0.8758 Centimeters) Max. 4MP (2688 x 1520)/ (2560 x 1440)@1-25fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC Support Built-in Mic 3.6mm Lens IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.9 Minimum Illumination: 0.006 lux @ F1.6 (Color, 30 IRE), 0.0006 lux @ F1.6 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 2688 (H) × 1520 (V) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° RAM: 128 MB ROM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom Image Setting: Brightness, Contrast, Sharpness, Saturation, Gamma Lens Type: Fixed-focal Max. Aperture: F1.6 Lens Mount: M12 IR Control: Auto, Manual Smart IR: Support IR Number: 1 (Multi-core (IR + warm) light) IR: IR Range of 30 Mtr. Warm Light: Warm Light Range of 30 Mtr. Close Focus Distance: 1.6 m DORI Distance: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) Gain Control (AGC): Auto/Manual Lens: 3.6mm Lens Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Back Light Compensation: BLC/ HLC/ WDR(120dB) S/N Ratio: >55dB Angle of view: H: 78°, V: 41°, D: 94° Stream Capability: Triple Stream Frame Rate: Main Stream: 4MP (2688 x 1520)/ (2560 x 1440)@1-25fps, 3MP (2304 x 1296)@1-25fps, 1080P (1920 x 1080)@1-25fps, 1.3MP (1280 x 960)@1-25fps, 720P (1280 x 720)@1-25fps Sub stream 1: 720P (1280 x 720)@1-25fps, D1 (704 x 576)@1-25fps, VGA (640 x 480)@1 25fps, CIF (352 x 288)@1-25fps Sub stream 2: D1 (704 x 576)@1-25fps, VGA (640 x 480)@1-25fps, CIF (352 x 288)@1-25fps Resolution: 4MP (2688 x 1520)/ (2560 x 1440), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x 960)@1-25fps, 720P (1280 x 720), D1 (704 x 576), VGA (640 x 480), CIF (352 x 288) Noise Reduction: 2-3D NR Motion Detection: OFF/ON (4 areas, rectangular) Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC OSD: Channel Title, Time Title, Text Overlay, Font Attribute, Custom Overlay Bit Rate Control: CBR/VBR Video Standard: PAL/NTSC Protocol: IPv4, IPv6, HTTP, HTTPS, TLS V1.2,1.3, TCP, ARP, UDP, RTP, RTSP, RTSPS, RTCP, RTMP, SMTP, SFTP, DHCP, DNS, QoS, NTP, Unicast, Multicast, ICMP, IGMP, SSL, PPPoE, SNMP V3, InstaOn, Auto Connect, ONVIF (Profile S, Profile T, Profile G**) SDK and API: Support Event Alarm: Network Disconnection, IP conflict, Motion Detection, Video Tampering, Illegal Access, Audio Detection, Scene Changing, Security Exception, IMD(Human & Vehicle) Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, Syslog, Video encryption, IP/MAC filtering, 802.1x, HTTPS, Trusted upgrade, Trusted boot, Firmware encryption Device Search Tool: IP finder Mirror Function: Support IMD: Support Both Human & vehicle Detection Audio Sampling Rate: 8 kHz, 16 kHz Image Flip: Support Iris Control: Fixed Image Rotation: 0°/90°/180°/270° Browser: Edge, IE, Chrome, Firefox User/Host: 6 (Total bandwidth: 36 M) Ethernet: RJ-45 (10/100 Base-T) Storage: FTP Weatherproof Standard: IP67 Working Voltage: 12 VDC (±30%), PoE (802.3af) Power Source: 12 VDC/PoE (802.3af) (Dual Power Backup) Power Consumption: Basic: 1.6 W (12 VDC), 2.0 W (PoE) Max. : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + WDR+ warm light intensity)* Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% (RH), non-condensing Dimensions: 162.6 mm × 70 mm × 70 mm Weight: 220 g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC, RoHS and BIS, STQC approved compliance report
