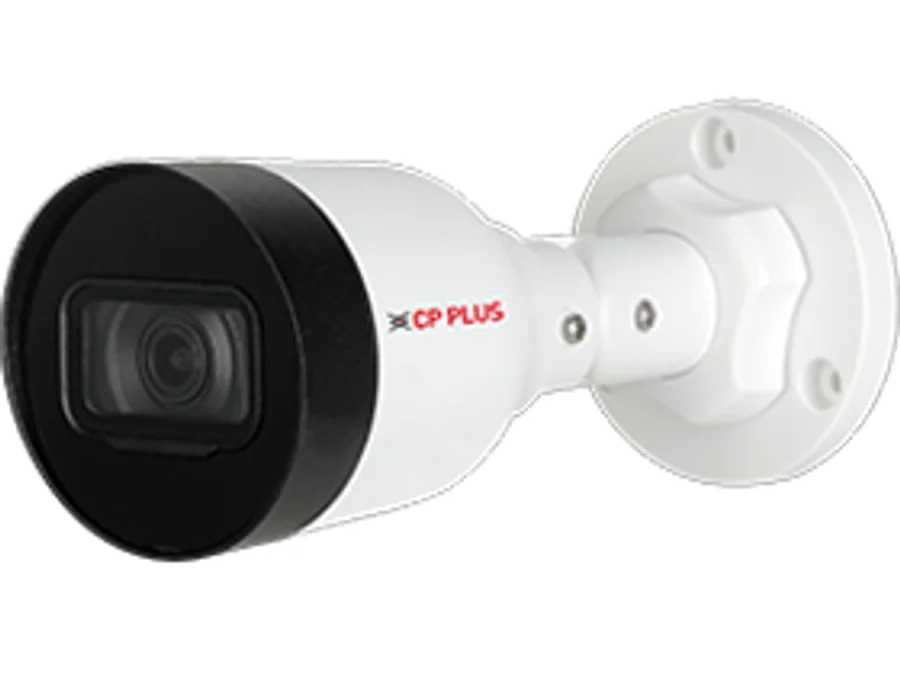

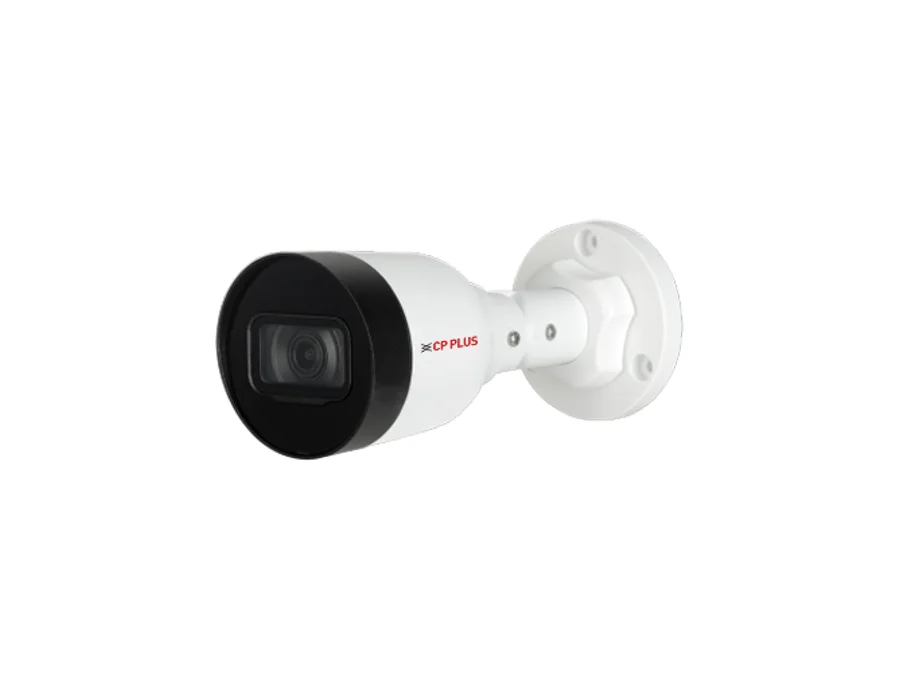

CP Plus CP-UNC-TA41L3C-D-Q2 – 4MP IR Network Bullet Camera - 30Mtr.

4MP IR Network Bullet Camera - 30Mtr. Features 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) Max. 4MP (2688 x 1520), (2560 x 1440)@1-25fps H.265, H.264H, H.264, H.264B, MJPEG Support Triple stream WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC 3.6mm Lens IR Range of 30 Mtr., PoE, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) Minimum Illumination: 0.03 lux@F2.0 (Color, 30 IRE),0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 2688 (H) × 1520 (V) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° RAM: 128 MB White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom Image Setting: Brightness, Contrast, Sharpness, Saturation, Gamma Lens Type: Metal IR Control: Auto, Manual Max. Aperture: F2 .0 Lens Mount: M12 Smart IR: Support IR Number: 1 (IR LED) IR: IR Range of 30 Mtr. Day/Night: Auto(ICR)/Color/B/W Close Focus Distance: 1.3 m DORI Distance: 76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify) Gain Control (AGC): Auto/Manual Lens: 3.6mm Lens Video Compression: H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) Back Light Compensation: BLC/ HLC/ WDR(120dB) S/N Ratio: >55dB Angle of View: H: 78°, V: 43°, D: 92° stream Capability: Triple Stream Frame Rate: Main Stream: 4MP (2688 x 1520)@1-25fps, (2560 x 1440)@1-25fps, 3MP (2304 x 1296)@1- ; 25fps, 1080P (1920 x 1080)@1-25fps, 1.3MP (1280 x 960)@1-25fps, 720P (1280 x 720)@1 -; 25fps ; Sub stream 1: 720P (1280 x 720)@1-25fps, D1 (704 x 576)@1-25fps, VGA (640 x 480)@1-; 25fps, CIF (352 x 288)@1-25fps ; Sub stream 2: D1 (704 x 576)@1-25fps, VGA (640 x 480)@1-25fps, CIF (352 x 288)@1-25fps Resolution: 4MP (2688 x 1520), (2560 x 1440), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x ; 960)@1-25fps, 720P (1280 x 720), D1 (704 x 576), VGA (640 x 480), CIF (352 x 288) Noise Reduction: 3D NR Privacy Mask: 8 areas Audio Compression: G.711a, G.711Mu, PCM, G.726, OSD: Channel Title, Time Title, Text Overlay, Font Attribute, Custom Overlay Bit Rate Control: CBR/VBR Bit Rate: H.265: 3 kbps–6144 kbps, H.264: 8 kbps–6144 kbps Protocol: IPv4, IPv6, HTTP, HTTPS, TCP, ARP, UDP, RTP, RTSP, RTSPS, RTCP, RTMP, SMTP, SFTP, DHCP, ; DNS, QoS, NTP, Multicast, ICMP, IGMP, SSL, PPPoE, SNMP V3, InstaOn, Auto Connect, ONVIF ; (Profile S, Profile T) Video Standard: PAL Cyber Security: AES 256-bit Encryption, Configuration encryption, Trusted execution, Digest, Security logs, ; WSSE, Account lockout, Syslog, Video encryption, 802.1x, Allow list/Block list, HTTPS, Trusted ; upgrade, Trusted boot, Firmware encryption Image Flip: Support Iris Control: Fixed Image Rotation: 0°/90°/180°/270° Browser: Browser User/Host: 6 (Total bandwidth: 24 M) Ethernet: RJ-45 (10/100 Base-T) Storage: FTP Weatherproof Standard: IP67 Working Voltage: 12 VDC (±30%); Ethernet Port (PoE) (802.3af) Power Source: 12 VDC/Ethernet Port (PoE) (802.3af) Power Consumption: Basic: 2.5 W (12 VDC), 3.3 W (PoE), Max. (ICR + H.265 + max. resolution + main stream + IR ; intensity + WDR + IVS): 4.2 W (12 VDC), 5.1 W (PoE) Operating Temperature: -40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Humidity: ≤95% (RH), non-condensing Dimension: 162.6 mm × 70 mm × 70 mm Weight: 220 g Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, ; FCC, RoHS and BIS, STQC approved compliance report

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
