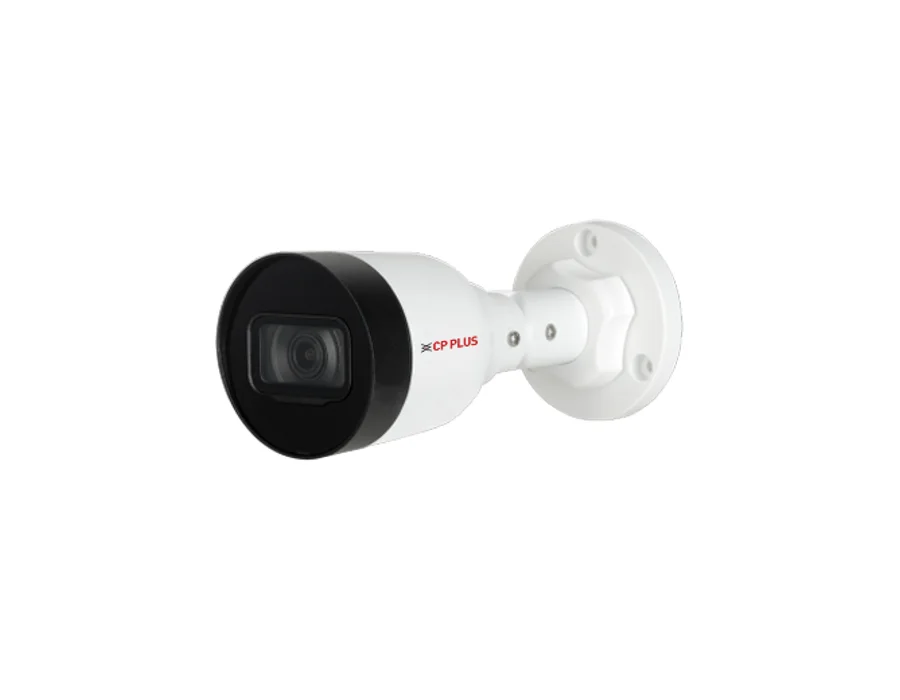

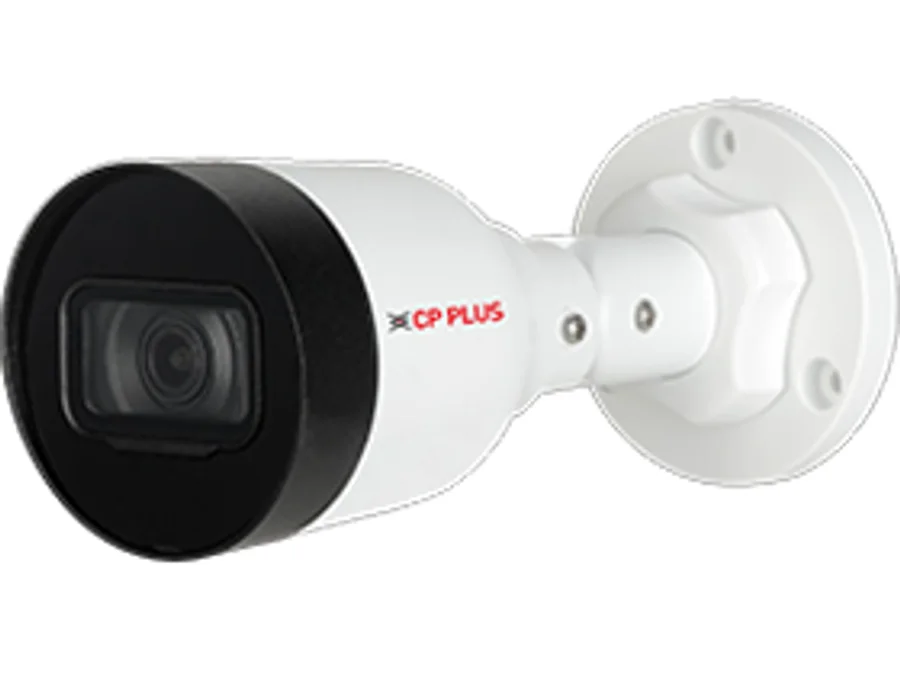

CP Plus CP-UNC-TA41L3C-Q – 4MP Network IR Bullet Camera - 30Mtr.

4MP Network IR Bullet Camera - 30Mtr. Features 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream DWDR, Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking 3.6mm fixed Lens IR Range of 30 Mtr., IP67, PoE Specifications Image Sensor: 1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) Effective Pixels: 2688(H) × 1520(V) Minimum Illumination: 0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB DORI Distance: 76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify) Gain Control (AGC): Auto, Manual Lens Type: Fixed-focal Max. Aperture: F2.0 Lens Mount: M12 Close Focus Distance: 1.3 m Lens: 3.6mm fixed Lens Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) S/N Ratio: >56dB Angle of View: H: 78°, V: 43°, D: 92° Back Light Compensation: BLC/ HLC/ DWDR IR: IR Range of 30 Mtr. Smart IR: Support IR Number: 1 IR LED Resolution: 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) Mirror Function: Support Iris Control: Fixed Day/Night: Auto(ICR)/Color/B/W stream Capability: Triple stream Frame Rate: Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps IR Control: Auto, Manual Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Noise Reduction: 3D NR Motion Detection: OFF/ON (8 areas, rectangular) Video Format: PAL/NTSC OSD: Camera title, Date & Time Audio Compression: G.711a, G.711Mu, PCM, G.726, Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/VBR Human body Detection: Support the classification and accurate detection of human Protocol: FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/ PoE (802.3af) Power Consumption: Basic: 1.5 W (12 VDC), 1.9 W (PoE); Max. (H.265 + intelligence on + DWDR+ IR intensity): 3.5 W (12 VDC), 4.3 W (PoE) User/Host: 6 (Total bandwidth: 36 M) Browser: IE, Chrome, Firefox Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95%(RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95%(RH), non-condensing Dimension: 162.6 mm × 70 mm × 70 mm Casing: Metal Weight: 220g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
