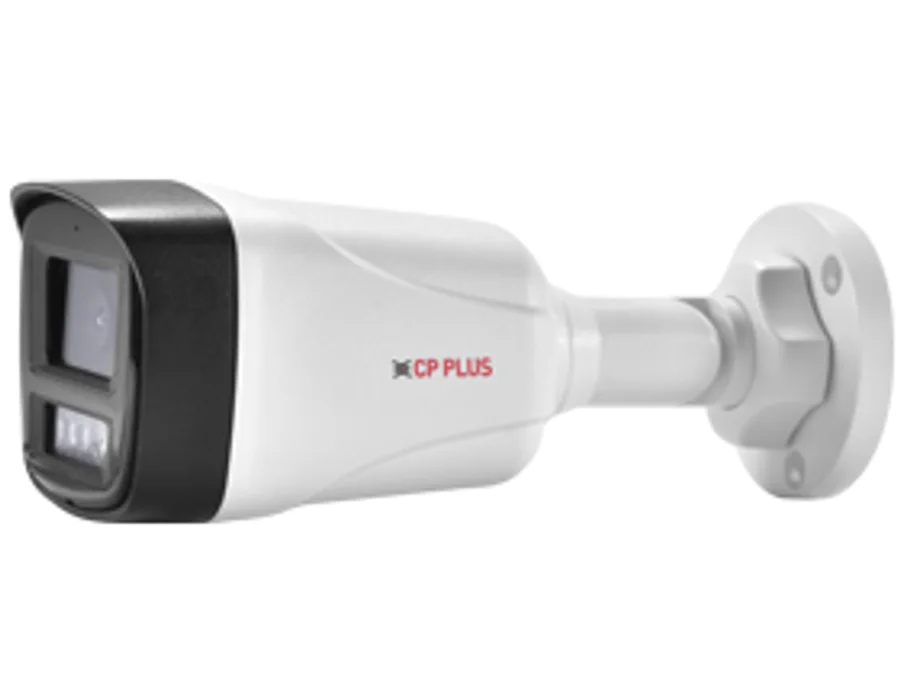

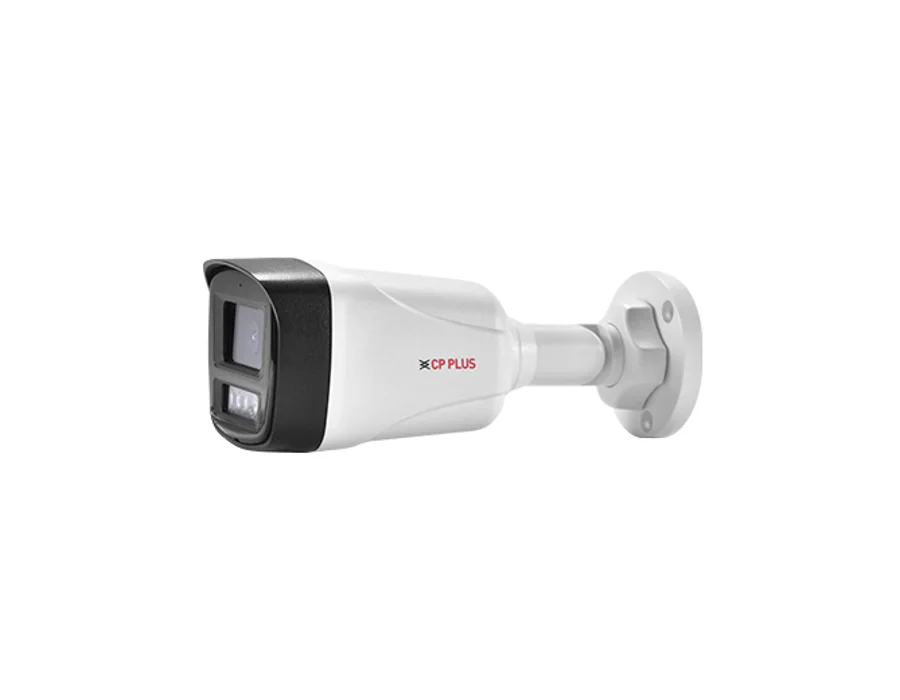

CP Plus CP-UNC-TA41L6C-D-Q – 4MP Network IR Bullet Camera - 60Mtr.

4MP Network IR Bullet Camera - 60Mtr. Features 1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters) Max. 4MP (2688 × 1520)@1-30fps/ 4MP (2560 × 1440)@1-25/30 Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream WDR(120dB), Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC 6mm Fixed Lens Support Built-in Mic IR Range of 60 Mtr., IP67, PoE Specifications Image Sensor: 1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Effective Pixels: 2688 (H) × 1520 (V) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB Close Focus Distance: 3.2 m Gain Control(AGC): Auto, Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Lens Mount: M12 DORI Distance: 124.0 m (Detect), 49.6 m (Observe), 24.8 m (Recognize), 12.4 m (Identify) Video Format: PAL/NTSC OSD: Camera title, Date & Time Lens: 6mm Fixed Lens Angle of view: H: 49°, V: 26°, D: 57° S/N Ratio: >58dB Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) Back Light Compensation: BLC/ HLC/ WDR (120dB) Day/Night: Auto(ICR)/Color/B/W IR Number: 4 IR LED IR: IR Range of 60 Mtr. Smart IR: Support Resolution: 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) stream Capability: Triple stream Frame Rate: Main stream: 4MP (2688 × 1520)@1-25/30fps, 4MP (2560 × 1440)@1-25/30 Sub stream 1: 720P( 1280 × 720) D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Motion Detection: OFF/ON (4 areas, rectangular) Privacy Mask: 4 areas ROI: Support (4 Areas) Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC Mirror Function: Support Audio: Built-In Mic Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/VBR Human body Detection: Support the classification and accurate detection of human Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast Noise Reduction: 3D NR Ethernet: RJ-45 (10/100 Base-T) SDK and API: Support Alarm Event: Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Browser: IE, Chrome, Firefox IR Control: Auto, Manual Image Rotation: 4MP only support 0°/180° 1080P & lower will support 0°/90°180°/270° Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Iris Control: Fixed User/Host: 6 (Total bandwidth: 36 M) Weatherproof Standard: IP67 Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 5.3W (12 VDC), 6.8 W (PoE) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% Casing: Metal + Plastic Dimension: 197.9 mm × 80.2 mm × 76.2 mm Weight: 310 g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
