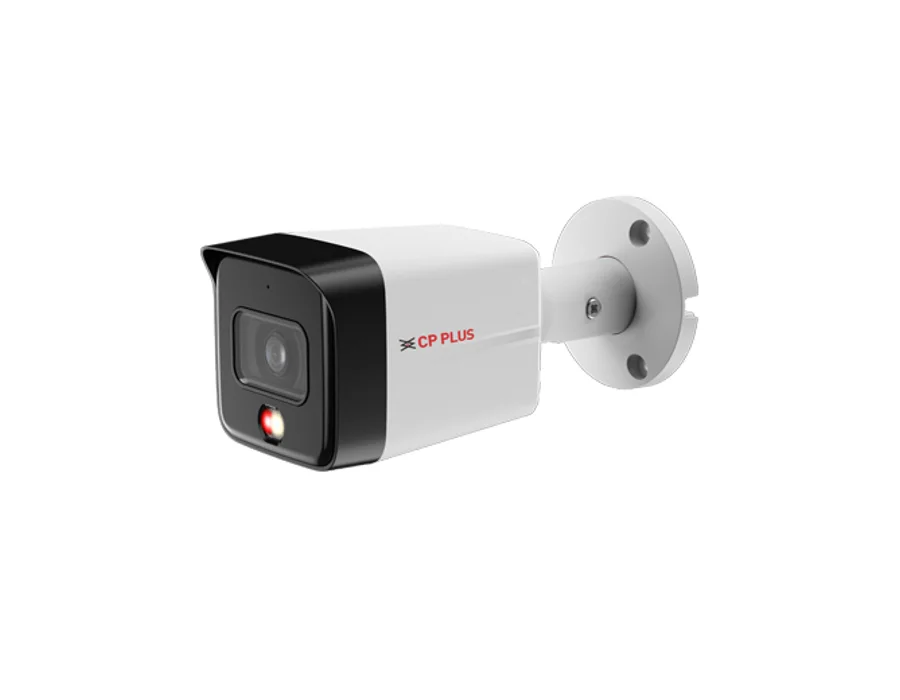

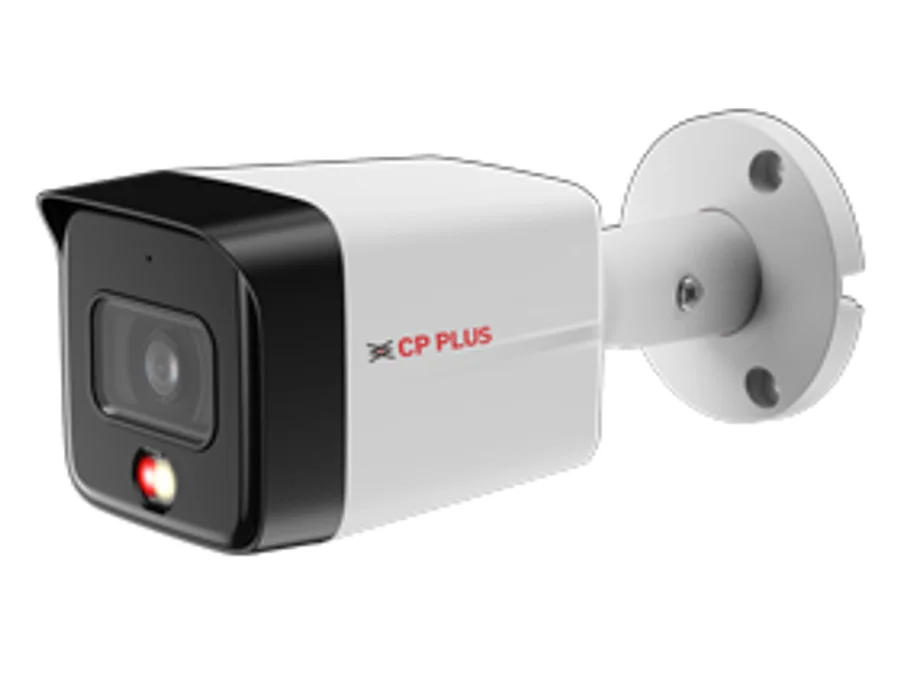

CP Plus CP-UNC-TA81L3C-LQ – 8MP Dual Light Bullet Camera - 30Mtr.

8MP Dual Light Bullet Camera - 30Mtr. Features 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Max. 8MP (3840 × 2160)@1–20 fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Triple stream DWDR, Day/Night(ICR), 2D NR, 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 30 Mtr., Warm Light Range of 30 Mtr. 3.6mm Lens Support Built-in Mic, PoE, IP67 Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro Lite, EVMS Pro Specifications Image Sensor: 1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters) Effective Pixels: 3840 (H) × 2160 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° Shutter Speed: Auto/Manual 1/3 s–1/100,000 s White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 256 MB ROM: 128 MB DORI Distance: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) Gain Control (AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Lens Mount: M12 Close Focus Distance: 1.9 m Lens: 3.6mm Lens S/N Ratio: >56dB IR Number: 1 (Multi-core (IR + warm) light) IR: IR Range of 30 Mtr. Warm Light: Warm Light Range of 30 Mtr. Angle of View: H: 86°, V: 49°, D: 100° Back Light Compensation: BLC/ HLC/ DWDR IR Control: Auto, Manual Day/Night: Auto(ICR)/Color/B/W Audio: Built-in Mic Smart IR: Support OTA (Over-The-Air): Support stream Capability: Triple stream Frame Rate: Main stream: 8MP (3840 × 2160)@1-20fps, 6MP (3072 × 2048)@1-20fps, 5MP (3072 × ; 1728)@1-20fps, 4MP (2880 × 1620/ 4MP (2688 × 1520)@1-25/30fps, 3MP (2048 × 1536/ ; 2304 × 1296)@1-25/30fps, 2MP (1920 × 1080)@1-25/30fps, 1.3MP (1280 × 960)@1-25/30fps,; 720p (1280 × 720)@1-25/30fps ; Sub Stream 1: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480)@1-25/30fps, CIF (352 ; × 288/ 352 × 240)@1-25/30fps ; Sub stream 2: D1 (704 × 576/ 704 × 480)@1-25/30fps, VGA (640 × 480)@1-25/30fps, CIF (352 ; × 288/ 352 × 240)@1-25/30fps ; *The sub streams max. frame rates depends on main stream frame rates Video Format: PAL/NTSC Privacy Mask: 4 areas Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) Resolution: 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728), 4MP (2880 × 1620/2688 × 1520), ; 3MP (2048 × 1536/2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), ; D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 2D NR, 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Smart search: Work together with CP Plus AI NVR to perform refine AI search, event extraction and merging ; to event videos ROI: Support (4 areas) OSD: Privacy Masking, Channel Title, Time Title, Location, Font Properties, Custom Title Audio Compression: G.711a, G.711Mu, PCM, G.726, AAC Bit Rate Control: CBR/ VBR Bit Rate: H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps Protocol: SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TCP/IP, PPPoE, NFS, UPNP, ; UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast, ; TLS 1.2, 1.3, InstaOn SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Mirror Function: Support User/Host: 6 (Total bandwidth: 48 M) IMD (Intelligent motion detection): Support the classification and accurate detection of human and vehicle Storage: SFTP, NAS Device Search Tool: IP finder Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, ; WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, ; trusted boot Browser: IE, Chrome, Firefox, Microsoft Edge Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) Smart Illumination: Support Alarm Event: Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, Audio ; detection, IMD (Intelligent motion detection), Security exception Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/ PoE (802.3af) Power Consumption: Basic: 2.5 W (12 VDC), 3.5 W (PoE) ; Max.: 4.5 W (12 VDC), 5.8 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) Operating Temperature: –40°C to +55°C Operating Humidity: ≤95%(RH), non-condensing Storage Temperature: –40°C to +60°C Storage Humidity: ≤95%(RH), non-condensing Weatherproof Standard: IP67 Iris Control: Fixed Dimension: 178.60 mm × 70.0 mm × 68.30 mm Casing: Metal + Plastic Weight: 340g
