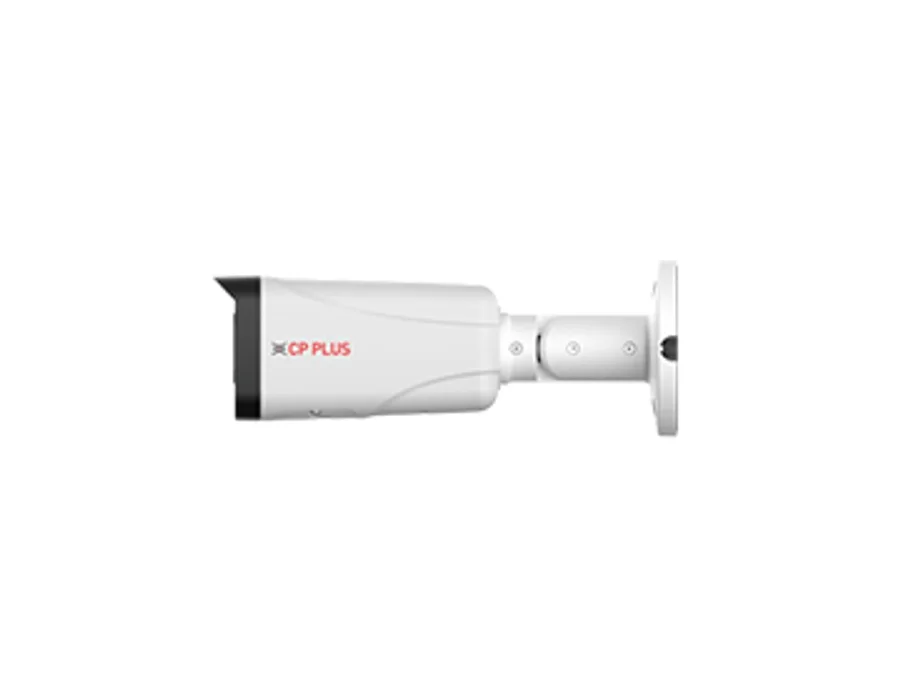

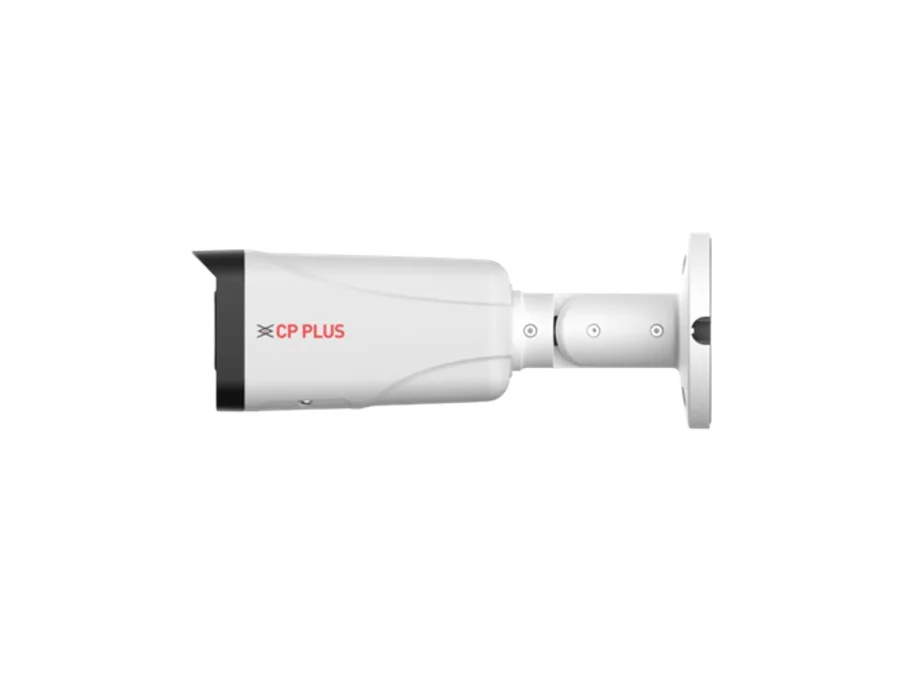

CP Plus CP-UNC-TC21L5C-VMD-LQ – 2MP Dual Light Bullet Camera - 50Mtr.

2MP Dual Light Bullet Camera - 50Mtr. Features 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Max. 2MP (1920 × 1080)@1–25/30fps Instastream, H.265, H.264, H.264H, H.264B, MJPEG Support Quad stream WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking IR Range of 50 Mtr., Warm Light Range of 50 Mtr. 3.6mm Lens (6mm Optional) Support Starlight Technology Micro SD Card, PoE, IP67, IK10 (optional) Specifications Image Sensor: 1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) Effective Pixels: 1920 (H) × 1080 (V) Minimum Illumination: 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° White Balance: Auto, Natural, Street lamp, Outdoor, Manual, Regional custom RAM: 128 MB ROM: 128 MB DORI Distance: 3.6mm: 58.9 m (Detect), 23.6 m (Observe), 11.8 m (Recognize), 5.9 m (Identify) 6mm: 124.0 m (Detect), 49.6 m (Observe), 24.8 m (Recognize), 12.4 m (Identify) Gain Control(AGC): Auto/ Manual Lens Type: Fixed-focal Max. Aperture: F1.4 Close Focus Distance: 3.6mm: 1.3 m; 6mm: 2.6 m Lens: 3.6mm fixed Lens Lens Mount: M12 S/N Ratio: >56 dB Back Light Compensation: BLC/ HLC/ WDR(120dB) Angle of view: 3.6mm: H: 84°; V: 42°; D: 101° 6mm: H: 52°; V: 28°; D: 61° Video Compression: Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) IR Number: 2 IR LED, 2 Warm Light IR: IR Range of 50 Mtr. Warm Light: Warm Light Range of 50 Mtr. Smart IR: Support Day/Night: Auto(ICR)/Color/B/W IR Control: Auto, Manual Stream Capability: Quad Stream Frame Rate: Main stream: 2MP (1920 × 1080)@1–25/30 fps Sub stream 1: 720P@1–25/30 fps Sub stream 2: D1@1–25/30 fps Sub stream 3: D1@1fps Video Format: PAL/NTSC Privacy Mask: 4 areas IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) ROI: Support (4 areas) Audio Input: 1 Channel (RCA port) Audio Output: 1 Channel (RCA port) OSD: Camera title, Date & Time Audio Compression: G.711a, G.711Mu, G.726, PCM, AAC Alarm IN: 1 Channel in: 5 mA 3–5 VDC Alarm Out: 1 Channel out: 300 mA 12 VDC Bit Rate: H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps Bit Rate Control: CBR/ VBR Protocol: SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast SDK and API: Support Ethernet: RJ-45 (10/100 Base-T) Browser: IE, Chrome, Firefox Mirror Function: Support Resolution: 2M (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Audio: Built-in Mic Smart search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Storage: SFTP, Mirco SD card (Max. 512GB) Alarm Event: No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, IMD (Intelligent motion detection), Security exception, External alarm Iris Control: Fixed Cyber Security: AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2M resolution and lower) User/Host: 6 (Total bandwidth: 36 M) Hardware Reset Point: Support Certificates: ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report Power Source: 12 VDC/PoE (802.3af) Power Consumption: Basic: 1.6 W (12 VDC), 2.1 W (PoE) Max. (H.265+ intelligence on + WDR + illuminator on): 5.8 W (12 VDC), 6.9 W (PoE) Weatherproof Standard: IP67 & IK10 (optional) Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% Dimensions: 238.5 mm × 90.7 mm × 90.7 mm Weight: 720g

Confirm the supplied items with our team.

Warranty information will be confirmed before purchase.
